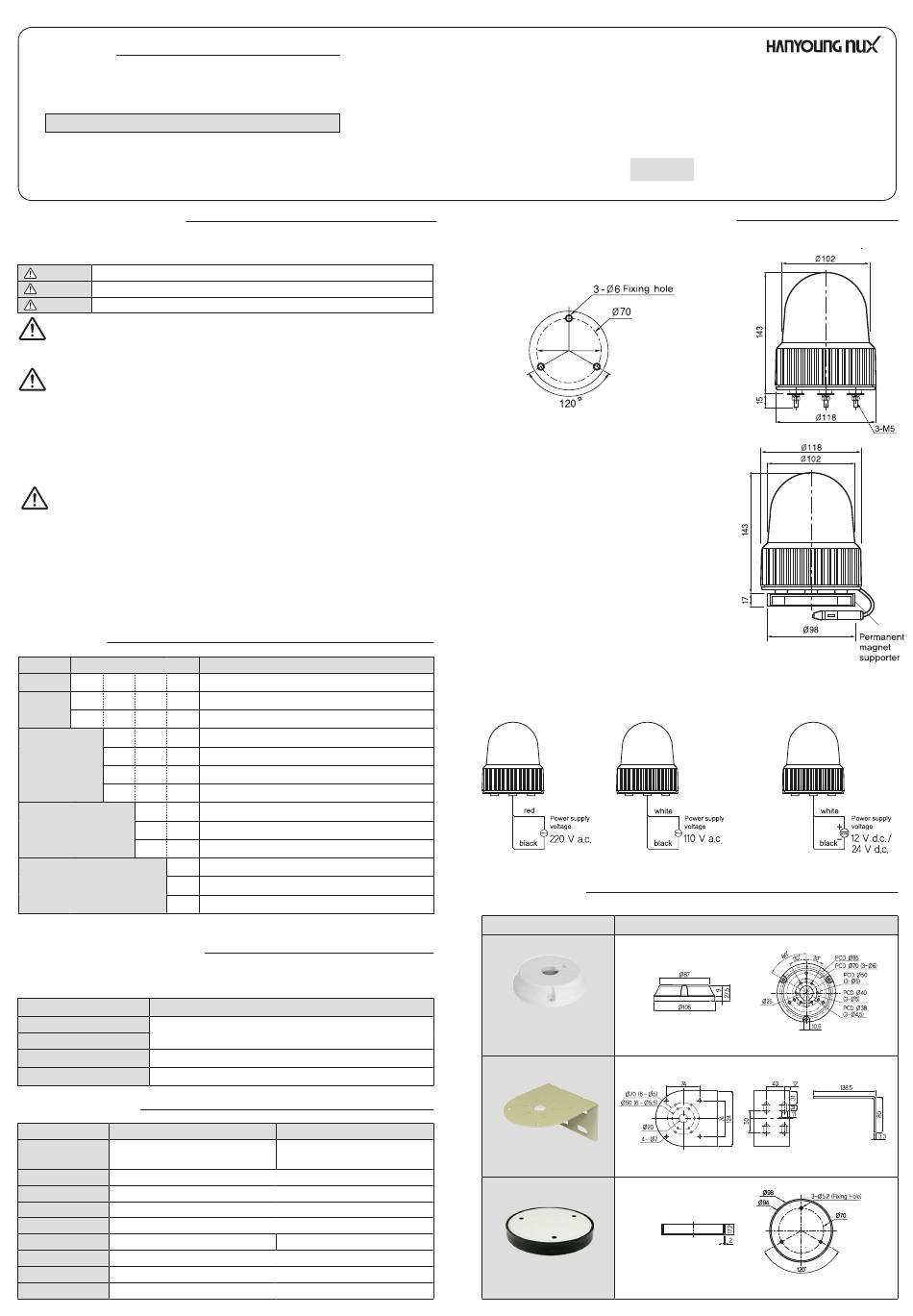

HANYOUNG NUX RLA-KB Series Instruction Manual

RLA-KB/KBB
Turn Light
INSTRUCTION MANUAL
Thank you for purchasing Hanyoung Nux products. Please read the
instruction manual carefully before using this product, and use
the product correctly. Also, please keep this manual where
you can view it any time.
Safety information
Please read the safety information carefully before the use, and use the product correctly. The alerts declared in
the manual are classified into Danger, Warning and Caution according to their importance
DANGER
Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury
WARNING
Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury
CAUTION
Indicates a potentially hazardous situation which, if not avoided, may result in minor iinjury or property damage
DANGER
• Be sure to turn off the power before wiring as there is electric shock danger.
WARNING
•If there is a possibility that a breakdown or abnormality of this product may lead to a serious
accident, install an appropriate protection circuit on the outside. and plan for accident prevention.
• Before connecting the power, make sure that the wiring is correct and then turn on the power.
Failure to do so may cause electric shocks or malfunctions.
• Be sure to use the rated voltage. Overvoltage may cause breakdowns and shorten the
product and bulb life.
CAUTION
• The contents of this manual may be changed without prior notification.
• Any use of the product other than those specified by the manufacturer may result in
personal injury or property damage.
• Wiring should be done correctly referring to this manual. Wiring arbitrarily may cause product
malfunctions.
• Do not pull the wires that come out of the product strongly, as it may cause disconnections,
short circuits, or other breakdowns.
• Excessive shocks to the product may cause breakdowns or damages.
Suffix code
Model Code
RLA- □ □ □ □
KB
Functions
KBB
D12
D24
Power voltage
A110
A220
R
Cap colors Y
G
D
Installation method M
A
※ The models with car cigar jack are only available with 12Vd.c. and 24Vd.c.
Connection diagram
The connection diagram for each power voltage is as follows.
The buzzer with built-in buzzer is connected to the power line.
Power voltage
12 Vd.c.
24 Vd.c.
110Va.c. 50/60 Hz
220Va.c. 50/60 Hz
Specification
Model RLA-KB□□
Functions Rotating continuous light
Shape
Power voltage 12Vd.c., 24Vd.c., 110Va.c.50/60 Hz/220Va.c. 50/60 Hz
Rotating speed
Light source
Buzzer volume
Material Cap : acrylic resin, Body : ABS resin
Cap color
Protection rating
Content
Turn light (Ø118)
Rotating continuous light
Rotating continuous light and buzzer
12Vd.c.
24Vd.c.
110Va.c.
220Va.c.
Red
Yellow
Green
Direct installation type
Magnet supporter
Car cigar jack and magnet supporter
Wiring color
White (+), Black (-)
Black - White ( when using 110Va.c. )
Black - Red ( when using 220Va.c. )
RLA-KBB□□
Rotating continuous light
and buzzer
Ø118 cap
Approx. 150 times/minute
LED
- approx. 90 dB
Red, Yellow, Green
IP54
Dimension and panel cutout
█ RLA-KB , RLA-KBB
□□ □□
(standard type)
█ RLA-KBD12 -A, RLA-KBD24
□
RLA-KBBD12 -A, RLA-KBBD24
□
(for vehicles)
█ AC
Accessories
Shape
STM-105 (optional)
ST-013 (optional)
MTM-98 (optional)
2
MN0111KE200109
HANYOUNGNUX CO.,LTD
28, Gilpa-ro 71beon-gil, Nam-gu, Incheon, Korea
HEAD OFFICE
TEL : +82-32-876-4697 FAX : +82-32-876-4696
http://www.hynux.com
-A,
□
-A
□
█ DC
Dimension and panel cutout
※ sold separately
