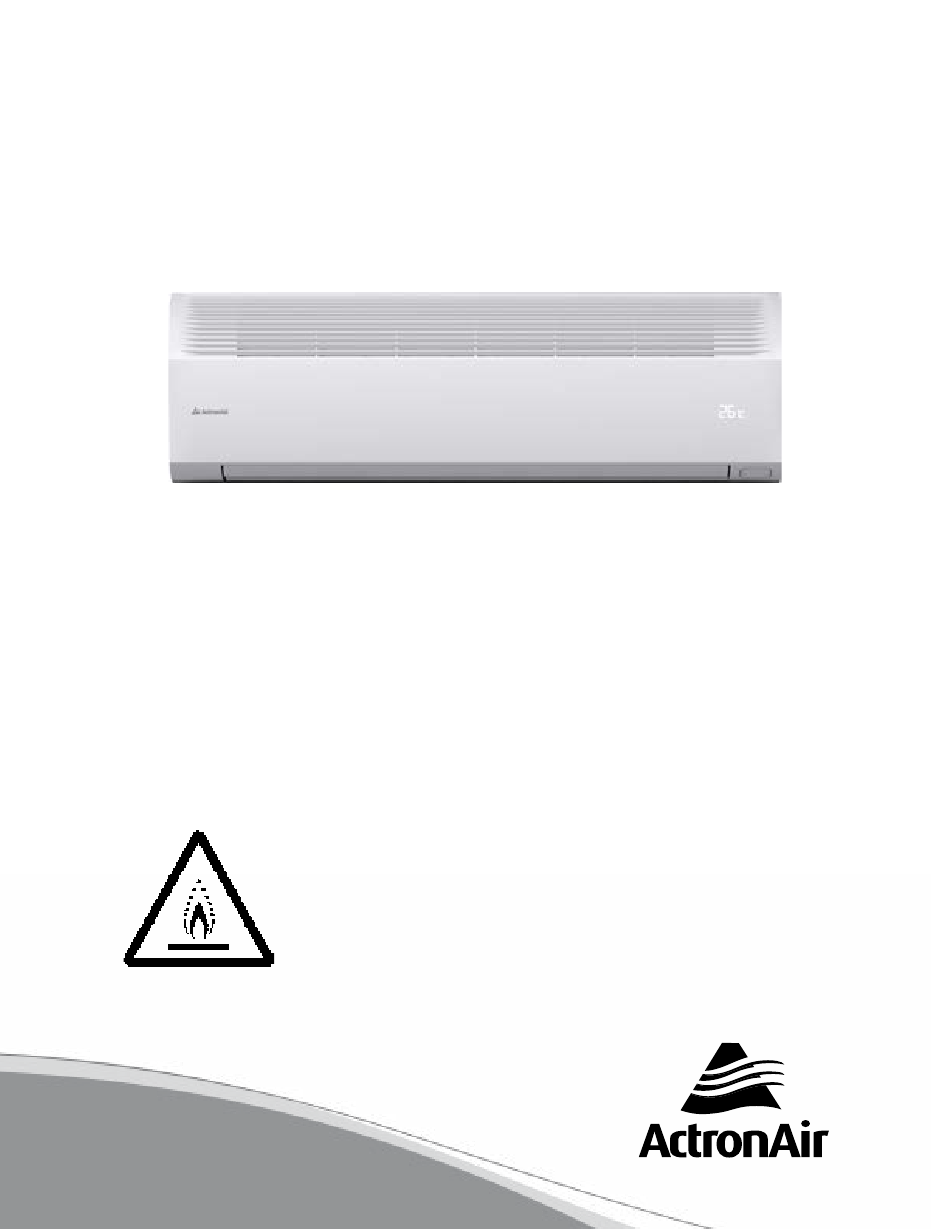

- Page 1 ECOFLEX MINI VRF R-32 SERIES Wall-Mounted Indoor Unit Owner’s Manual Model Numbers MHW-015CS MHW-035CS MHW-022CS MHW-045CS MHW-028CS MHW-056CS CAUTION: The system is charged with flammable refrigerant, safety checks are necessary to ensure that the risk of ignition is minimised.
-
Page 2: Table Of Contents
05. Cleaning and Maintenance ......................15 05.01. Safety Warning 05.02. Cleaning the Louvre and Unit Surface 05.03. Cleaning the Air Filter 05.04. Maintenance 06. Maintenance Frequency Checklist ...................18 Owner’s Manual ECOFLEX MINI VRF R-32 SERIES - HIGH WALLS Doc. No.9590-4028-07 Ver. 1 230821... -
Page 3: Preface
• Please retain this manual for future reference. Owner’s Manual ECOFLEX MINI VRF R-32 SERIES - HIGH WALLS Doc. No.9590-4028-07 Ver. 1 230821... -
Page 4: Safety Warning
Failure to observe the warning could result in minor personal injury, product or property CAUTION damage, or other unsafe situations. NOTE Useful operation and maintenance information. Warning Contents Prohibition signs Owner’s Manual ECOFLEX MINI VRF R-32 SERIES - HIGH WALLS Doc. No.9590-4028-07 Ver. 1 230821... -
Page 5: Safety Precautions
The units are partial unit air conditioners, complying with partial unit requirements of this International Standard, and must only be connected to other units that have been confirmed as complying to corresponding partial unit requirements of this International Standard. Owner’s Manual ECOFLEX MINI VRF R-32 SERIES - HIGH WALLS Doc. No.9590-4028-07 Ver. 1 230821... -
Page 6: Electric Safety Requirements
When the air conditioner is used for the first time or is in a power-off state for a long time, it needs to be connected to the power supply and warmed up for at least 12 hours before use. Owner’s Manual ECOFLEX MINI VRF R-32 SERIES - HIGH WALLS Doc. No.9590-4028-07 Ver. 1 230821... -
Page 7: Appendix
Owner’s Manual ECOFLEX MINI VRF R-32 SERIES - HIGH WALLS Doc. No.9590-4028-07 Ver. 1 230821... - Page 8 • the recovery process is supervised at all times by a competent person; • recovery equipment and cylinders conform to the appropriate standards. 4. Pump down refrigerant system, if possible. Owner’s Manual ECOFLEX MINI VRF R-32 SERIES - HIGH WALLS Doc. No.9590-4028-07 Ver. 1 230821...
- Page 9 • These units are partial unit air conditioners, complying with partial unit requirements of this International Standard, and must only be connected to other units that have been confirmed as complying to corresponding partial unit requirements of this International Standard. Owner’s Manual ECOFLEX MINI VRF R-32 SERIES - HIGH WALLS Doc. No.9590-4028-07 Ver. 1 230821...
-
Page 10: Operation Precautions
• When the air conditioner needs to be moved and re-installed, please entrust the local dealer or a professional technician to operate it. Owner’s Manual ECOFLEX MINI VRF R-32 SERIES - HIGH WALLS Doc. No.9590-4028-07 Ver. 1 230821... -
Page 11: Optimum Operation
In Cooling Mode To improve the cooling effect in the entire room, adjust the louvers of the air outlet grille horizontally. Owner’s Manual ECOFLEX MINI VRF R-32 SERIES - HIGH WALLS Doc. No.9590-4028-07 Ver. 1 230821... - Page 12 The Indoor Unit operates stably within the temperature range given in the table above. If it exceeds this normal operating range, the Indoor Unit may stop running. Owner’s Manual ECOFLEX MINI VRF R-32 SERIES - HIGH WALLS Doc. No.9590-4028-07 Ver. 1 230821...
-
Page 13: Symptoms That Are Not Faults
“Self-cleaning” sound of During self-cleaning, there may be a slight clicking sound for about 10 minutes, indicating icing that the Indoor Unit is freezing, which is normal. Owner’s Manual ECOFLEX MINI VRF R-32 SERIES - HIGH WALLS Doc. No.9590-4028-07 Ver. 1 230821... -
Page 14: Display Panel
3. The light display on the main interface can be turned on or off through the light button on the remote controller. Owner’s Manual ECOFLEX MINI VRF R-32 SERIES - HIGH WALLS Doc. No.9590-4028-07 Ver. 1 230821... -
Page 15: Cleaning And Maintenance
• If the air conditioner is used without an air filter, the accumulation of dust in the air conditioner will often cause • malfunctions due to the failure to remove dust from the indoor air. Owner’s Manual ECOFLEX MINI VRF R-32 SERIES - HIGH WALLS Doc. No.9590-4028-07 Ver. 1 230821... -
Page 16: Cleaning The Air Filter
• Non-professionals should not disassemble, replace or repair the filter. 3. Reinstall the filter in the reverse order of the steps above and put the panel back. Owner’s Manual ECOFLEX MINI VRF R-32 SERIES - HIGH WALLS Doc. No.9590-4028-07 Ver. 1 230821... -
Page 17: Maintenance
• Check the return air inlet and outlet of the outdoor Unit and Indoor Unit after long periods of use to see if they are blocked; if an inlet/outlet is blocked, clean it immediately. Owner’s Manual ECOFLEX MINI VRF R-32 SERIES - HIGH WALLS Doc. No.9590-4028-07 Ver. 1 230821... -
Page 18: Maintenance Frequency Checklist
Inspect duct works for air Duct Works Re-tape any loose ducts. gaps. * Service period for filter cleaning may vary depending on operating time and surrounding environment. Owner’s Manual ECOFLEX MINI VRF R-32 SERIES - HIGH WALLS Doc. No.9590-4028-07 Ver. 1 230821... - Page 19 THIS PAGE WAS INTENTIONALLY LEFT BLANK...
