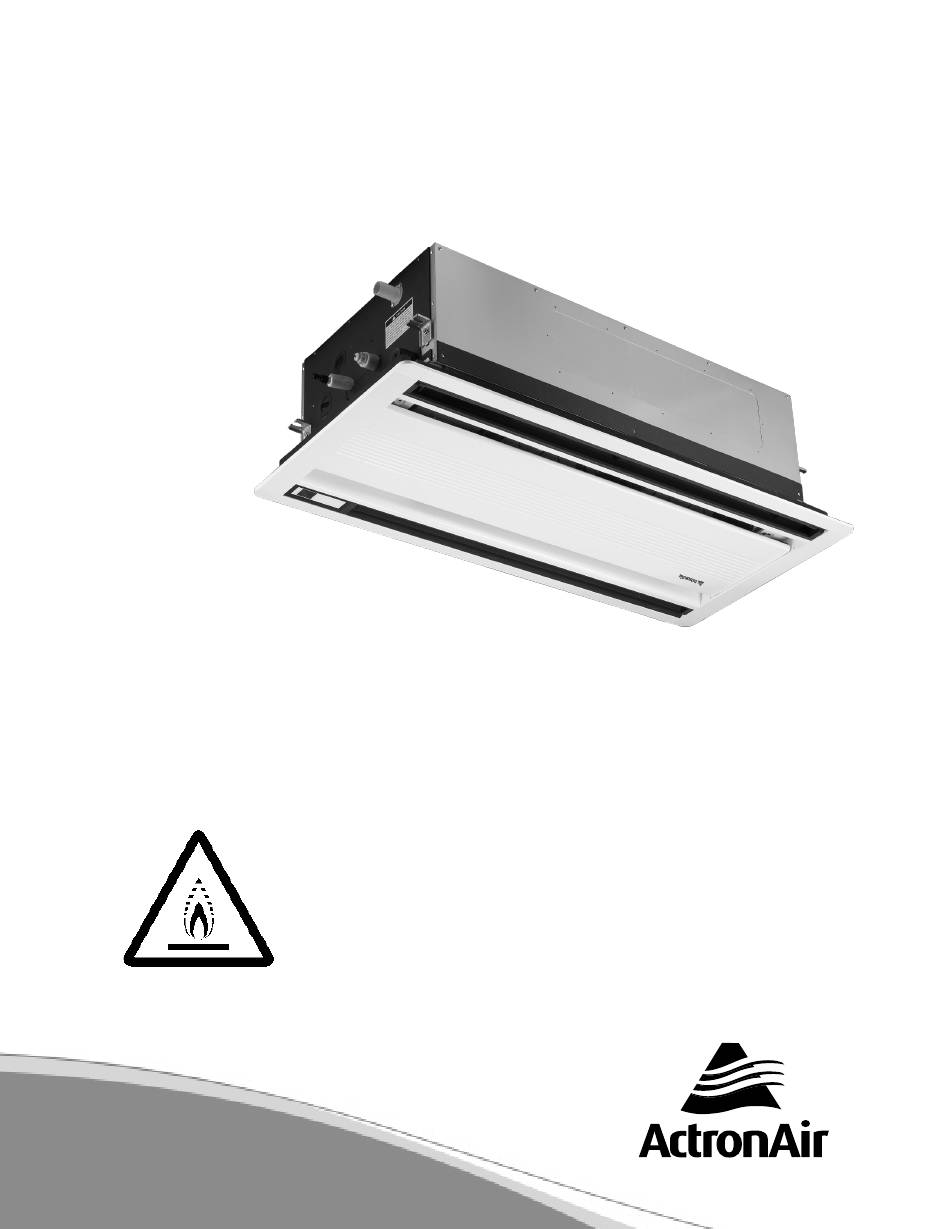

- Page 1 ECOFLEX MINI VRF R-32 SERIES Two-way Cassette Owner’s Manual Model Numbers MTC-022CS MTC-028CS MTC-036CS MTC-045CS MTC-056CS MTC-071CS CAUTION: The system is charged with flammable refrigerant, safety checks are necessary to ensure that the risk of ignition is minimised.
-
Page 2: Table Of Contents
05. Cleaning and Maintenance ......................14 05.01. Safety Warning 05.02. Cleaning the Air Filter 05.03. Cleaning Air Outlets and Exteriors Panels 05.04. Maintenance 06. Maintenance Frequency Checklist ...................18 Owner’s Manual ECOFLEX MINI VRF R-32 SERIES - 2 WAY CASSETTE Doc. No.9590-4028-03 Ver. 1 230823... -
Page 3: Preface
• Please retain this manual for future reference. Owner’s Manual ECOFLEX MINI VRF R-32 SERIES - 2 WAY CASSETTE Doc. No.9590-4028-03 Ver. 1 230823... -
Page 4: Safety Warning
No Open Fire No Open Fire No Acid or Materials Materials Alkali Materials Alkali Materials Safety Precautions Safety Precautions Owner’s Manual ECOFLEX MINI VRF R-32 SERIES - 2 WAY CASSETTE [ Danger ] [ Danger ] Doc. No.9590-4028-03 Ver. 1 230823... -
Page 5: Safety Precautions
Safety Warning this International Standard. Safety Warning Owner’s Manual ECOFLEX MINI VRF R-32 SERIES - 2 WAY CASSETTE Doc. No.9590-4028-03 Ver. 1 230823... -
Page 6: Electric Safety Requirements
The area shall be checked with an appropriate refrigerant detector prior to and during work, to ensure the technician is aware of potentially flammable atmospheres. technician is aware of potentially flammable atmospheres. Owner’s Manual ECOFLEX MINI VRF R-32 SERIES - 2 WAY CASSETTE Safety Warning Doc. No.9590-4028-03 Ver. 1 230823... -
Page 7: Appendix
• Repair and maintenance to electrical components shall include initial safety checks and component inspection procedures. Owner’s Manual ECOFLEX MINI VRF R-32 SERIES - 2 WAY CASSETTE Doc. No.9590-4028-03 Ver. 1 230823... - Page 8 • Prior to recharging the system it shall be pressure tested with OFN. Owner’s Manual ECOFLEX MINI VRF R-32 SERIES - 2 WAY CASSETTE Doc. No.9590-4028-03 Ver. 1 230823...
- Page 9 • These units are partial unit air conditioners, complying with partial unit requirements of this International Standard, and must only be connected to other units that have been confirmed as complying to corresponding partial unit requirements of this International Standard. Owner’s Manual ECOFLEX MINI VRF R-32 SERIES - 2 WAY CASSETTE Doc. No.9590-4028-03 Ver. 1 230823...
-
Page 10: Operation Precautions
Operation • When the air conditioner needs to be moved and re-installed, please entrust the local dealer or a professional technician to operate it. Owner’s Manual ECOFLEX MINI VRF R-32 SERIES - 2 WAY CASSETTE Doc. No.9590-4028-03 Ver. 1 230823... -
Page 11: Optimum Operation
Long-term air output at a 30° angle may cause condensation on the surface of the louver. It is recommended to turn on the anti-condensation function through the wired controller to alleviate this situation. Owner’s Manual ECOFLEX MINI VRF R-32 SERIES - 2 WAY CASSETTE Doc. No.9590-4028-03 Ver. 1 230823... -
Page 12: Symptoms That Are Not Faults
When the Indoor Unit detects high humidity, the air conditioner will adjust the louver angle Anti Condensation and the fan speed to prevent condensation and avoid dripping. (If a third-party panel is selected, this function is not available.) Owner’s Manual ECOFLEX MINI VRF R-32 SERIES - 2 WAY CASSETTE Doc. No.9590-4028-03 Ver. 1 230823... - Page 13 In this case, the mode setting is unavailable, and other Indoor Units operate in the same mode as the master Indoor Unit. Owner’s Manual ECOFLEX MINI VRF R-32 SERIES - 2 WAY CASSETTE Doc. No.9590-4028-03 Ver. 1 230823...
-
Page 14: Display Panel
Improper installation by yourself may result in water leakage, electric shock or fire. Do not wash the air conditioner with water; otherwise, it may cause an electric shock. Use a stable standing platform. Owner’s Manual ECOFLEX MINI VRF R-32 SERIES - 2 WAY CASSETTE Doc. No.9590-4028-03 Ver. 1 230823... -
Page 15: Cleaning The Air Filter
2. Remove the filter. NOTE Only professionals can change and disassemble the filter. Any improper operations may cause electric shock or injuries due to touching rotating parts. Owner’s Manual ECOFLEX MINI VRF R-32 SERIES - 2 WAY CASSETTE Doc. No.9590-4028-03 Ver. 1 230823... -
Page 16: Cleaning Air Outlets And Exteriors Panels
• If the air conditioner is used without an air filter, the accumulation of dust in the air conditioner will often cause malfunctions due to the failure to remove dust from the indoor air. Owner’s Manual ECOFLEX MINI VRF R-32 SERIES - 2 WAY CASSETTE Doc. No.9590-4028-03 Ver. 1 230823... -
Page 17: Maintenance
• Check the return air inlet and outlet of the outdoor Unit and Indoor Unit after long periods of use to see if they are blocked; if an inlet/outlet is blocked, clean it immediately. Owner’s Manual ECOFLEX MINI VRF R-32 SERIES - 2 WAY CASSETTE Doc. No.9590-4028-03 Ver. 1 230823... -
Page 18: Maintenance Frequency Checklist
Inspect duct works for air Duct Works Re-tape any loose ducts. gaps. * Service period for filter cleaning may vary depending on operating time and surrounding environment. Owner’s Manual ECOFLEX MINI VRF R-32 SERIES - 2 WAY CASSETTE Doc. No.9590-4028-03 Ver. 1 230823... - Page 19 THIS PAGE WAS INTENTIONALLY LEFT BLANK...
- Page 20 ©Copyright 2023 Actron Engineering Pty Limited ABN 34 002767240. ®Registered Trade Marks of Actron Engineering Pty Limited. ActronAir is constantly seeking ways to improve the design of its products. Therefore, specifications are subject to change without notice. Owner’s Manual ECOFLEX MINI VRF R-32 SERIES - 2 WAY CASSETTE...
