Product Identification
Purpose: The document is intended for use by end-of-life recyclers or treatment facilities. It provides the basic instructions for
the disassembly of FI32U products to remove components and materials requiring selective treatment.
Marketing Name/Model
Description

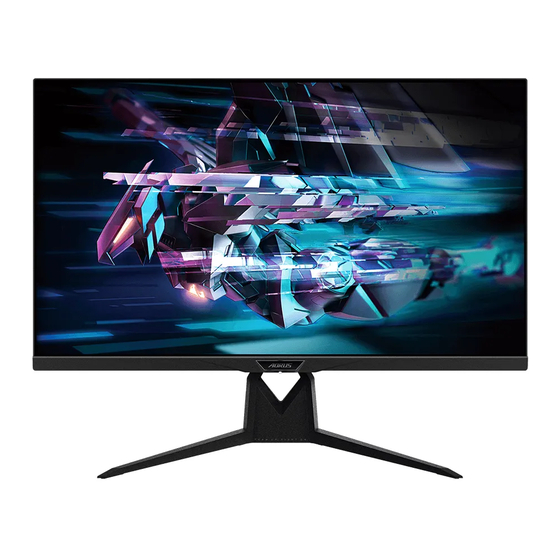

Gigabyte AORUS FI32U
LCM 32"
Copyright © 2022 AmTRAN Technology Co. , Ltd . All rights reserved.
AMTRAN
2

Advertisement

loading
Need help?

Need help?

Do you have a question about the AORUS FI32U and is the answer not in the manual?

Questions and answers

Related Manuals for Gigabyte AORUS FI32U

Summary of Contents for Gigabyte AORUS FI32U

  • Page 1 Purpose: The document is intended for use by end-of-life recyclers or treatment facilities. It provides the basic instructions for the disassembly of FI32U products to remove components and materials requiring selective treatment. Marketing Name/Model Description Gigabyte AORUS FI32U LCM 32" Copyright © 2022 AmTRAN Technology Co. , Ltd . All rights reserved. AMTRAN...

  • Page 2: Tools Required

    Tools Required List the type and size of the tools that would typically be used to disassemble the FI32U to a point where components and materials requiring selective treatment can be removed. Tools Description Toole size(if applicable) Screwdriver Disassembly tool Copyright ©...

  • Page 3: Product Disassembly Process

    Product Disassembly Process List the basic steps that should typically be followed to remove components and materials requiring selective treatment: Depending upon the complexity of the disassembly process, a graphic depicting the locations of items contained within the product which require selective treatment (with descriptions and arrows identifying locations) can be inserted below: Copyright ©...
  • Page 4 Disassembly steps 1 - Disassemble the front and rear covers Step 1-1. Step 1-2. Unscrew the screw of the rear cover. Separation the rear cover on back side and pull around out hook by disassembly tool. start Copyright © 2022 AmTRAN Technology Co. , Ltd . All rights reserved. AMTRAN...
  • Page 5 Disassembly steps 2 - Separate the front and rear covers Step 2. You need to unplug the cables plugged into the main board connector before you can separate the front and rear covers. Copyright © 2022 AmTRAN Technology Co. , Ltd . All rights reserved. AMTRAN...
  • Page 6 Disassembled into two parts 1.Rear cover (page8~13) 2.Front cover (page14~23) ▼ The following disassembly steps are divided into two parts (rear cover first) ▼ Copyright © 2022 AmTRAN Technology Co. , Ltd . All rights reserved. AMTRAN...
  • Page 7 Rear cover disassembly steps 3 - Separate the PCBA in the rear cover Step 3-1. Remove the 3 black tapes. Step 3-2. Unscrew the 5 screws of the 2 PCBA. Copyright © 2022 AmTRAN Technology Co. , Ltd . All rights reserved. AMTRAN...
  • Page 8 Rear cover disassembly steps 3 - Separate the button cap on the button PCBA Step 3-3. Remove button cap on the button PCBA . Copyright © 2022 AmTRAN Technology Co. , Ltd . All rights reserved. AMTRAN...
  • Page 9 Rear cover disassembly steps 4 - Separate the LED covers in the rear cover Step 4-1. Remove the 2 black tapes. Step 4-2. Unscrew the 8 screws of the 2 LED covers. Copyright © 2022 AmTRAN Technology Co. , Ltd . All rights reserved. AMTRAN...
  • Page 10 Rear cover disassembly steps 4 - Separate the LED PCBA in the LED cover Step 4-3. Remove the LED PCBA in the LED cover and unplug the 2 cables in the connector. Copyright © 2022 AmTRAN Technology Co. , Ltd . All rights reserved. AMTRAN...
  • Page 11 Rear cover disassembly steps 5 - Separate the wall mount BKT in the rear cover Step 5. Unscrew the 4 screws of the wall mount BKT and remove the AL tape . AL tape Copyright © 2022 AmTRAN Technology Co. , Ltd . All rights reserved. AMTRAN...
  • Page 12 Rear cover complete Copyright © 2022 AmTRAN Technology Co. , Ltd . All rights reserved. AMTRAN...
  • Page 13 Front cover disassembly steps 6 - Separate the cables connected to the main board Step 6-1. Unplug the 3 cables and 2 FFC of the connectors on the main board. Step 6-2. Remove the 3 silver tapes between the panel module and the tray. Copyright ©...
  • Page 14 Front cover disassembly steps 7 – Remove the cables and tapes in the front cover Step 7-1. Remove the 5 black tapes. Step 7-2. Unplug the 4 cables of the connectors on the panel module and the power board. Copyright © 2022 AmTRAN Technology Co. , Ltd . All rights reserved. AMTRAN...
  • Page 15 Front cover disassembly steps 8 – Separate the PCBA on the ground side of the front cover Step 8. Unscrew the 2 screws on the PCBA on the ground side. Copyright © 2022 AmTRAN Technology Co. , Ltd . All rights reserved. AMTRAN...
  • Page 16 Front cover disassembly steps 9 – Separate the shielding in the front cover Step 9. Unscrew the 5 screws of the shielding. Copyright © 2022 AmTRAN Technology Co. , Ltd . All rights reserved. AMTRAN...
  • Page 17 Front cover disassembly steps 10 – Separate the power board in the front cover Step 10. Unscrew the 5 screws of the power board. Copyright © 2022 AmTRAN Technology Co. , Ltd . All rights reserved. AMTRAN...
  • Page 18 Front cover disassembly steps 11 – Separate the main board in the front cover Step 11. Unscrew the 4 screws of the main board. Copyright © 2022 AmTRAN Technology Co. , Ltd . All rights reserved. AMTRAN...
  • Page 19 Front cover disassembly steps 12 – Separate the tray in the front cover Step 12. Unscrew the 4 screws of the tray. Copyright © 2022 AmTRAN Technology Co. , Ltd . All rights reserved. AMTRAN...
  • Page 20 Front cover disassembly steps 13 – Separate the FFC in the front cover Step 13. Remove the black tape. Step 13. Unplug the 2 FFC of the connectors on the panel module. Copyright © 2022 AmTRAN Technology Co. , Ltd . All rights reserved. AMTRAN...
  • Page 21 Front cover disassembly steps 14 – Separate the front bezel Step 14-1. Step 14-2. Unscrew the 9 screws of the front bezel. Disassemble according to the direction and order shown in the photo below. Copyright © 2022 AmTRAN Technology Co. , Ltd . All rights reserved. AMTRAN...
  • Page 22 Front cover complete Copyright © 2022 AmTRAN Technology Co. , Ltd . All rights reserved. AMTRAN...
  • Page 23 POWER BD SHIELDING (SECC 0.81t) (FI32Q) ASS'Y TAP. SCREW-TB #3.0*6.0L, Ni LIGHT COVER_L (ABS 94-HB/WHITE) (FI32Q) LED BD ASSY GIGABYTE AORUS FI32Q for L WING (PARA LIGHT) LIGHT COVER_R (ABS 94-HB/WHITE) (FI32Q) LED BD ASSY GIGABYTE AORUS FI32Q for R WING...
