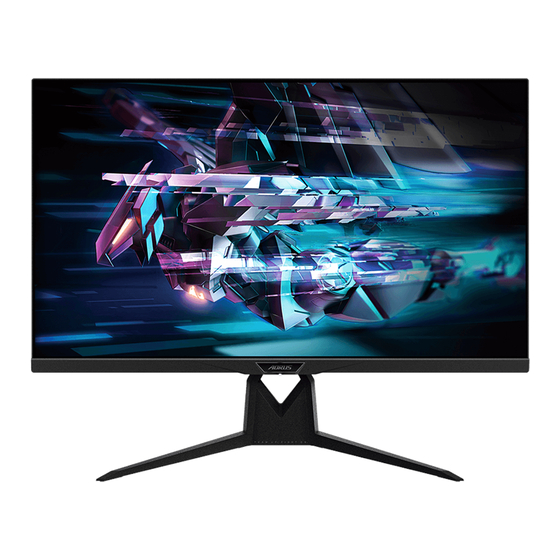

Tactical gaming monitor
Hide thumbs Also See for AORUS FI32U:
Table of Contents

Advertisement

Quick Links

Download this manual
TACTICAL
GAMING MONITOR
USER GUIDE

Advertisement

Table of Contents
loading

Related Manuals for Gigabyte AORUS FI32U

Summary of Contents for Gigabyte AORUS FI32U

  • Page 1 TACTICAL GAMING MONITOR USER GUIDE...
  • Page 2 GIGABYTE. Changes to the specications and eatures in this manual may be made by GIGABYTE without prior notice. No part o this manual may be reproduced, copied, translated, transmitted, or published in any orm or by any means without GIGABYTE’s prior written permission.

  • Page 3: SaEty InOrmation

    Supplier’s Declaration of Conformity 47 CFR § 2.1077 Compliance Information Product Name: LCD monitor Trade Name: GIGABYTE Model Number: AORUS FI32U Responsible Party – U.S. Contact Inormation: G.B.T. Inc. Address: 17358 Railroad street, City O Industry, CA91748 Tel.: 1-626-854-9338 Internet contact inormation: https://www.gigabyte.com FCC Compliance Statement: This device complies with Part 15 o...
  • Page 4 European Union (EU) RoHS (recast) Directive 2011/65/EU & the European Commission Delegated Directive (EU) 2015/863 Statement GIGABYTE products have not intended to add and sae rom hazardous substances (Cd, Pb, Hg, Cr , PBDE, PBB, DEHP, BBP, DBP and DIBP). The parts and components have been careully selected to meet RoHS...
  • Page 5 LCD Monitor User’s Manual WEEE Symbol Statement The symbol shown below is on the product or on its packaging, which indicates that this product must not be disposed o with other waste. Instead, the device should be taken to the waste collection centers or activation o the treatment, collection, recycling and disposal procedure.
  • Page 6 LCD Monitor User’s Manual CE declaração de conformidade Este produto com a marcação CE estão em conormidade com das seguintes Diretivas UE: Diretiva Baixa Tensão 2014/35/EU; Diretiva CEM 2014/30/EU; Diretiva Conceção Ecológica 2009/125/CE; Diretiva RSP 2011/65/UE e a declaração 2015/863. A conormidade com estas diretivas é...
  • Page 7 LCD Monitor User’s Manual EK megfelelőségi nyilatkozata A termék megelelnek az alábbi irányelvek és szabványok követelményeinek, azok a kiállításidőpontjában érvényes, aktuális változatában: EMC irányelv 2014/30/EU, Kiseszültségű villamos berendezésekre vonatkozó irányelv2014/35/EU, Környezetbarát tervezésről szóló irányelv 2009/125/EK, RoHS irányelv 2011/65/EU és 2015/863. Δήλωση...
  • Page 8 LCD Monitor User’s Manual China RoHS Compliance Statement 中国《废弃电器电子产品回收处理管理条例》提示性说明 为了更好地关爱及保护地球当用户不再需要此产品或产品寿命终止时 请遵守国家废弃电器电子产品回收处理相关法律法规将其交给当地具有 国家认可的回收处理资质的厂商进行回收处理。 环保使用期限 Environment-friendly Use Period 此标识指期限十年电子电气产品中含有的有害物质不会 发生外泄或突变、电子电气产品用户正常使用该电子电气产品 不会对环境造成严重 污染或对其人身、财产造成严重损害的 期限。 ٛ൰፩቏ࣷ႘፣ܿಚ‫څ‬ঽࣽ஢Ļ ቏ࣷ႘፣ ‫ؠ‬਋ಚ‫څ‬ ௜২ࢊ ޹ᢢ஍‫׀‬ ޹ᢢߗ‫׀‬౰ ල˄őţ˅ ࢢ˄ʼnŨ˅ Ლ˄ńť˅ ĩńųĬķĪ ˄őŃŃ˅ ˄őŃŅņ˅ ሠ༱‫֊௸ݢ‬ ȡ ɐ ɐ ɐ ɐ ɐ ঽඝ‫ݢ‬ᏊᏠ਋...
  • Page 9 LCD Monitor User’s Manual 攎䏦䄧宨⋩㗇⾃㭿㣗䟸估㓌㖶 Declaration of the Presence Condition of the Restricted Substances Marking 姕⁁⎵䧙烉㵚㘞栗䣢☐炻✳嘇炷✳⺷炸烉ġġAORUS FI32U Equipment name Type designaon (Type) 旸䓐䈑岒⍲℞⊾⬠䫎嘇 Restricted substances and its chemical symbols ╖⃫ ℕ₡戣 ⣂㹜倗劗 ⣂㹜Ḵ劗慂 戃 㰆 捀 Unit Hexavalent Polybrominated Polybrominated...

  • Page 10: SaEty Precautions

    LCD Monitor User’s Manual Safety Precautions Read through the ollowing Safety Precautions beore using the monitor. • Only use the accessories that are provided with the monitor or that which are recommended by the manuacturer. • Keep the plastic packaging bag or the product in a place that cannot be reached by children.

  • Page 11: Table Of Contents

    Quick Menu ........................27 Congure the Device Settings .................. 32 Appendices ..........................43 Specications ........................43 Supported Timing List ....................44 Troubleshooting ......................45 Basic Care .......................... 46 Notes on USB Charging ....................46 GIGABYTE Service Inormation ................. 46 - 11 -...

  • Page 12: Introduction

    LCD Monitor User’s Manual INTRODUCTION Unpacking Making sure the box is in the correct orientation, careully lay the box on the stable surace. Then open the cover. Remove the items rom the upper EPS oam. - 12 -...
  • Page 13 LCD Monitor User’s Manual Grab the upper EPS oam (through the openings) to remove it rom the box. Then you can remove the monitor rom the lower EPS oam. Openings - 13 -...

  • Page 14: Package Contents

    Stand Power Cable HDMI Cable USB Cable Multilingual Installation Guide AORUS FI32U USB Type-C Cable DP Cable Quick Start Guide Warranty Card Note: Please keep the packaging box and packing materials or uture transportation o the monitor. - 14 -...

  • Page 15: Product Overview

    LCD Monitor User’s Manual Product Overview Front View Power LED Control button - 15 -...
  • Page 16 LCD Monitor User’s Manual Rear View TYPE-C USB 3.0 HDMI -1 HDMI-2 TYPE-C USB 3.0 AC IN jack USB upstream port Kensington lock USB 3.0 ports (x2) HDMI ports (x2) Microphone jack DisplayPort Headphone jack USB Type-C port Line-Out port Note: HDMI, the HDMI logo and High-Denition Multimedia Interace are trademarks or registered trademarks o...

  • Page 17: Getting Started

    LCD Monitor User’s Manual GETTING STARTED Installing the Monitor Base Place the monitor on the lower EPS oam, with the screen acing down. Align and slide the hooks o the stand into the mounting slots on the rear o the screen. Align the monitor base with the stando...
  • Page 18 LCD Monitor User’s Manual Lit the screw ring and turn it clockwise to secure the monitor base in place. Note: You can also use a coin or a small fathead screwdriver to tighten the screw. Lit the monitor to an upright position and place it on a table. - 18 -...

  • Page 19: Adjusting The Viewing Angle

    LCD Monitor User’s Manual Adjusting the Viewing Angle Note: Hold the monitor base so that the screen does not topple when you make the adjustment. Adjusting the Tilt Angle Tilt the screen orward or backward to the desired viewing angle (-5˚...
  • Page 20 LCD Monitor User’s Manual Changing the Screen Orientation Raise the screen to the highest position (130mm). 130 mm Rotate the monitor (90˚ clockwise) to portrait orientation. 90° - 20 -...

  • Page 21: Installing A Wall-Mount Bracket (Optional)

    LCD Monitor User’s Manual Installing a Wall-Mount Bracket (Optional) Use only a 100 x 100 mm VESA compatible wall mount kit. Place the monitor on the lower EPS oam, with the screen acing down. Push the locking clips inward to detach the stand rom the monitor. Pull down the stand slightly to disengage the hooks.
  • Page 22 LCD Monitor User’s Manual Attach the mounting bracket to the mounting holes at the rear o the monitor. Then use the screws provided with the wall mount kit to secure the bracket in place. 100 mm 100 mm HDMI -1 HDMI -2 TYPE-C USB 3.0...

  • Page 23: Making Connections

    LCD Monitor User’s Manual Making Connections HDMI -1 HDMI-2 TYPE-C USB 3.0 7 8 9 Power cable USB cable HDMI cable Microphone cable DisplayPort cable Headphone cable USB Type-C cable Audio cable USB (A-Male to B-Male) cable Note: • To ensure that the headphone is working properly, the USB cable must also be connected to the computer via the USB upstream port.

  • Page 24: Using The Device

    LCD Monitor User’s Manual USING THE DEVICE Turning the Power On/O Power On Connect one end o the power cable to the AC IN jack at the rear o the monitor. Connect other end o the the power cable to a power outlet. Control Press the button to turn on the monitor.

  • Page 25: User ComOrt Recommendations

    LCD Monitor User’s Manual User Comfort Recommendations The ollowing are some tips or comortable viewing o your monitor: • Optimal viewing distances or monitors range rom approximately 510 mm to 760 mm (20 in to 30 in). • A general guideline is to position the monitor such that the top o...

  • Page 26: Selecting The Input Source

    LCD Monitor User’s Manual Selecting the Input Source Control Move the button right ) to enter the Input menu. Input Control Move the button up/ down ( ) to select the desired HDMI 1 input source. Then press the HDMI2 Control button to conrm.

  • Page 27: Operations

    LCD Monitor User’s Manual OPERATIONS Quick Menu Hot Key Control By deault, the button has been assigned with the specic unction. Note: To change the preset hot key unction, reer to the “Quick Switch” section on page 40. To access the hot key unction, do the ollowing: Control ) to enter the Black Equalizer • Move the...
  • Page 28 LCD Monitor User’s Manual Control ) to enter the Picture Mode • Move the button down ( menu. Control Move the button up/down ( ) to select the Picture Mode desired option and press the Control button to conrm. Standard VS mode RTS/RPG Movie...
  • Page 29 LCD Monitor User’s Manual Function Key Guide Control button to display the Main menu. Press the Settings SETTING Dashboard Game Assist DASHBOARD EXIT GAME ASSIST Exit Power O POWER OFF Control Then use the button to select the desired unction and congure the related settings.
  • Page 30 LCD Monitor User’s Manual Once the Dashboard conguration is complete, it will transer the system data to the SOC through the USB port and display the value o the selected unction(s) on the screen. CPU Temperature CPU Frequency CPU Fan Speed CPU Usage Rate GPU Temperature GPU Frequency...
  • Page 31 LCD Monitor User’s Manual • AORUS Info: Congure the FPS (First Person Shooting) game related settings. √ Select Gaming Timer to select countdown timer mode. To disable this unction, set the setting to OFF. √ Select Gaming Counter or Refresh Rate to enable/disable the gaming counter or real-time reresh rate setting.

  • Page 32: ConGure The Device Settings

    LCD Monitor User’s Manual Congure the Device Settings When the Main menu appears on the screen, move the Control button ) to enter the Settings menu. up ( Note: Use the Control button to navigate through the menu and make adjustments.
  • Page 33 LCD Monitor User’s Manual Item Description Super Sharpen the low resolution images. Resolution Display Mode Select the aspect ratio o the screen. • Full: Scale the input image to ll the screen. Ideal or 16:9 aspect images. • Aspect: Display the input image without geometric distortion lling as much o...
  • Page 34 LCD Monitor User’s Manual Picture Congure the image related settings. Brightness Contrast Sharpness Gamma Color Temp. Normal Picture Mode Standard Gaming Standard Brightness Picture VS mode Contrast Display Advance Contrast PIP/PBP RTS/RPG 6 axis Color System Movie Color Vibrance Save Settings Reader Sharpness Reset all...
  • Page 35 LCD Monitor User’s Manual Item Description 6 axis Color An advanced color adjustment that user can individually customize hue and saturation or each axis color. Color Vibrance Adjust the intensity o the more muted colors. Sharpness Adjust the sharpness o the image. Gamma Adjust the middle level o...
  • Page 36 LCD Monitor User’s Manual Display Congure the display screen related settings. Brightness Contrast Sharpness Gamma Color Temp. Normal Picture Mode Standard Gaming Input HDMI 1 Picture HDMI 2 Display DisplayPort PIP/PBP RGB Range Type-C System Overscan Save Settings Reset all Exit Move/Adjust Enter/Conrm...
  • Page 37 LCD Monitor User’s Manual Item Description RGB Range Select an appropriate RGB range setting or let the monitor to detect it automatically. Note: This option is only available or HDMI input. Overscan When this unction is enabled, it slightly enlarges the input image to hide the outermost edges o...
  • Page 38 LCD Monitor User’s Manual PIP/PBP Congure the multi-picture related settings. Brightness Contrast Sharpness Gamma Color Temp. Normal Picture Mode Standard Gaming Picture Display PIP/PBP System Save Settings Reset all Exit Move/Adjust Enter/Conrm Item Description Disable the PIP/PBP unction. Split the screen into 2 parts (main window and inset window).
  • Page 39 LCD Monitor User’s Manual System Congure the system related settings. Brightness Contrast Sharpness Gamma Color Temp. Normal Picture Mode Standard Gaming Language English Picture RGB LED 互Ṿ Display Audio 䯑Ṿ PIP/PBP OSD Settings Deutsch System Quick Switch Русский Save Settings Other Settings Français Reset all...
  • Page 40 LCD Monitor User’s Manual Item Description OSD Settings • OSD Lock: When this unction is enabled, no OSD adjustment is allowed. (continue) Note: To disable the OSD lock unction, press the Control key. When the message appears on the screen, select Yes to conrm.
  • Page 41 LCD Monitor User’s Manual Item Description Other Settings • LED Indicator: By deault, the LED indicator is set to Always ON. (continue) D Always ON: The Power LED lights white during operation and lights orange in standby mode. D Always OFF: Turn o the Power LED. D Standby ON: The Power LED lights orange in standby mode.
  • Page 42 LCD Monitor User’s Manual Save Settings Set the personalized OSD congurations or Setting1, Setting2, or Setting3. Brightness Contrast Sharpness Gamma Color Temp. Normal Picture Mode Standard Gaming Setting1 Save Picture Setting2 Load Display Setting3 PIP/PBP System Save Settings Reset all Exit Move/Adjust Enter/Conrm...

  • Page 43: Appendices

    LCD Monitor User’s Manual APPENDICES Specications Item Specications Panel Size 31.5-inch Aspect Ratio 16:9 Resolution 3840 x 2160 LED Lie 30000 hours (min.) Pixel Pitch 0.181(H) x 0.181(V) mm Brightness 350 (typ.) Contrast Ratio 1000:1 (typ.) Color Depth 1.073G Active Display area 697.31(H) x 392.23(V) Viewing Angle 178°(H) / 178°(V) Frequency...

  • Page 44: Supported Timing List

    LCD Monitor User’s Manual Supported Timing List Timing List HDMI DisplayPort/ USB Type-C 640x480@60Hz √ √ 640x480@75Hz √ √ 720x480@60Hz √ √ 720x576P@50Hz √ √ 800x600@60Hz √ √ 800x600@75Hz √ √ 1024x768@60Hz √ √ 1024x768@75Hz √ √ 1280x720@60Hz √ √ 1280x720@100Hz √...

  • Page 45: Troubleshooting

    LCD Monitor User’s Manual Troubleshooting Problem Possible Solution(s) No power • Make sure the power cable is properly connected to the power source and the monitor. • Check the cable and plug to make sure they are not broken. • Make sure the monitor is turned on. No image appears • Make sure the monitor and the computer on the screen...

  • Page 46: Basic Care

    When the Hub is connected to a PC, these devices cannot be charged using the USB cable. Vendor Device PID/VID Apple IPad PID_129A/VID_05AC Samsung Galaxy Tab2 10.1 PID_6860/VID_04E8 Samsung GALAXY TabPro PID_6860/VID_04E8 GIGABYTE Service Information More service inormation, please visit GIGABYTE ocial website: https://www.gigabyte.com/ - 46 -...
