Summary of Contents for Pickering 50-411A

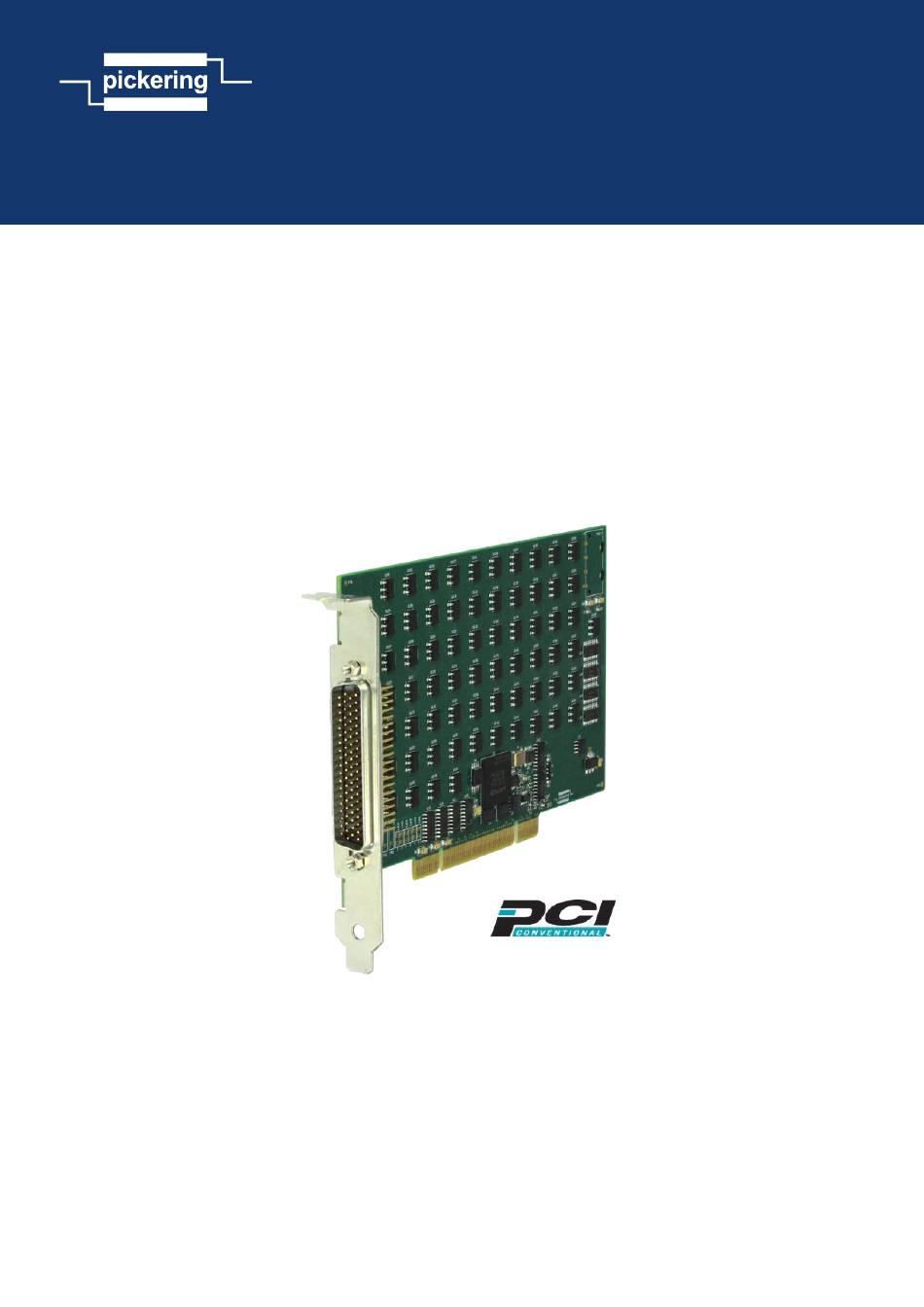

- Page 1 50-411A User Manual PCI Relay Driver Card pickeringtest.com Issue 1.1 May 2021...
- Page 2 © COPYRIGHT (2021) PICKERING INTERFACES. ALL RIGHTS RESERVED. No part of this publication may be reproduced, transmitted, transcribed, translated or stored in any form, or by any means without the written permission of Pickering Interfaces. Technical details contained within this publication are subject to change without notice.
- Page 3 Pickering Interfaces strives to fulfil all relevant environmental laws and regulations and reduce wastes and releases to the environment. Pickering Interfaces aims to design and operate products in a way that protects the environment and the health and safety of its employees, customers and the public. Pickering Interfaces endeavours to develop and manufacture products that can be produced, distributed, used and recycled, or disposed of, in a safe and environmentally friendly manner.
-
Page 4: Product Safety
If this product is heavy reference should be made to the safety instructions for provisions of lifting and moving. STATIC SENSITIVE To indicate that static sensitive devices are present and handling precautions should be followed. REED RELAY MODULE 40-110/115/120/125 RELAY DRIVER CARD 50-411A Page (IV) Page (IV) -
Page 5: Table Of Contents
Pre Operation Checks ............3.1 Hardware Installation ............3.2 Software Installation .............3.2 Testing Operation ..............3.3 Section 4 Programming Guide ..............4.1 Programming Options For Pickering PCI Cards ....4.1 Module Architecture ..............4.2 Programming The Card ............4.3 Section 5 Connector Information ..............5.1 Section 6 Trouble Shooting .................6.1 Section 7 Maintenance Information ............7.1... - Page 6 THIS PAGE INTENTIONALLY BLANK RELAY DRIVER CARD 50-411A Page (VI)
-
Page 7: Warnings And Cautions
Not to be used in safety critical circuits, refer to the Pickering Interfaces’ terms & conditions of sale. This card must not be used for the switching of Mains Circuits. For the switching of voltages up to the card’s full specification, Secondary Circuit power supplies and the Device Under Test must be... - Page 8 • For suitably equipped products in the event of an emergency press the red “emergency stop” button situated on the front of the unit. RELAY DRIVER CARD 50-411A Page (VIII) PCI REED RELAY CARD 50-110 / 115 / 120 / 125...
-
Page 9: Technical Specification
Users need to simply connect a positive voltage source to one terminal of a relay coil and the other terminal to an output of the 50-411A. Each output is capable of sinking up to 1 A of continuous current. - Page 10 Ground Return Maximum Output Voltage: 60 V* (recommended max continuous voltage). Using the 50-411A to drive an external relay. Local power Output Protection: Limits at 1.3 A nominal supply decoupling for the relay and coil suppression...
- Page 11 Product Order Codes 64-Channel Relay Driver Card 50-411A-001 Product Customization Pickering PCI cards are designed and manufactured on our own flexible manufacturing lines, giving complete product control and enabling simple customization to meet very specific requirements. All customized products are given a unique part number, fully documented and may be ordered at any time in the future.
- Page 12 To learn more, please go to: pickeringrelay.com Programming Pickering provide kernel, IVI and VISA (NI & Keysight) drivers which are compatible with all Microsoft supported versions of Windows and popular older versions. For a list of all supporting operating systems, please see: pickeringtest.com/os The VISA driver is also compatible with Real-Time Operating Systems such as LabVIEW RT.
- Page 13 To learn more, please go to: pickeringrelay.com Programming Pickering provide kernel, IVI and VISA (NI & Keysight) drivers which are compatible with all Microsoft supported versions of Windows and popular older versions. For a list of all supporting operating systems, please see: pickeringtest.com/os The VISA driver is also compatible with Real-Time Operating Systems such as LabVIEW RT.
- Page 14 SECTION 1 - TECHNICAL SPECIFICATION pickering THIS PAGE INTENTIONALLY BLANK RELAY DRIVER CARD 50-411A Page 1.6...
-
Page 15: Functional Description
SWITCHES U7 to U14 U101 to U164 BRIDGE FPGA TERMINATING RESISTORS R1 TO R12 +12V +3.3V VOLTAGE +2.5V REGULATOR MODULE PCI BRIDGE CONFIGURATION CONFIGURATION Figure 2.1 - Relay Driver Card 50-411A: Functional Block Diagram RELAY DRIVER CARD 50-411A Page 2.1... -
Page 16: Guidance On Using The Card
GUIDANCE ON USING THE CARD A typical application for the 50-411A is shown in Figure 2.2. where a single external relay is driven from one of the 64 outputs. Local power supply decoupling for the relay and coil suppression circuits are recommended for best EMC characteristics with high current relays, but are not essential for safe operation due to the built in protection system. -
Page 17: Installation
Modular products require installation in a suitable chassis. The card is designed for indoor use only. PREOPERATION CHECKS (UNPACKING) 1. Check the card for transport damage and report any damage immediately to Pickering Interfaces. Do not attempt to install the product if any damage is evident. -
Page 18: Hardware Installation
8. Power-up the host system. SOFTWARE INSTALLATION First install the appropriate Pickering PCI switch card drivers by running the installer program Setup.exe (provided in a compressed zip file), either from the CD-ROM supplied, or by downloading the latest version from our website pickeringtest.com... -
Page 19: Testing Operation
Figure 3.2 - General Soft Front Panel Icon A selector panel will appear, listing all installed Pickering PCI, PXI or LXI switch cards and resistor cards. Click on the card you wish to control, and a graphical control panel is presented allowing operation of the card. - Page 20 SECTION 3 - INSTALLATION pickering THIS PAGE INTENTIONALLY BLANK RELAY DRIVER CARD 50-411A Page 3.4...
-
Page 21: Programming Guide
SECTION 4 - PROGRAMMING GUIDE PROGRAMMING OPTIONS FOR PICKERING INTERFACES PCI CARDS For information on the installation and use of drivers and the programming of Pickering’s products in various software environments, please refer to the Software User Manual. This is available as a download from: https://www.pickeringtest.com/support/software-drivers-and-downloads... - Page 22 SECTION 4 - PROGRAMMING GUIDE pickering CARD ARCHITECTURE 50-411A-001 Digital Output Sub Units This section describes the 50-411A-001 sub units and the relevant Pickering VISA Driver and Direct I/O Driver functions used to program them. Applicable Functions VISA Driver Direct Driver...
-
Page 23: Programming The Card
PROGRAMMING THE CARD Using the Direct I/O driver or VISA driver to control the 50-411A-001 This section provides some code fragments which show how to control the 50-411A-001 using either the Direct I/O Driver or the VISA Driver. Once the drivers are installed the manual “Sys40Prg.pdf” and driver help files which fully describes these functions can be found in the Pickering folder(s) or the Pickering entries on your Start Menu. - Page 24 SECTION 4 - PROGRAMMING GUIDE pickering THIS PAGE INTENTIONALLY BLANK RELAY DRIVER CARD 50-411A Page 4.4...
- Page 25 RL42 RL26 RL10 RL59 RL43 RL27 RL11 RL60 RL44 RL28 RL12 RL61 RL45 RL29 RL13 RL62 RL46 RL30 RL14 RL63 RL47 RL31 RL15 RL64 RL48 RL32 RL16 FP_GND FP_GND FP_GND FP_GND FP_GND FP_GND FP_GND RELAY DRIVER CARD 50-411A Page 5.1...
- Page 26 SECTION 5 - CONNECTOR INFORMATION pickering THIS PAGE INTENTIONALLY BLANK RELAY DRIVER CARD 50-411A Page 5.2...
-
Page 27: Trouble Shooting
PCI configuration, highlighting any potential configuration problems. Specific details of all installed Pickering switch cards are included. All the installed Pickering switch cards should be listed in the “Pilpxi information” section - if one or more cards is missing it may be possible to determine the reason by referring to the PCI configuration dump contained in the report, but interpretation of this information is far from straightforward, and the best course is to contact Pickering support: support@pickeringtest.com, if possible... - Page 28 SECTION 6 - TROUBLE SHOOTING pickering THIS PAGE INTENTIONALLY BLANK RELAY DRIVER CARD 50-411A Page 6.2...
-
Page 29: Maintenance Information
PCB. The tables can be used in the fault finding process and should be used in conjunction with the corresponding PCB layout diagrams to identify the position of faulty relays. PCI REED RELAY CARD 50-110 / 115 / 120 / 125 RELAY DRIVER CARD 50-411A Page 7.1 Page 7.1... - Page 30 SECTION 7 - MAINTENANCE INFORMATION pickering Table 7.1 - 50-411A Relay Driver Output Signal / Switch Device Cross Reference Output Switch Serial Output Switch Serial Signal Loop Signal Loop U101 RL33 U133 U102 RL34 U134 U103 RL35 U135 U104 RL36...
- Page 31 U136 U133 U147 U145 U143 U140 U137 U134 U161 U158 U155 U141 U138 U135 U162 U159 U156 U153 U151 U149 U163 U160 U157 U154 U152 U150 Figure 7.1 - 50-411A Relay Driver Component Layout RELAY DRIVER CARD 50-411A Page 7.3...
- Page 32 SECTION 7 - MAINTENANCE INFORMATION pickering THIS PAGE INTENTIONALLY BLANK RELAY DRIVER CARD 50-411A Page 7.4...
