Pickering 50-110A User Manual

Pci reed relay card
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

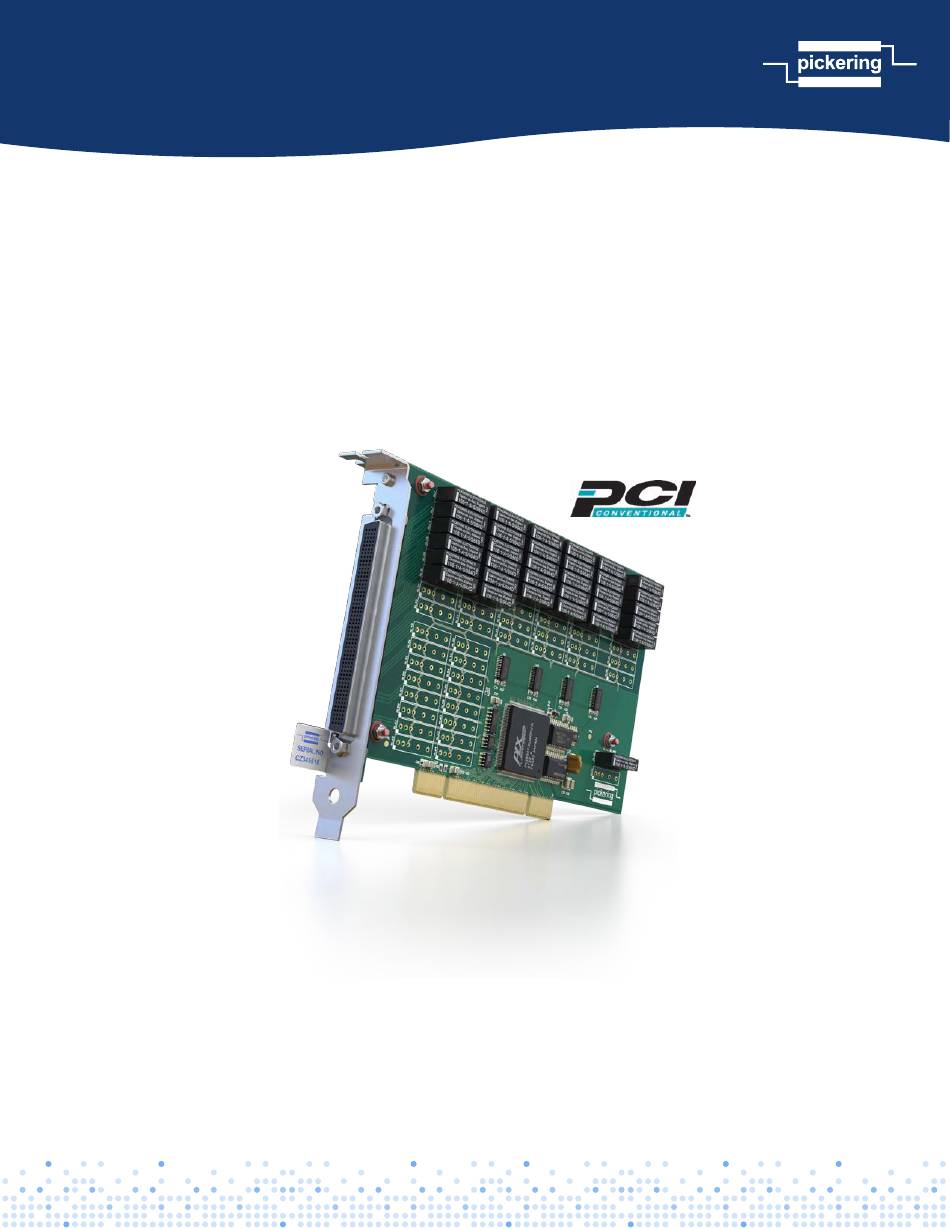

50-110A/115A User Manual
PCI Reed Relay Card
pickeringtest.com
Issue 2.6, June 2023

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 50-110A and is the answer not in the manual?

Questions and answers

Related Manuals for Pickering 50-110A

Summary of Contents for Pickering 50-110A

  • Page 1 50-110A/115A User Manual PCI Reed Relay Card pickeringtest.com Issue 2.6, June 2023...
  • Page 2 © Copyright (2023) Pickering Interfaces. All Rights Reserved. No part of this publication may be reproduced, transmitted, transcribed, translated or stored in any form, or by any means without the written permission of Pickering Interfaces. Technical details contained within this publication are subject to change without notice.
  • Page 3 Pickering Interfaces strives to fulfil all relevant environmental laws and regulations and reduce wastes and releases to the environment. Pickering Interfaces aims to design and operate products in a way that protects the environment and the health and safety of its employees, customers and the public. Pickering Interfaces endeavours to develop and manufacture products that can be produced, distributed, used and recycled, or disposed of, in a safe and environmentally friendly manner.

  • Page 4: Product Safety

    Product Safety Safety Symbols The following safety symbols may be used on the product and throughout the product documentation. Meaning/Description Symbol PROTECTIVE EARTH (GROUND) To identify any terminal which is intended for connection to an external conductor for protection against electric shock in case of a fault, or the terminal of a protective earth (ground) electrode.

  • Page 5: Table Of Contents

    Pre Operation Checks ..............................3.1 Hardware Installation ..............................3.2 Software Installation ..............................3.2 Testing Operation ................................3.3 Section 4 Programming Guide .................................4.1 Programming Options for Pickering PCI Cards .....................4.1 Card Architecture: 50-110A-021/121 ........................4.2 Card Architecture: 50-115A-021/121 ........................4.4 Card Architecture: 50-115A-022/122 ........................4.6 Programming the Card ..............................4.8 Section 5 Connector Information ..............................5.1...

  • Page 6: Warnings And Cautions

    Not to be used in safety critical circuits, refer to the Pickering Interfaces’ terms & conditions of sale. This card must not be used for the switching of Mains Circuits. For the switching of voltages up to the module’s full specification, Secondary Circuit power supplies and the Device Under Test must be fully isolated from the Mains Circuit and the safety earth.
  • Page 7 Warnings & Cautions CAUTION - Product Documentation Symbol Suitably qualified & trained users should ensure that the accompanying documentation is fully read and understood before attempting to install or operate the product. Safety Instructions Safety Instructions All cleaning and servicing requires the equipment to be isolated and disconnected from the power source and user I/O signals (refer to the Maintenance Section).
  • Page 8 Real-time Systems y Supported by eBIRST ™ y 3 Year Warranty The 50-110A/115A range of switching cards is available in both Changeover (SPDT) and Normally Open (SPST & DPST) configurations. Connections are made via a front panel 200-pin female connector.
  • Page 9 50-110A/115A Relay Type Connectors The 50-110A & 50-115A are fitted with high quality ruthenium Signals via a 200-pin female LFH* connector, for pin outs reed relays. These offer very long life with good low level please refer to the operating manual.
  • Page 10 Accessories data sheet where a complete list and documentation can be found for accessories, or refer to the Connection Solutions catalog. Pickering can supply mating 200-pin connectors and cable assemblies to enable easy integration of the 50-110A & 50-115A series of relay cards pickeringtest.com Page 1.3 pickeringtest.com...

  • Page 11: Functional Description

    Relay Drivers U8-11 32xSPDT, 64xSPDT, 32xSPST or 64xSPST Reed Relays +3.3V Card Configuration Figure 2.1 - Reed Relay Cards 50-110A-021, 50-110A-121, 50-115A-021 & 50-115A-121: Functional Block Diagram PCI REED RELAY CARD 50-115A-022/122 PCI Bridge Configuration Relays RL1-50 Relay Drivers U8-11 25xDPST or 50xDPST +3.3V...

  • Page 12: Installation

    Modular products require installation in a suitable chassis. The card is designed for indoor use only. Pre-operation Checks (Unpacking) 1. Check the card for transport damage and report any damage immediately to Pickering Interfaces. Do not attempt to install the product if any damage is evident.

  • Page 13: Hardware Installation

    If you are not a LabVIEW user you should choose the “full” version, and once that has been installed run the LabVIEW Runtime Engine installer via the shortcut on the Programs>>Pickering menu. In the absence of LabVIEW the Runtime Engine is required to support the Pickering Test Panels application.

  • Page 14: Testing Operation

    Figure 3.2 - General Soft Front Panel Icon A selector panel will appear, listing all installed Pickering PCI, PXI/PXIe or LXI switch cards and resistor cards. Click on the card you wish to control, and a graphical control panel is presented allowing operation of the card. Panels can be opened simultaneously for all the installed cards.
  • Page 15 Section 4 - Programming Programming options for Pickering Interfaces PCI Cards For information on the installation and use of drivers and the programming of Pickering’s products in various software environments, please refer to the Software User Manual. This is available as a download from: pickeringtest.com/support/software-drivers-and-downloads...

  • Page 16: Card Architecture: 50-110A-021/121

    Card Architecture - 50-110A-021/121 The 50-110A-021 is an array of 32, and the 50-110A-121 is an array of 64 uncommitted changeover relays. In the default state, all signal paths are between the C terminal and the corresponding B terminal. Energizing a particular relay disconnects the B terminal and creates a signal path between the C and A terminals.
  • Page 17 Section 4 - Programming TABLE 4.1 - Sub-Unit/Bit Usage for 50-110A-021/121 (Continued) 50-110A-021 Signal Path 50-110A-121 Signal Path Sub-Unit (with relay energized) (with relay energized) C16 to A16 C16 to A16 C17 to A17 C17 to A17 C18 to A18...

  • Page 18: Card Architecture: 50-115A-021/121

    Section 4 - Programming Card Architecture - 50-115A-021/121A The 50-115-021 is an array of 32, and the 50-115A-121 is an array of 64 uncommitted SPST relays. In the default state, all signal paths are open. Energizing a particular relay creates a signal path between the C and A terminals. The relay card’s switching architectures are shown in their default state in the diagram below: 50-115A-021 (32 x SPST) 50-115A-121 (64 x SPST)
  • Page 19 Section 4 - Programming TABLE 4.2 - Sub-Unit/Bit Usage for 50-115A-021/121 (Continued) 50-115A-021 Signal Path 50-115A-121 Signal Path Sub-Unit (with relay energized) (with relay energized) C16 to A16 C16 to A16 C17 to A17 C17 to A17 C18 to A18 C18 to A18 C19 to A19 C19 to A19...

  • Page 20: Card Architecture: 50-115A-022/122

    Section 4 - Programming Card Architecture - 50-115A-022/122 The 50-115A-022 is an array of 25, and the 50-115A-122 is an array of 50 uncommitted DPST relays. In the default state, all signal paths are open. Energizing a particular relay creates a signal path between the C and A terminals of both poles of the corresponding channel.
  • Page 21 Section 4 - Programming TABLE 4.3 - Sub-Unit/Bit Usage for 50-115A-022/122 (Continued) 50-115A-022 Signal Path 50-115A-122 Signal Path Sub-Unit (with relay energized) (with relay energized) C11.1 to A11.1 & C11.2 to A11.2 C11.1 to A11.1 & C11.2 to A11.2 C12.1 to A12.1 & C12.2 to A12.2 C12.1 to A12.1 &...

  • Page 22: Programming The Card

    Section 4 - Programming Programming the Card Here are examples of using the drivers with the 50-110A-121 (64 x SPDT) card. Other cards in the range operate in the same way but have a different number of bits in the sub-unit.
  • Page 23 Section 5 - Connectors 32 x SPDT 64 x SPDT Figure 5.1 - Pinout: 32xSPDT Reed Figure 5.2 - Pinout: 64xSPDT Reed Relay Card 50-110A-021 Relay Card 50-110A-121 (200-pin Female LFH Connector (200-pin Female LFH Connector Viewed From Front of Card) Viewed From Front of Card) pickeringtest.com...
  • Page 24 Section 5 - Connectors 32 x SPST 64 x SPST Figure 5.3 - Pinout: 32xSPST Reed Figure 5.4 - Pinout: 64xSPST Reed Relay Card 50-115A-021 Relay Card 50-115A-121 (200-pin Female LFH Connector (200-pin Female LFH Connector Viewed From Front of Card) Viewed From Front of Card) pickeringtest.com Page 5.2...
  • Page 25 Section 5 - Connectors A1.1 A1.2 C1.2 C1.1 A1.1 A1.2 C1.2 C1.1 A2.1 A2.2 C2.2 C2.1 A2.1 A2.2 C2.2 C2.1 A3.1 A3.2 C3.2 A3.1 C3.1 A3.2 C3.2 C3.1 A4.1 A4.2 C4.2 C4.1 A4.1 A4.2 C4.2 C4.1 A5.1 A5.2 C5.2 C5.1 A5.1 A5.2 C5.2...

  • Page 26: Trouble Shooting

    PCI configuration, highlighting any potential configuration problems. Specific details of all installed Pickering switch cards are included. All the installed Pickering switch cards should be listed in the “Pilpxi information” section - if one or more cards is missing it may be possible to determine the reason by referring to the PCI configuration dump contained in the report,...

  • Page 27: Relay Lookup Table: 50-110A-021/121

    Users of eBIRST switching system test tools do not need to use this information to locate faulty relays. TABLE 7.1 - Reed Relay Card 50-110A-021/121 Relay Numbering Signal Path Signal Path Relay No.
  • Page 28 Section 7 - Maintenance Information TABLE 7.1 - Reed Relay Card 50-110A-021/121 Relay Numbering (Continued) Signal Path Signal Path Relay No. Relay No. (with relay energized) (with relay de-energized) 50-110A-021 50-110A-121 C14 to A14 C14 to B14 RL14 RL14 C15 to A15...
  • Page 29 RL20 RL21 RL22 RL23 RL24 RL25 RL26 RL27 RL28 RL29 RL30 RL31 RL32 SPARE SPARE Figure 7.1 - Component Layout for 50-110A-021 Reed Relay Card RL10 RL11 RL12 RL13 RL14 RL15 RL16 RL17 RL18 RL19 RL20 RL21 RL22 RL23 RL24...
  • Page 30 Section 7 - Maintenance Information TABLE 7.2 - Reed Relay Card 50-115A-021/121 Relay Numbering Signal Path Relay No. Relay No. Signal Path Relay No. Relay No. (with relay energized) 50-115A-021 50-115A-121 (with relay energized) 50-115A-021 50-115A-121 C1 to A1 C33 to A33 Not Fitted RL33 C2 to A2...
  • Page 31 Section 7 - Maintenance Information RL10 RL11 RL12 RL13 RL14 RL15 RL16 RL17 RL18 RL19 RL20 RL21 RL22 RL23 RL24 RL25 RL26 RL27 RL28 RL29 RL30 RL31 RL32 SPARE SPARE Figure 7.3 - Component Layout for 50-115A-021 Reed Relay Card RL10 RL11 RL12...
  • Page 32 Section 7 - Maintenance Information TABLE 7.3 - Reed Relay Card 50-115A-022/122 Relay Numbering Signal Path Relay No. Relay No. Signal Path Relay No. Relay No. (with relay energized) 50-115A-022 50-115A-122 (with relay energized) 50-115A-022 50-115A-122 C1.1 to A1.1 & C1.2 to A1.2 C26.1 to A26.1 &...
  • Page 33 Section 7 - Maintenance Information RL10 RL11 RL12 RL13 RL14 RL15 RL16 RL17 RL18 RL19 RL20 RL21 RL22 RL23 RL24 RL25 SPARE SPARE Figure 7.5 - Component Layout for 50-115A-022 Reed Relay Card RL10 RL11 RL12 RL13 RL14 RL15 RL16 RL17 RL18 RL19...
