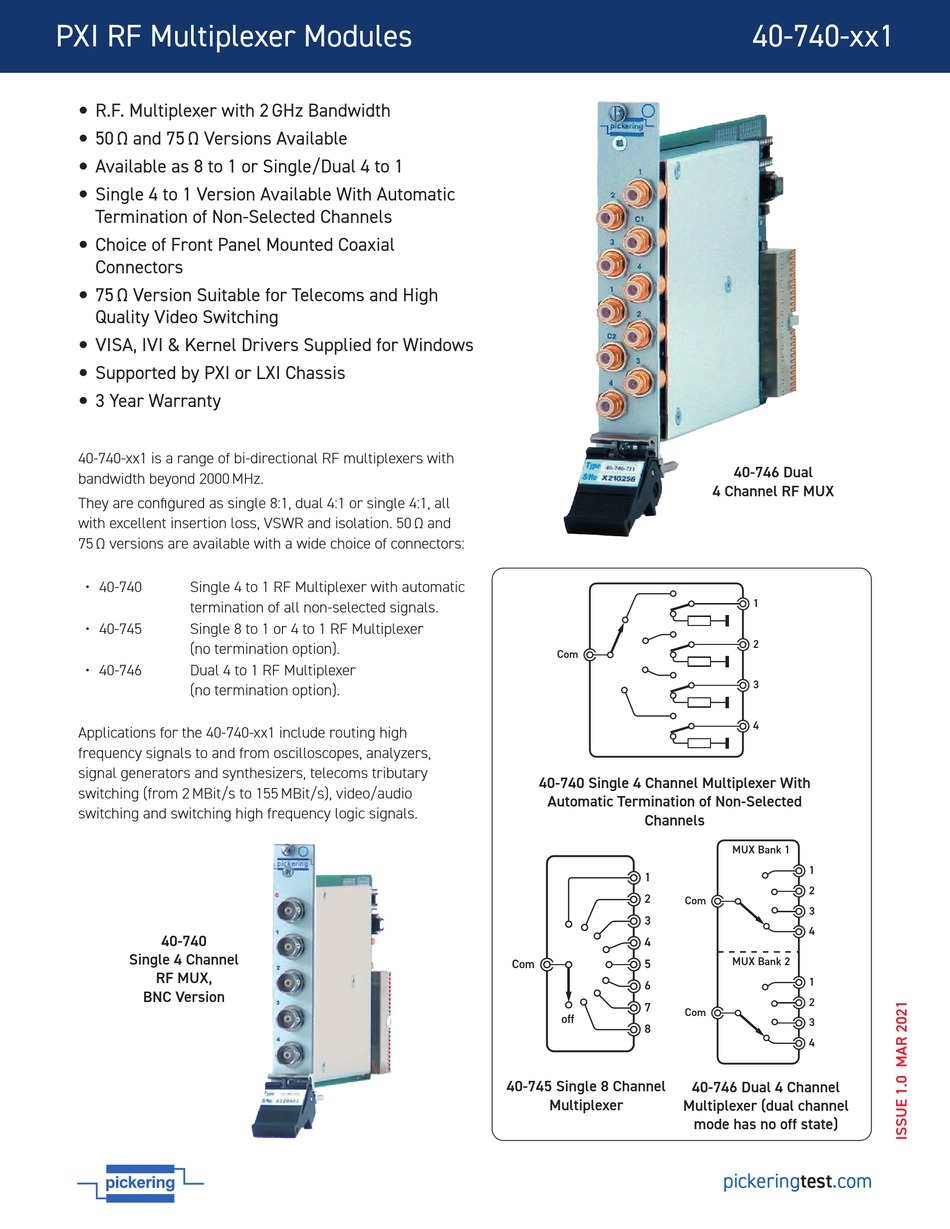

PXI RF Multiplexer Modules
y R.F. Multiplexer with 2 GHz Bandwidth
y 50 Ω and 75 Ω Versions Available
y Available as 8 to 1 or Single/Dual 4 to 1
y Single 4 to 1 Version Available With Automatic
Termination of Non-Selected Channels
y Choice of Front Panel Mounted Coaxial
Connectors
y 75 Ω Version Suitable for Telecoms and High
Quality Video Switching
y VISA, IVI & Kernel Drivers Supplied for Windows
y Supported by PXI or LXI Chassis
y 3 Year Warranty
40-740-xx1 is a range of bi-directional RF multiplexers with
bandwidth beyond 2000 MHz.
They are configured as single 8:1, dual 4:1 or single 4:1, all
with excellent insertion loss, VSWR and isolation. 50 Ω and
75 Ω versions are available with a wide choice of connectors:
• 40-740 Single 4 to 1 RF Multiplexer with automatic
termination of all non-selected signals.
• 40-745 Single 8 to 1 or 4 to 1 RF Multiplexer
(no termination option).
• 40-746 Dual 4 to 1 RF Multiplexer
(no termination option).
Applications for the 40-740-xx1 include routing high
frequency signals to and from oscilloscopes, analyzers,
signal generators and synthesizers, telecoms tributary
switching (from 2 MBit/s to 155 MBit/s), video/audio
switching and switching high frequency logic signals.
40-740
Single 4 Channel
RF MUX,
BNC Version
Com
40-740 Single 4 Channel Multiplexer With
Automatic Termination of Non-Selected
Channels
1
2
Com
3
4
Com 5
6
7
Com
off
8
40-745 Single 8 Channel
Multiplexer Multiplexer (dual channel
40-740-xx1
40-746 Dual
4 Channel RF MUX
1
2
3
4
MUX Bank 1
1
2
3
4
MUX Bank 2
1
2
3
4
40-746 Dual 4 Channel
mode has no off state)
