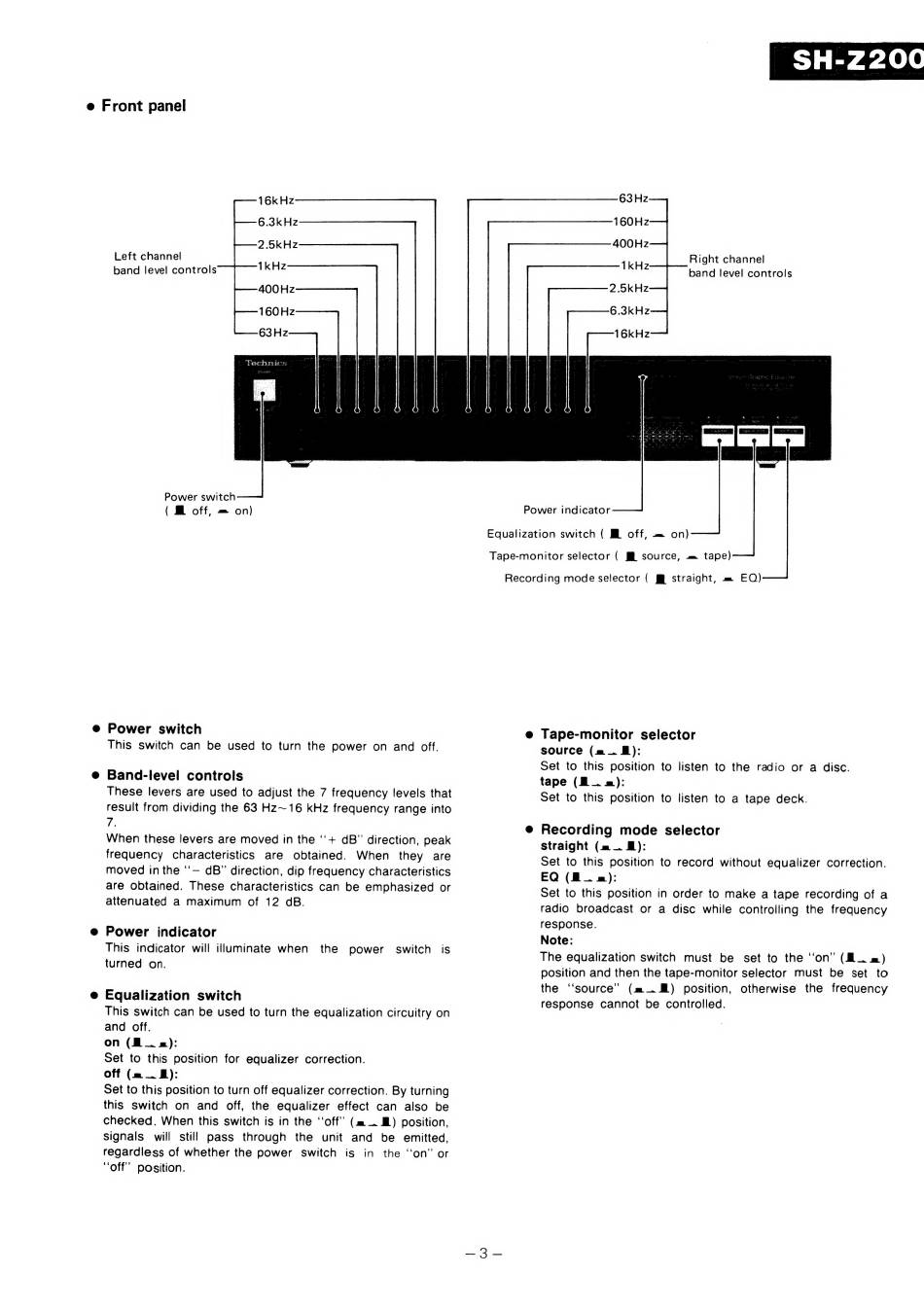

e Front panel
Left channel
band level controls
Veoch rise
Power switch
( M off, = on)
@ Power switch
This switch can be used to turn the power on and off.
e Band-level controls
These levers are used to adjust the 7 frequency levels that
result from dividing the 63 Hz~16 kHz frequency range into
7.
When these levers are moved in the ''+ dB" direction, peak
frequency characteristics are obtained. When they are
moved in the ''— dB" direction, dip frequency characteristics
are obtained. These characteristics can be emphasized or
attenuated a maximum of 12 dB.
e Power indicator
This indicator will illuminate when
turned on.
the power switch is
@ Equalization switch
This switch can be used to turn the equalization circuitry on
and off.
on (H_. a»):
Set to this position for equalizer correction.
Off (mH):
Set to this position to turn off equalizer correction. By turning
this switch on and off, the equalizer effect can also be
checked. When this switch is in the ''off' (m_. HM) position,
signals will still pass through the unit and be emitted,
regardless of whether the power switch is in the ''on" or
"off" position.
Equalization switch ( Ml off, = on)
Tape-monitor selector ( J source, = tape)
Recording mode selector ( ™ straight, = EQ)
Power indicator
Right channel
band level controls
@ Tape-monitor selector
source (m_. Hi):
Set to this position to listen to the radio or a disc.
tape (B_. =):
Set to this position to listen to a tape deck.
@ Recording mode selector
Straight (m= _ Hi):
Set to this position to record without equalizer correction.
EQ (H_ m):
Set to this position in order to make a tape recording of a
radio broadcast or a disc while controlling the frequency
response.
Note:
The equalization switch must be set to the ''on" (H_. m)
position and then the tape-monitor selector must be set to
the ''source'" (mH) position, otherwise the frequency
response cannot be controlled.
