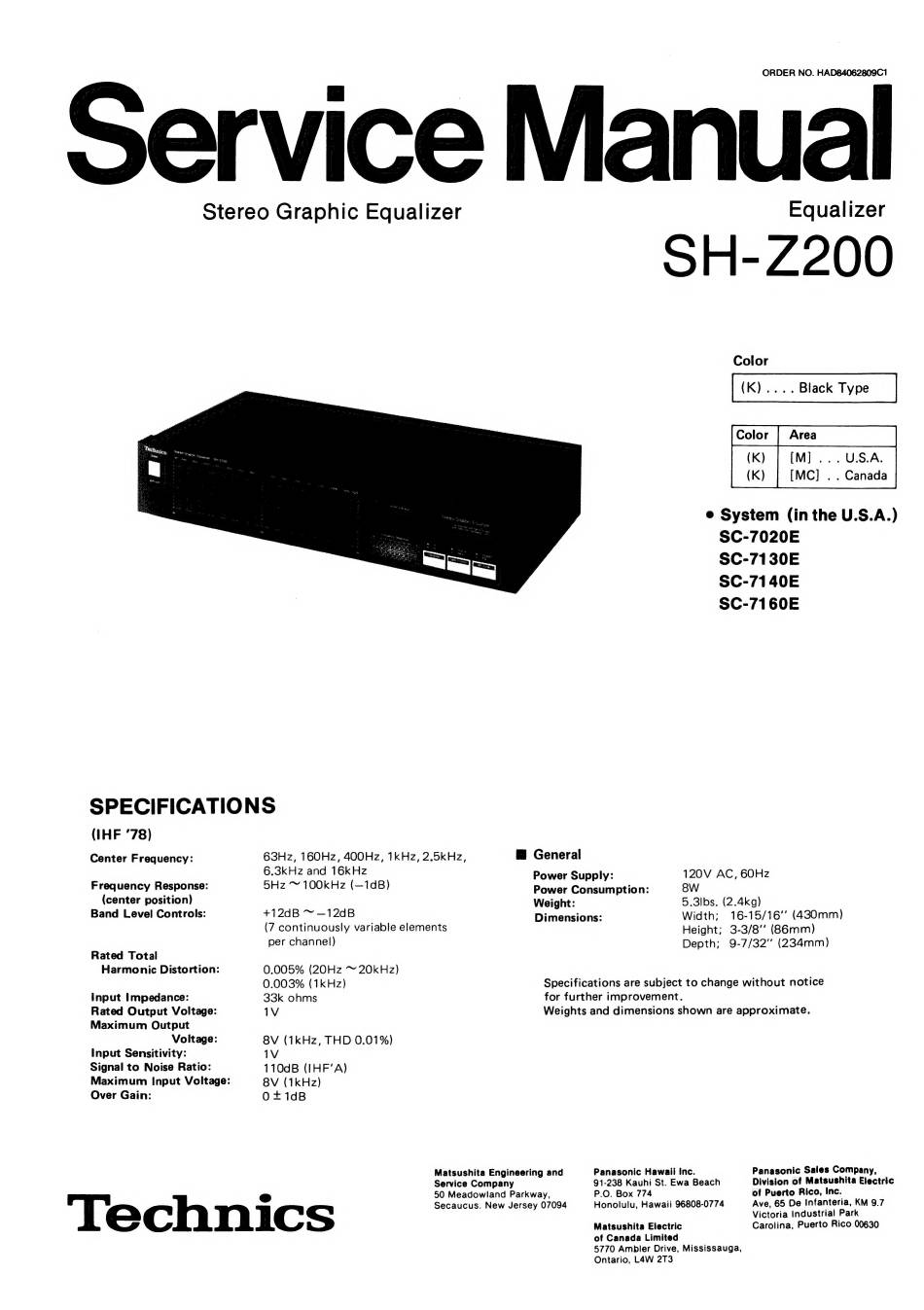

Specifications - Technics SH-Z200 Service Manual

Stereo Graphic Equalizer
ORDER NO. HAD84062809C1
Equalizer
SH-Z200
SPECIFICATIONS
(IHF '78)
Center Frequency:
Frequency Response:
(center position)
Band Level Controls:
Rated Total
Harmonic Distortion:
Input Impedance:
Rated Output Voltage:
Maximum Output
Voltage:
Input Sensitivity:
Signal to Noise Ratio:
Maximum Input Voltage:
Over Gain:
'Technics
63Hz, 160Hz, 400HZz, 1kHz, 2.5kHz,
6.3kHz and 16kHz
5Hz ~ 100kHz (—1dB)
+12dB ~—12dB
(7 continuously variable elements
per channel)
0.005% (20Hz ~ 20kHz)
0.003% (1kHz)
33k ohms
1V
8V (1kHz, THD 0.01%)
1V
110dB (IHF'A)
8V (1kHz)
0+1dB
Matsushita Engineering and
Service Company
50 Meadowland Parkway,
Secaucus. New Jersey 07094
@ General
Power Supply:
Power Consumption:
Weight:
Dimensions:
Color
(K).... Black Type ©
(K) | [M] ... U.S.A.
(K) [MC] .. Canada
Color
e System (in the U.S.A.)
SC-7020E
SC-7130E
SC-7140E
SC-7160E
120V AC, 60Hz
SW
5.3lbs. (2.4kg)
Width; 16-15/16'" (430mm)
Height; 3-3/8'' (86mm)
Depth; 9-7/32" (234mm)
Specifications are subject to change without notice
for further improvement
Weights and dimensions shown are approximate.
P.O. Box 774
Matsushita Electric
of Canada Limited
5770 Ambler Drive,
Ontario, L4W 2T3
Panasonic Hawaii inc.
91-238 Kauhi St. Ewa Beach
Honolulu, Hawaii 96808-0774
Panasonic Sales Company,
Division of Matsushita Electric
of Puerto Rico, Inc.
Ave, 65 De Infanteria, KM 9.7
Victoria Industrial Park
Carolina, Puerto Rico 00630
Mississauga,
