- Page 1 OPS-I5-1135G7 & OPS-I7-1165G7 User Manual OPS-I5-1135G7 & OPS-I7-1165G7 User Manual www.waveshare.com/wiki...
-
Page 2: Table Of Contents
OPS-I5-1135G7 & OPS-I7-1165G7 User Manual Contents 1. INTRODUCTION ..............................1 1.1 Product Show ...............................1 1.2 Specifications ...............................2 2. INSTALLATION INSTRUCTION ..........................3 2.1 Overall Dimensions ............................ 3 2.2 Onboard Resources-Front Side ....................... 4 2.3 Onboard Resource-Back Side ........................5 2.3 Product Show-Front Side ..........................6 2.4 Product Show-Back Side ........................... - Page 3 OPS-I5-1135G7 & OPS-I7-1165G7 User Manual 4.4 Advanced ..............................13 4.5 Chipset .................................15 4.6 Security ................................15 4.7 Boot ................................16 4.8 Save&Exit ..............................17...
-
Page 4: Introduction

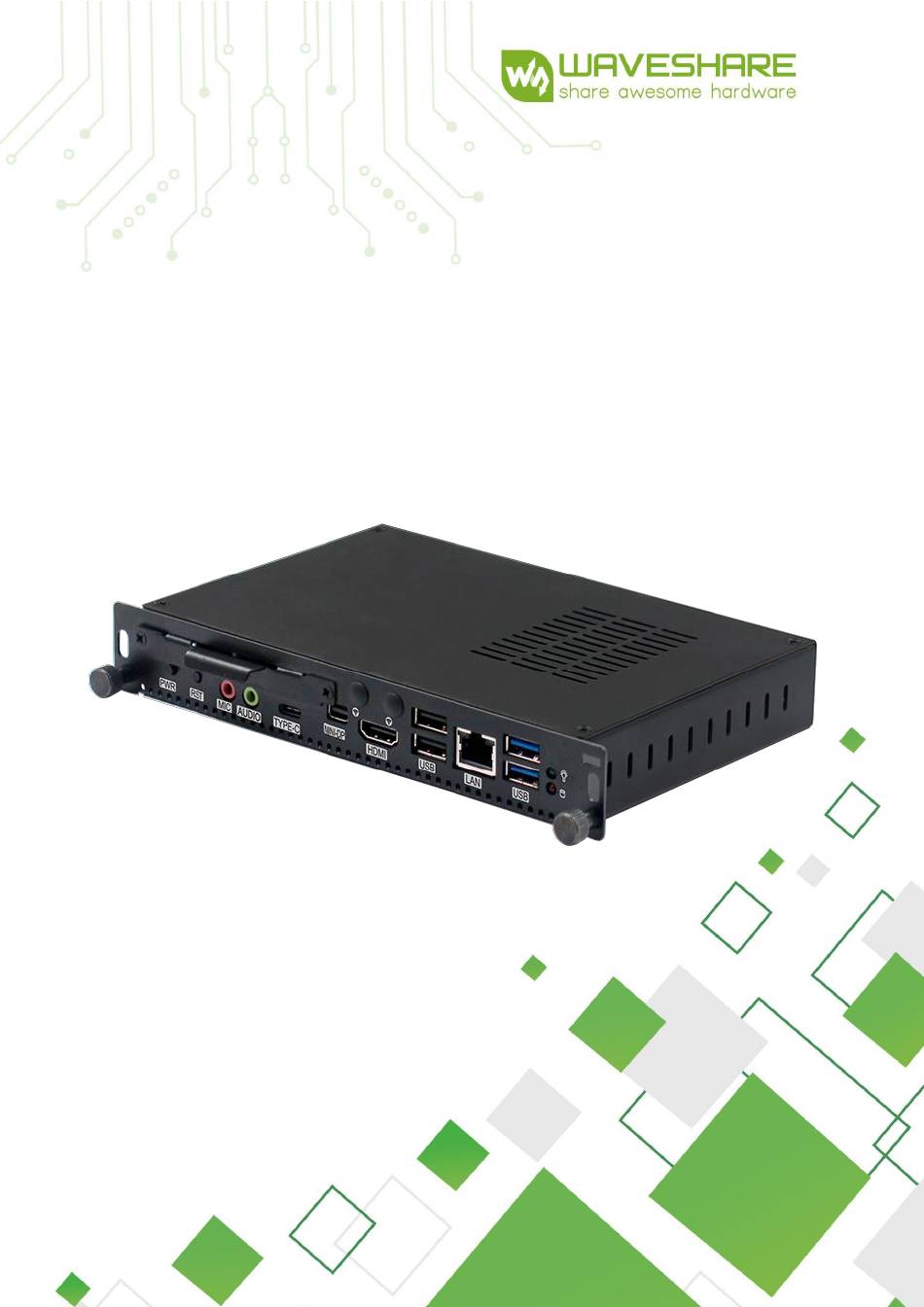

OPS-I5-1135G7 & OPS-I7-1165G7 User Manual 1. INTRODUCTION 1.1 PRODUCT SHOW... -
Page 5: Specifications
OPS-I5-1135G7 & OPS-I7-1165G7 User Manual 1.2 SPECIFICATIONS Onboard Intel 11 generation Tiger Lake-U series processor, TDP Processor EFI BIOS TPM 2.0 Built in the CPU by default, customizable for external TPM2.0 1*DDR4 SO-DIMM, up to 32GB 1*M.2 M-Key 2280, default NVMe-PCIe 3.0x4 protocol, optional SATA3.0 protocol... -
Page 6: Installation Instruction
OPS-I5-1135G7 & OPS-I7-1165G7 User Manual 2. INSTALLATION INSTRUCTION 2.1 OVERALL DIMENSIONS... -
Page 7: Onboard Resources-Front Side
OPS-I5-1135G7 & OPS-I7-1165G7 User Manual 2.2 ONBOARD RESOURCES-FRONT SIDE... -
Page 8: Onboard Resource-Back Side
OPS-I5-1135G7 & OPS-I7-1165G7 User Manual 2.3 ONBOARD RESOURCE-BACK SIDE... -
Page 9: Product Show-Front Side
OPS-I5-1135G7 & OPS-I7-1165G7 User Manual 2.3 PRODUCT SHOW-FRONT SIDE 2.4 PRODUCT SHOW-BACK SIDE... -
Page 10: Pin Definition
OPS-I5-1135G7 & OPS-I7-1165G7 User Manual 3. PIN DEFINITION 3.1 JP1 JP1 is the CMOS clear jumper, using a 1x2 pin with a 2.54mm pitch. RTC1 Functions Close Clear RTC CMOS Open Default setting 3.2 AT/ATX2 AT/ATX is the jumper for selecting the power-on mode. When Pins 1-2 are closed, upon powering up the supply, the board is on. -
Page 11: Cpu_Fan1, Sys_Fan1
OPS-I5-1135G7 & OPS-I7-1165G7 User Manual F_PANEL1 Pin Definition Hard flash drive read/write indicator positive and negative signal pin 2, 4 Main power indicator positive and negative signal pin 5, 7 Main board reset signal positive and negative pin 6, 8... -
Page 12: Gpio
OPS-I5-1135G7 & OPS-I7-1165G7 User Manual 3.6 J2 Signal Name Signal Name Signal Name DATA 3.7 GPIO 2x5Pin, with a 2.00mm pitch, the pin definition is show below: 3.8 COM Default JAE interface COM function. If it is switched to COM function on the board, 1-3 jumper should be... -
Page 13: Dc-In
OPS-I5-1135G7 & OPS-I7-1165G7 User Manual 3.9 DC-IN DC IN, external power input for stand-alone use (not connected via JAE connector), DC JACK 12-19V, 90W. 3.10 M-KEY SLOT NGFF-Key-B Slot, Supports 4G and 5G Modules. When using a 5G module, the 4G screw must be removed. -
Page 14: Bios Parameter Setting
OPS-I5-1135G7 & OPS-I7-1165G7 User Manual 4. BIOS PARAMETER SETTING 4.1 HOW TO ENTER BIOS Open the system power or restart the system. After booting, when the screen displays self-test information, press F2 to enter BIOS SETUP interface. Press F12 to start disk selection interface. -
Page 15: Main
OPS-I5-1135G7 & OPS-I7-1165G7 User Manual 4.2 MAIN System date: set the system date System time: set the system time The black font section contains read-only information, including BIOS ID, version, and manufacturer. Detailed CPU information includes the CPU manufacturer, model,... -
Page 16: Settings
OPS-I5-1135G7 & OPS-I7-1165G7 User Manual 4.3 SETTINGS SS RTC Wake Setting: S5 real-time wake setting AC Power Loss Setting: Auto power-on upon incoming call. Special Setting 4.4 ADVANCED RC ACPI Settings: RC ACPI setting... - Page 17 OPS-I5-1135G7 & OPS-I7-1165G7 User Manual Connectivity Configuration CPU Configuration: CPU model, frequency, threads, cache, and related information and settings. Power & Performance: Common configuration options for CPU Turbo Boost, power consumption, etc. PCIE Configuration PCH-FM Configuration ...
-
Page 18: Chipset
OPS-I5-1135G7 & OPS-I7-1165G7 User Manual UEFI Variables Protection 4.5 CHIPSET System Agent (SA) Configuration PCH-IO Configuration 4.6 SECURITY Administrator password: This command line is used to set the superuser... -
Page 19: Boot
OPS-I5-1135G7 & OPS-I7-1165G7 User Manual password. User password: set the password for regular users. Note: The password must be a minimum of 3 characters and a maximum of 20 characters. In case of a forgotten password, short-circuit the JCMOS pins for 5 seconds or remove the BAT1, short-circuiting the positive and negative terminals for 5 seconds to clear the password. -
Page 20: Save&Exit
OPS-I5-1135G7 & OPS-I7-1165G7 User Manual Boot Option #1: The setting for the first boot option. Boot Option #2: The setting for the second boot option. Fast Boot 4.8 SAVE&EXIT Save Changes and Exit Discard Changes and Exit ... - Page 21 OPS-I5-1135G7 & OPS-I7-1165G7 User Manual Boot Override ...
- Page 22 OPS-I5-1135G7 & OPS-I7-1165G7 User Manual Appendix: Troubleshooting Analysis and Solutions Failure Solutions 1. Check if the power connection cable is properly connected. 2. Verify if the power supply meets the board's power requirements. 3. Plug the memory module again. Failure to Power On After Powering Up 4.
- Page 23 OPS-I5-1135G7 & OPS-I7-1165G7 User Manual 2. Check if the remaining space in the system partition is insufficient. 3. Verify if the CPU cooling fan is functioning properly. 1. Check if the CPU cooling fan is operating properly. 2. Verify if the industrial computer's reset button was accidentally triggered.
