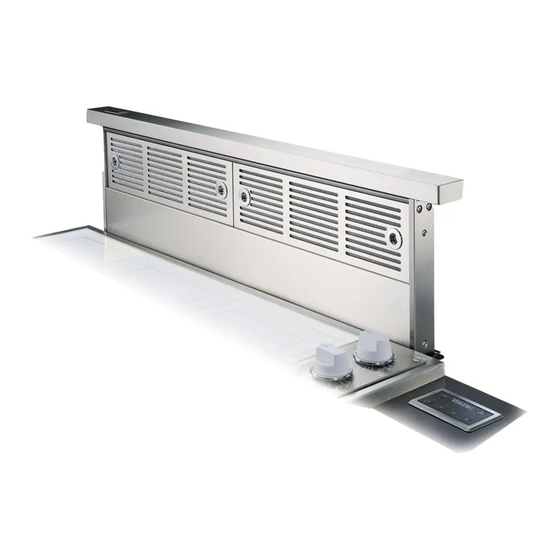

Viking VIPR101 Instruction Manual

Viking VIPR101 Instruction Manual

Downdraft ventilators
Hide thumbs Also See for VIPR101:
Table of Contents

Advertisement

Available languages

Available languages

viking range corporation
MoDeL
vipr101
vipr101r
vipr161
vipr161r
vipr181
vipr181r
Warning - rangetopS onLY: To reduce the risk of burns or ignition of clothing by reaching across burners, an "R" model
downdraft (with remote control) MUSt be used with a rangetop. The remote control MUSt be mounted in the countertop - at least
4" from the burners. See "INSTALL COOKTOP" section on page 8.
reaD anD Save tHeSe inStrUctionS
!
intenDeD For DoMeStic cooking onLY
Warning
to reDUce tHe riSk oF Fire, eLectric SHock, or
inJUrY to perSonS, oBServe tHe FoLLoWing:
. Use this unit only in the manner intended by the manufacturer. If
you have questions, contact the manufacturer at the address or
telephone number in the warranty.
2. Before s ervicing o r c leaning u nit, s witch p ower o ff a t s ervice p anel
and lock the service disconnecting means to prevent power from
being switched on accidentally. When the service disconnecting
means cannot be locked, securely fasten a prominent warning
device, such as a tag, to the service panel.
3. Installation work and electrical wiring must be done by a qualified
person(s) in accordance with all applicable codes and standards,
including fire-rated construction codes and standards.
4. Sufficient air is needed for proper combustion and exhausting of
gases t hrough t he fl ue ( chimney) o f f uel b urning e quipment t o p re-
vent backdrafting. Follow the heating equipment manufacturer's
guideline and safety standards such as those published by the
National Fire Protection Association (NFPA), and the American
Society f or H eating, R efrigeration a nd A ir C onditioning E ngineers
(ASHRAE), and the local code authorities.
5. When cutting or drilling into wall or ceiling, do not damage electri-
cal wiring and other hidden utilities.
6. Ducted fans must always be vented to the outdoors.
7. To reduce the risk of fire, use only metal ductwork.
8. Do n ot i nstall t his p roduct w ith the activating s witch directly b ehind
a burner or element. Minimum distance between the switch and
the edge of the burner should be 4 inches.
9. Loose-fitting or hanging clothing should never be worn when
operating this appliance. They may be ignited by burners/ele-
ments on cooktop.
0. Children should not be left alone or unattended in the area where
this appliance is in use.
. This unit must be grounded.
to reDUce tHe riSk oF a range top greaSe Fire:
a) Never leave surface units unattended at high settings.
Boilovers cause smoking and greasy spillovers that may
ignite. Heat oils slowly on low or medium settings.
b) Always turn hood ON when cooking at high heat or when
cooking flaming foods.
c) Clean ventilating fans frequently. Grease should not be
allowed to accumulate on fan or filter.
d) Use proper pan size. Always use cookware appropriate
for the size of the surface element.
WiDtH
30"
30" w/ remote control
36"
36" w/ remote control
48"
48" w/ remote control
BLoWer
(purchase separately)
VIDV500 Interior or VEDV900 Exterior
VIDV500 Interior or VEDV900 Exterior
VIDV500 Interior or VEDV900 Exterior
VIDV500 Interior or VEDV900 Exterior
VIDV500 Interior, VEDV900 Exterior or VEDV1200 Exterior
VIDV500 Interior, VEDV900 Exterior or VEDV1200 Exterior
Warning
to reDUce tHe riSk oF inJUrY to perSonS in tHe
event oF a range top greaSe Fire, oBServe tHe
a
FoLLoWing
:
1. SMOTHER FLAMES with a close-fitting lid, cookie sheet,
or metal tray, then turn off the burner. BE CAREFUL TO
PREVENT BURNS. If the flames do not go out immedi
ately, EVACUATE AND CALL THE FIRE DEPARTMENT.
2. NEVER PICK UP A FLAMING PAN - You may be burned.
3. DO NOT USE WATER, including wet dishcloths or towels
- a violent steam explosion will result.
4. Use an extinguisher ONLY if:
A . You know you have a Class ABC extinguisher, and you
already know how to operate it.
B . The fire is small and contained in the area where it
started.
C . The fire department is being called.
D . You can fight the fire with your back to an exit.
a
Based on "Kitchen Firesafety Tips" published by NFPA.
caUtion
1. For general ventilating use only. Do not use to exhaust hazardous
or explosive materials and vapors.
2. To avoid motor bearing damage and noisy and/or unbalanced
impellers, keep drywall spray, construction dust, etc. off power
unit.
3. Clean filters and grease-laden surfaces frequently.
4. Do not repair or replace any part of this appliance unless specifi-
cally recommended in this manual. All other servicing should be
done by a qualified technician.
5. Please read specification label on product for further information
and requirements.
6. DO NOT INSTALL WITH GRILL MODEL RANGETOPS. This
will void the warranty.
7. Models vipr101SS, vipr161SS, and vipr181SS (non-
remote units): DO NOT INSTALL WITH RANGETOPS. This
will void the warranty.
Save this manual for electrical
inspector and Homeowner to use.
Use and care information on page 11.

downdraft Ventilators
!
inStaLLer:
HoMeoWner:
!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VIPR101 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Viking VIPR101

  • Page 1 MoDeL WiDtH vipr101 30" vipr101r 30" w/ remote control vipr161 36" vipr161r 36" w/ remote control vipr181 48" vipr181r 48" w/ remote control Warning - rangetopS onLY: To reduce the risk of burns or ignition of clothing by reaching across burners, an "R" model downdraft (with remote control) MUSt be used with a rangetop. The remote control MUSt be mounted in the countertop - at least 4" from the burners. See "INSTALL COOKTOP" section on page 8. reaD anD Save tHeSe inStrUctionS intenDeD For DoMeStic cooking onLY Warning to reDUce tHe riSk oF Fire, eLectric SHock, or inJUrY to perSonS, oBServe tHe FoLLoWing: . Use this unit only in the manner intended by the manufacturer. If...
  • Page 2: Take Measurements

    Interior Blower Installation This downdraft blower system is tYpicaL inStaLLation designed to be used to exhaust airborne contaminants when COUNTER cooking with a variety of gas or electric cooktops. It can be mounted in island, peninsula, or conventional wall locations. This unit can be easily installed following these basic steps: Cut out the countertop opening. Mount the unit in the cabinet. Install the Model VIDV500 Interior Blower Connect the ductwork and electrical. Install the cooktop. note: the high level of air flow of this appliance may effect the gas flame on some types of gas cooktops. This is NORMAL and 120 vac • 60 Hz • 4.0 a...
  • Page 3: Plan The Ductwork

    MeaSUreMentS Interior Blower Installation 1" SiDe vieW 7 " oF DoWnDraFt 3 " WitH 3 " viDv500 interior BLoWer 5" VIDV500 VIDV500 18" INTERNAL INTERIOR BLOWER BLOWER SIDE VIEW pLan tHe DUctWork VIPR DOWNDRAFT VENTILATORS Interior Blower Installation LEFT . The interior down-...
  • Page 4 Interior Blower Installation LeFt SiDe DiScHarge CENTER LINES OF DUCT CUTOUT 10¼" x 3½" CUTOUT (TYP.) rigHt SiDe DiScHarge " CENTER LINE OF COUNTER CUTOUT BottoM DiScHarge CENTER LINE 1 " t OF COUNTER...
  • Page 5 Wiring Interior Blower Installation . The Interior Downdraft Blower system draws 4 AMPS and re- quires a 20 VAC, 60 Hz circuit. 2. The downdraft has a 2 ft. long power cord with a 3-pronged plug. Plan to provide a grounded outlet in a location which will allow the unit’s power cord to reach. iMportant - Location oF eLectricaL oUtLet: If Models VIPR0SS or VIPR0RSS are being installed in a 30" wide cabinet... or Models VIPR6SS or VIPR6RSS are being in- stalled in a 36" wide cabinet... or Models VIPR8SS or VIPR8RSS are being in- stalled in a 48" wide cabinet..the outlet cannot be located on the back wall of cabinet. In these cases, the width of the downdraft covers nearly the entire width of the back wall of the cabinet. So you must...
  • Page 6 DoWnDraFt Exterior Blower Installation The downdraft is shipped without a blower. Purchase a Model VEDV900 or VEDV1200 Exterior Blower and mount the 10" dis- charge plate to the downdraft as follows: 1. Place the downdraft on its back on a table of flat work surface. 2. Remove the 4 nuts and 2 clamp channels. 3. Remove 2 screws and the gear motor cover. 4. Carefully position the0" discharge plate under the bottom flange of the downdraft. 5. Connect motor plug. 6. Replace the gear motor cover and 2 sheet metal screws. 7. Replace the 2 clamp channels and start the 4 nuts, do not tighten. 8. Slide blower left of right to desired position. Use cover plate (supplied) to close up any open space.
  • Page 7: Mount The Unit

    MoUnt tHe Unit All Units 1. Set downdraft into opening. Extend leveling brackets to floor of cabinet so downdraft sits straight. (Note: Leveling brackets can be removed and re-attached in other positions. Bottom flange may have to face inward in tight cabinet installations.) 2. Secure the downdraft to the countertop as follows: Hold the downdraft against the back of countertop cut-out and tightening the two mounting screws (one on each end of unit) on underside of countertop. Use a wood shim between screw and underside of granite countertops. 3. Screw leveling brackets to bottom of cabinet. Tighten screws holding leveling bracket to unit on each side. inStaLL DUctWork Interior Blower Installation  BLOWER  COLLAR SCREWS 1. Cut hole in cabinet as well as holes in wall or floor as necessary. 2. Mount the roof or wall cap and work back towards the cabinet, attaching all ductwork, elbows and transitions as previously planned. Tape all ductwork connections to make them secure...
  • Page 8 Wiring Interior Blower Installation caUtion: all electrical wiring should be done by a qualified person(s) in accordance with all applicable codes and standards. 1. Mount a standard wiring box, with 3-pronged receptacle, inside the cabinet. Make sure the downdraft's power cord can easily reach it. 2. Run appropriate power cable into cabinet and connect it to re- ceptacle. 3. Plug the downdraft's power cord into the outlet. Make sure that the power cord is routed away from the heat generated by the cooktop. inStaLL cooktop All Units . Align the cooktop with the downdraft and fasten cooktop in...
  • Page 9 SWitcH Warning: to reduce the risk of burns or ignition of clothing by reaching across burners, the remote control must be mounted at least 4" away from any cook top burner. keep in mind you do not want to place the control where it will be in the way for cooking, or where hot pans could be set, or hot liquids spilled on the control.
  • Page 10 Ventilators This page has been left blank intentionally. BACKSIDE OF REMOTE SWITCH TEMPLATE...
  • Page 11: Operation

    Up / DoWn-----Raises and lowers vent. Turns blower ON when vent is UP and OFF when vent is DOWN. note: The UP/DOWN switch for models VIPR0SS, VIPR6SS, and VIPR8SS is on the right hand end of the top cover. DeLaY -----------Allows blower to run for 0 min. after button is pressed. Delay is activated by double press- ing any speed control button. Blower will run for 10 min. - then shut OFF. VENT WILL NOT LOWER. You must press UP / DOWN to lower vent. When DELAY is activated, the speed level light will blink. BLoWer SpeeDS ------Blower operates at 4 different speed levels. Press button ONCE to turn...
  • Page 12 proFeSSionaL SerieS BUiLt-in rear DoWnDraFt WarrantY one Year FULL WarrantY Built-in downdraft ventilators, all of their component parts and accessories, except as detailed below*, are warranted to be free from defective materials or workmanship in normal household use for a period of twelve (2) months from the date of original retail purchase. Viking Range Corporation, warrantor, agrees to repair or replace, at its option, any part which fails or is found to be defective during the warranty period. For the purpose of this warranty, normal household use shall not include use of this downdraft ventilator with a cooking unit that has a grill. The Viking warranty does not cover any additional ventilation products not provided by Viking used in conjunction with Viking downdrafts or ventilator kits. This includes, but is not limited to, such devices as booster fans or in-line blowers. Any malfunction caused to Viking ventilation products as a direct result of the use of such equipment is not covered under the Viking warranty. Painted and decorative items are warranted to free from defective materials or workmanship for a period of ninety (90) days from the date of original retail purchase. ANY DEFECTS MUST BE REPORTED TO THE SELLING DEALER WITHIN NINETY (90) DAYS FROM DATE OF ORIGINAL RETAIL PURCHASE. Five Year LiMiteD WarrantY Any ventilator motor which fails due to defective materials or workmanship in normal household use during the second through the fifth year from the date of original retail purchase will be repaired or replaced, free of charge for the part itself, with the owner paying all other costs, including labor. This warranty extends to the original purchaser of the product warranted hereunder and to each transferee owner of the product during the term of the warranty. This warranty shall apply to products purchased and located in the United States and Canada. Products must be purchased in the country where service is requested. Warranty labor shall be performed by an authorized Viking Range Corporation service agency or representative. Warranty shall not apply to damage resulting from abuse, accident, natural disaster, loss of electrical power to the product for any reason, alteration, outdoor use, improper installation, improper operation or repair or service to the product by anyone other than an authorized Viking Range Corporation service agency or representative. This warranty does not apply to commercial usage. Warrantor is not responsible for consequential or incidental damage whether arising out of breach of warranty, breach of contract, or otherwise. Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. Owner shall be responsible for proper installation, providing normal care and maintenance, providing proof of purchase upon request, and making the appliance reasonably accessible for service. If the product or one of its component parts contains a defect or malfunction during the warranty period, after a reasonable number of attempts by the warrantor to remedy the defects or...
  • Page 13 MoDÈLe LargeUr vipr101 76,2 cm (30 po) vipr101r 76,2 cm (30 po) télécommande VIDV500 intérieur ou VEDV900 extérieur vipr161 9,4 cm (36 po) vipr161r 9,4 cm (36 po) télécommande VIDV500 intérieur ou VEDV900 extérieur vipr181 2,9 cm (48 po) vipr181r 2,9 cm (48 po) télécommande VIDV500 intérieur, VEDV900 extérieur ou VEDV1200 extérieur avertiSSeMent – SUrFace De cUiSSon SeULeMent : Pour réduire les risques de brûlure ou que des vêtements s’enflamment en traver- sant les brûleurs, une hotte de modèle « R » (à télécommande) Doit être utilisée avec le surface de cuisson. La télécommande Doit être installée à au moins 0 cm (4 po) des brûleurs de la cuisinière. Consultez les instructions à la page 20 "INSTALLATION DE LA SURFACE DE CUISSON". Lire et conServer ceS inStrUctionS DeStiné À La cUiSine DoMeStiQUe SeULeMent avertiSSeMent AFIN DE DIMINUER LES RISQUES D’INCENDIE, D’ÉLECTROCUTION OU DE...
  • Page 14: Tous Les Appareils

    Installation du ventilateur intérieur Ce ventilateur encastré est conçu inStaLLation tYpe pour évacuer les contaminants de l’air lors de l’utilisation d’une COMPTOIR surface de cuisson au gaz ou électrique. Il peut être installé dans un îlot, une péninsule ou un comptoir conventionnel appuyé contre un mur. Pour l’installation, procédez simplement comme suit : Découpez l’ouverture dans le comptoir. Installez l’appareil dans l’armoire. Installez le ventilateur intérieur modèle VIDV500. Raccordez les conduits et effectuez les connexions électriques.
  • Page 15: Préparation Des Conduits

    DeS MeSUreS Installation du ventilateur intérieur 2,5 cm 1" ( po) 9,5 cm 7 " 8,2 cm (3 (7 /6 po) /4 po) 3 " vUe De cÔté 3 " 9,2 CM (3 5/8 po) De La Hotte avec ventiLateUr 2,7 cm 5" (5 po) intérieUr VIDV500 VENTILATEUR viDv500 45,7 cm 18"...
  • Page 16 DU DÉCOUPAGE DE L’ARMOIRE Installation du ventilateur intérieur Sortie À gaU- 6  , 2 c m LIGNES DE CENTRE CENTER DU DÉCOU- LINES OF PAGE POUR DUCT CUTOUT CONDUIT 10¼" x 3½" TROU (TYP.) CUTOUT 8,26 x 25,4 cm (TYP.) (3¼ x 10 po) Sortie À...
  • Page 17: Préparation Du Câblage

    DU cÂBLage Installation du ventilateur intérieur . Le ventilateur encastré intérieur consomme 4 AMPÈRES et nécessite un circuit de 20 VCA, 60 Hz. 2. Le v entilateur e ncastré e st m unie d ’un c ordon é lectrique d e 6  c m (2 pi) avec une fiche à trois broches. Prévoyez l’installation d’une prise avec mise à la terre à un endroit permettant le branchement du cordon. iMportant – poSition De La priSe éLectriQUe : Si les modèles VIPR0SS ou VIPR0RSS sont installés...
  • Page 18: Tous Les Modèles

    De La Hotte Installation du ventilateur extérieur La hotte est livrée sans ventilateur. Procurez-vous le ventilateur extérieur modèle VEDV900 ou VEDV1200 et installez la plaque d’évacuation de 25,4 cm (10 po) dans la hotte comme suit : . Placez la hotte sur le dos sur une table ou une surface de travail droite. 2. Enlevez les 4 écrous et les 2 profilés.. 3. Enlevez les 2 vis et le couvercle du moteur. 4. Placez soigneusement la plaque d’évacuation de 25,4 cm (0 po) sous la bride inférieure de la hotte. 5. Branchez la prise du moteur.
  • Page 19: Installation De L'unité

    De L’Unité Tous les modèles . Placez la hotte dans l’ouverture. Allongez les brides de nivel- lement jusqu’au plancher de l’armoire afin que la hotte s’appuie bien droite. (Remarque : vous pouvez enlever les brides de niv- ellement et les fixer dans une autre position. La bride inférieure peut être retournée vers l’intérieur si les dimensions de l’armoire sont très justes.) 2. Fixez la hotte au comptoir comme suit : tenez la hotte contre l’arrière de l’ouverture du comptoir et serrez les deux vis de mon- tage (à chaque bout de l’appareil) sous le comptoir. Utilisez une cale de bois entre la vis et le dessous des comptoirs de granite. 3. Vissez les brides de nivellement au plancher de l’armoire. Serrez les vis en maintenant la bride de chaque côté de l’unité. inStaLLation DeS conDUitS Installation du ventilateur intérieur  VENTILATEUR ...
  • Page 20: Câblage Électrique

    éLectriQUe Installation du ventilateur intérieur attention : Le câblage doit être effectué par un électricien qualifié conformément aux codes et aux normes en vigueur. . Installez une boîte électrique standard avec une prise à trois broches dans l’armoire. Vérifiez que la cordon électrique de la hotte puisse facilement l’atteindre. 2. Acheminez l e c âble d ’alimentation j usqu’à l ’armoire e t r accordez- le à la prise.
  • Page 21: Installation De La Télécommande

    De La téLécoMManDe avertiSSeMent : pour réduire les risques de brûlure ou que des vêtements s’enflamment en traversant les brûleurs, la télécommande doit être installée à au moins 10 cm (4 po) des brûleurs de la cuisinière.
  • Page 22 Cette page a été laissée en blanc volontairement. ARRIÈRE DU GABARIT DE LA TÉLÉCOMMANDE Ventilateurs encastrés downdraft Ventilators...
  • Page 23: Utilisation Et Entretien

    FonctionneMent HaUt/BaS — - -Relève o u a baisse l e conduit d’aération. Met le ventila- teur en MARCHE lorsque le conduit est RELEVÉ et ARRÊTE le ventilateur lorsque le conduit est ABAISSÉ. remarque : Le bouton HAUT/BAS (UP/DOWN) des modèles VIPR0SS, VIPR6SS et VIPR8SS est situé à droite de la télé- commande. DéLai ------------Actionne le ventilateur pendant 0 minutes une fois que l’on a appuyé sur le bouton. Le délai est égale- ment activé en appuyant deux fois sur n’importe quelle touche de commande de vitesse. Le ventilateur...
  • Page 24 garantie DeS HotteS encaStréeS De Série proFeSSionneLLe garantie coMpLÈte D’Un an Les ventilateurs encastrés, ainsi que toutes leurs pièces et accessoires, à l’exception des articles indiqués ci-dessous*, sont garantis contre tout défaut de matériau ou de fabrication lors d’une utilisation normale dans un foyer pendant une période de douze (2) mois à compter de la date d’achat originale. Viking Range Corporation, le garant, accepte de réparer ou de remplacer, à son choix, toute pièce s’avérant défectueuse pendant la période de garantie. Aux fins de cette garantie, une utilisation normale dans un foyer n’inclut pas l’utilisation de ce ventilateur de hotte avec une surface de cuisson munie d’un gril. La garantie Viking ne s’applique pas aux produits de ventilation d’appoint, non fournis par Viking, utilisés avec des ensembles de tirage vers le bas ou de ventilateur Viking. La présente garantie inclue, mais non de manière limitative, des appareils comme des ventilateurs auxiliaires ou des ventilateurs en ligne. Toute défaillance des produits de ventilation Viking directement attribuable à l’utilisation de tels équipements n’est pas couverte par la garantie Viking. Les pièces peintes et décoratives sont garanties contre tout défaut de matériau ou de fabrication pour une période de quatre-vingt-dix (90) jours à compter de la date d’achat originale. TOUT DÉFAUT DOIT ÊTRE SIGNALÉ AU DÉTAILLANT DANS CETTE PÉRIODE DE QUATRE-VINGT-DIX (90) JOURS À COMPTER DE LA DATE D’ACHAT ORIGINALE. garantie LiMitée De cinQ anS Tout moteur de ventilateur qui s’avère défectueux en raison d’un défaut de matériau ou de fabrication lors d’une utilisation normale dans un foyer à compter de la deuxième année à la cinquième année suivant la date d’achat originale sera réparé ou remplacé, gratuitement pour les pièces, et le propriétaire assumant tous les autres frais, y compris ceux de main-d’œuvre. Cette garantie s’adresse à l’acheteur original du produit ci-présent garanti et à ses propriétaires successifs pendant le terme de cette garantie. Cette garantie s’applique aux produits achetés et installés aux États-Unis et au Canada. Les produits doivent avoir été achetés dans le pays ou la réparation est requise. Les travaux couverts par cette garantie doivent être effectués par une agence de réparation ou un représentant agréé de Viking Range Corporation. Cette garantie ne s’applique pas aux dommages découlant d’un abus, accident, désastre naturel, panne d’alimentation électrique du produit pour quelque raison que ce soit, ni modification, utilisation à l’extérieur, installation inadéquate, utilisation inadéquate, réparation ou entretien inadéquats du produit par quiconque autre qu’une agence de réparation ou un représentant agréé de Viking Range Corporation. Cette garantie ne s’applique pas aux utilisations commerciales. Le garant décline toute responsabilité quant aux dommages indirects ou consécutifs pouvant découler ou non de l’inobservation d’une garantie, de la violation d’un contrat ou de toute autre cause. Certaines juridictions interdisant l’exclusion ou la limitation des dommages indirects ou consécutifs, il se peut que la limitation ou l’exclusion ci-dessus ne s’applique pas à vous.
