Summary of Contents for Viking EDDBB363R

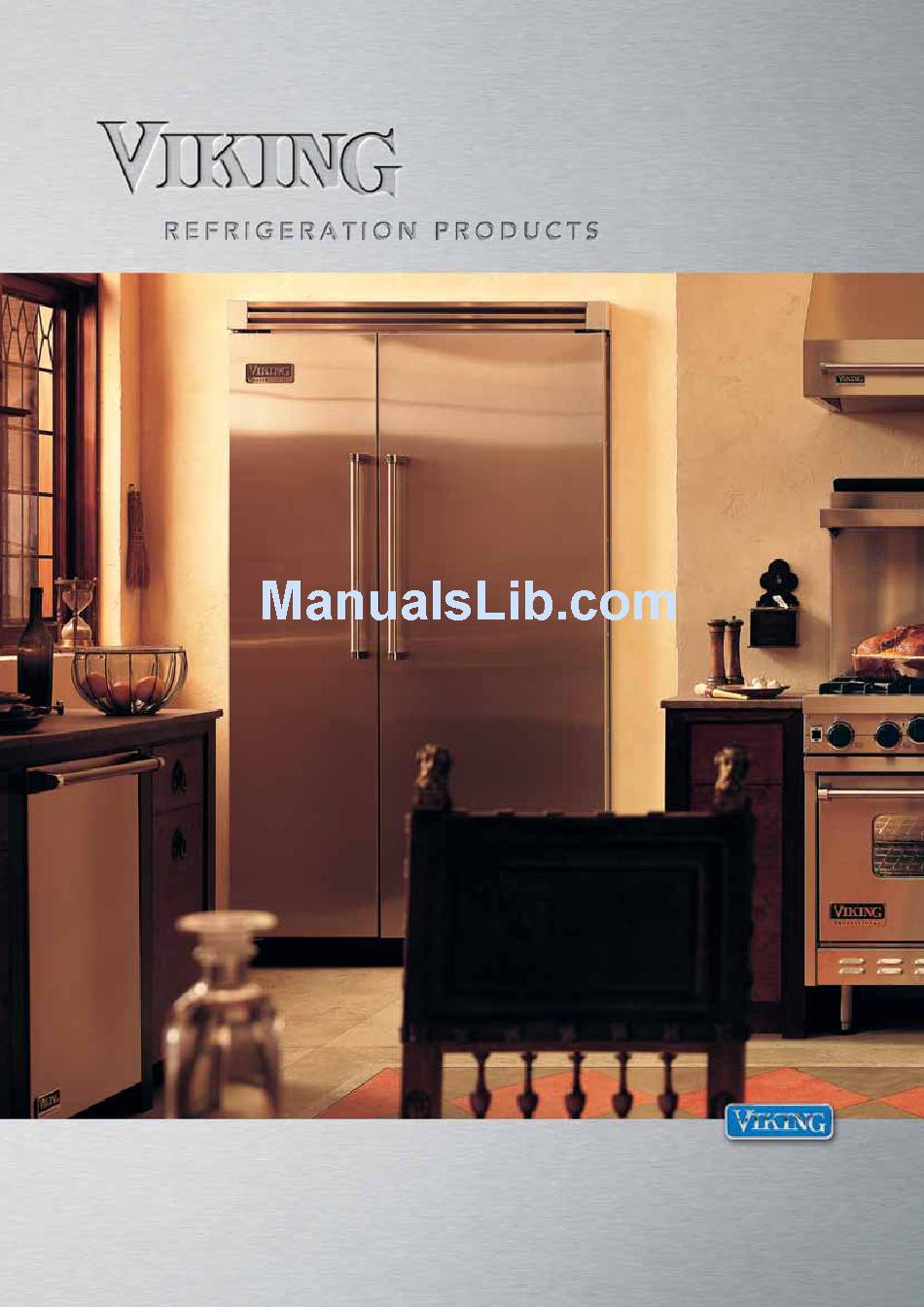

  • Page 1 ® Professional Performance for the Home ™...
  • Page 2 Viking line of professional-quality refrigeration products. The refrigerator/freezers keep fruits, vegetables and meats in ideal climate conditions. Full-height wine cellars maintain three separate temperature zones, including a long-term storage cellar. Undercounter wine cellars keep bottles within easy reach, while undercounter refrigerated beverage centres provide handy cold storage.
  • Page 4 Built-in, 122 cm and 107 cm wide side-by-side Frost-free refrigerator professional features ProChill ™ Temperature Management System ■ • Single compressor system includes the quietest, most technologically advanced compressor available • Electronic controls maintain temperature within 1 degree C • Multi-channel airflow system removes odours and...
  • Page 5 Professional model in Mint Julep Two dairy compartments The 776 L, 122 cm wide with see-through, lift-up covers side-by-side refrigerator/freezers provide additional storage have room for everything from for special dairy products pineapples to parfaits. (122 cm wide model shown).
  • Page 6 Formed front door panels and distinctive side trim ■ Dual-magnet door seal system automatically closes ■ door when it is within 30 degrees of the refrigerator or freezer compartment Door stops are factory set at 110 degree swing; ■ easily adjust to 90 or 120 degree swing White interior with stylish accents ■...

  • Page 7: Optional Accessories

    Premium water filter provides a cleaner water and ice ■ supply by filtering bad tastes, odours, sediment, and harmful contaminants • Conveniently located in bottom of refrigerator compartment for easy removal and installation of replacement filter cartridges Standard accessories Two wine trivets can each store one bottle of wine ■...
  • Page 8 Built-in, 91 cm wide bottom-mount refrigerator/ EVCBB363R – 91 cm wide Professional model in Mint Julep EVCBB363R – EDDBB363R – Professional model Designer model...
  • Page 9 ■ shelves are adjustable to allow customised shelf placement The three-drawer Chill Zone may be set five degrees colder than refrigerator temperature. Two in-the-door dairy compartments with ■ see-through, lift-up covers Additional storage in five large door bins – four ■...
  • Page 10 True 61 cm deep product – door and cabinet design ■ allows the refrigerator to fit flush into a 61 cm deep installation cutout, thus allowing a uniform installation that blends into the cabinetry (Designer model)

  • Page 11: Installation Accessory

    182 cm wide stainless steel upper grille kit ■ (Professional – BRTGK72SS; Designer – DBRTGK72SS) • For use with installation of two 91 cm wide bottom-mount refrigerator/freezers side-by-side • Creates a “single unit” look Optional accessories Professional stainless steel side panel kits ■...
  • Page 12 Full overlay models EDFBB363L Full Overlay model Custom handles EDFSB423 Full Overlay model Custom handles EDFSB423D Full Overlay model with dispenser Custom handles...
  • Page 13 ■ front panels; customer may purchase Viking Professional or Designer handles, or opt for custom handles Fully integrated depth allows refrigerator to fit flush ■ with countertops or cabinet and drawer fronts Concealed trim capability allows refrigerator to be ■...
  • Page 14 61 cm wide refrigerated beverage centres EVUAR140FL – 61 cm wide Professional model EVUAR140 EVUAR140F EDUAR140 EDUAR140F Professional model Professional model Designer model Designer model Clear glass Fluted glass Clear glass Fluted glass...
  • Page 15 Professional features Top wire shelf has 16,5 cm flip-up section to chill or ■ store open wine bottles or large containers Two full-depth, tempered-glass shelves, combined ■ with the top wire shelf, hold 148 0,33 L cans Full-depth shelves create distinct temperature zones ■...
  • Page 16 76 cm wide built-in, full-height wine cellars EVCWB300R – 76 cm wide Professional model The Viking wine cellars are available in a clear glass door or fluted glass door. EVCWB300 EVCWB300F Professional model Professional model Clear glass Fluted glass EDDWB300 EDDWB300F Designer model Designer model...
  • Page 17 Professional features Temperature control Exclusive TriTemp ™ Storage System provides three ■ independent temperature zones • Preserves different types of wine at optimal serving temperatures • Settings are adjustable in each zone from 6-18 degrees C Electronic control centre constantly monitors and ■...
  • Page 18 Exclusive glass control pad Full Overlay models Blend seamlessly into cabinetry with locally supplied ■ front panels; customer may purchase Viking Professional or Designer handles, or opt for custom handles Fully integrated depth allows wine cellar to fit flush ■ with countertops or cabinet and drawer fronts Concealed trim capability –...
  • Page 19 The Electronic Control Center maintains the desired temperature in each zone within 1 degree C. EDFWB300R – 76 cm wide Full Overlay model with custom handle Coated shelves reduce vibration and hold bottle snugly in place.
  • Page 20 61 cm wide wine cellars EDUAR140FR – 61 cm wide Designer undercounter refrigerated beverage center EDUWC140R – 61 cm wide Designer wine cellar shown with custom side panels and top EVUWC140 EVUWC140F Professional model Professional model Clear glass Fluted glass EDUWC140 EDUWC140F Designer model...
  • Page 21 Professional features Seven wire shelves store up to 50 wine bottles ■ horizontally, keeping corks moist • Full-width shelves pull out for easy access • Shelves can be removed to store large bottles Inside temperature can be adjusted from ■ 5-18 degrees C •...
  • Page 22 (DDWB only) All brass components have a durable, protective ■ coating for maintenance-free normal use Viking Range Corporation uses the most up-to-date ■ process and best materials available to produce all colour finishes. However, slight colour variation may be...
  • Page 23 Refrigerated beverage centres and undercounter wine cellars – installation configurations Single Stacked Side-by-side PROFESSIONAL DESIGNER stainless steel black stainless steel white almond biscuit stone gray biscuit graphite gray burgundy lemonade mint julep stone gray forest green viking blue graphite gray cobalt eggplant black...
  • Page 24 CE Energy Label Inlet Water Requirement 0,6 cm copper tubing – Minimum 1,5 bar; Maximum 8 bar Overall Interior Capacity Refrigerator – 524 L; Freezer – 252 L; Total capacity – 776 L Approximate Shipping Weight 261 kg Description Overall Width...
  • Page 25 1 2 2 C M W I D E S I D E - B Y - S I D E EDDSB483 Designer side trim – 60,5 cm top grille – 61,0 cm bracket – 66,0 cm B Y - S I D E W I T H I C E A N D W A T E R D I S P E N S E R EDDSB483D Designer side trim –...
  • Page 26 CE Energy Label Inlet Water Requirement 0,6 cm copper tubing – Minimum 1,5 bar; Maximum 8 bar Overall Interior Capacity Refrigerator – 425 L; Freezer – 255 L; Total capacity – 680 L Approximate Shipping Weight 236 kg Description Overall Width...
  • Page 27 1 0 7 C M W I D E S I D E - B Y - S I D E EDDSB423 Designer side trim – 60,5 cm top grille – 61,0 cm bracket – 66,0 cm B Y - S I D E W I T H I C E A N D W A T E R D I S P E N S E R EDDSB423D Designer side trim –...
  • Page 28 Inlet Water Requirement 0,6 cm copper tubing – Minimum 1,5 bar; Maximum 8 bar Overall Interior Capacity Refrigerator – 431 L; Freezer – 145 L; Total capacity – 576 L Approximate Shipping Weight 212 kg * Full Overlay models (with 1,9 cm panels) fit flush in 63,5 cm deep cabinet openings with no protrusion into room, except for handles.
  • Page 29 9 1 C M W I D E B O T T O M - M O U N T EDDBB363 EDFBB363 Designer Full Overlay side trim – 60,5 cm To front edge of side trim – 60,5 cm top grille – 61,0 cm To front edge of top grille –...
  • Page 30 Basic specifications – refrigeration products Description Overall Width 60,6 cm Overall Height from Bottom Minimum 86,7 cm; Maximum 88,9 cm Overall Depth from Rear 68,3 cm to end of handle Cutout Width 61,0 cm* Cutout Height Minimum 87,0 cm; Maximum 89,2 cm Cutout Depth 61,0 cm Electrical Requirements...
  • Page 31 6 1 C M W I D E W I N E C E L L A R EVUWC140 EDUWC140 Professional Designer 68,3 cm to end of handle 64,5 cm to end of handle 50 bottles...
  • Page 32 Basic specifications – full-height wine cellar Description Overall Width 76,2 cm Overall Height from Bottom Minimum 210,5 cm; Maximum 212,7 cm Overall Depth from Rear To rear of side trim – 56,4 cm To front of top grille – 62,2 cm To front edge of handle –...
  • Page 33 7 6 C M W I D E W I N E C E L L A R EDDWB300 Designer side trim – 60,5 cm grille – 61,0 cm handle – 66,0 cm EDFWB300 Full Overlay To front edge of side trim – 60,5 cm To front of top grille –...
  • Page 34 Notes...
  • Page 35 © 2004, Viking Range Corporation Specifications subject to change without notice. All refrigeration products All models with standard equipment are design-certified for residential installation.
  • Page 36 ® V i k i n g E u r o p e S A S E s p a c e E u r o p e e n d e 1 ’ E n t r e p r i s e 7 , r u e d e C o p e n h a g u e F 6 7 3 0 0 S c h i l t i g h e i m F r a n c e...
