Harness Connection - Panasonic RM-1300A Service Manual

RM-1300A/RM.-1400A

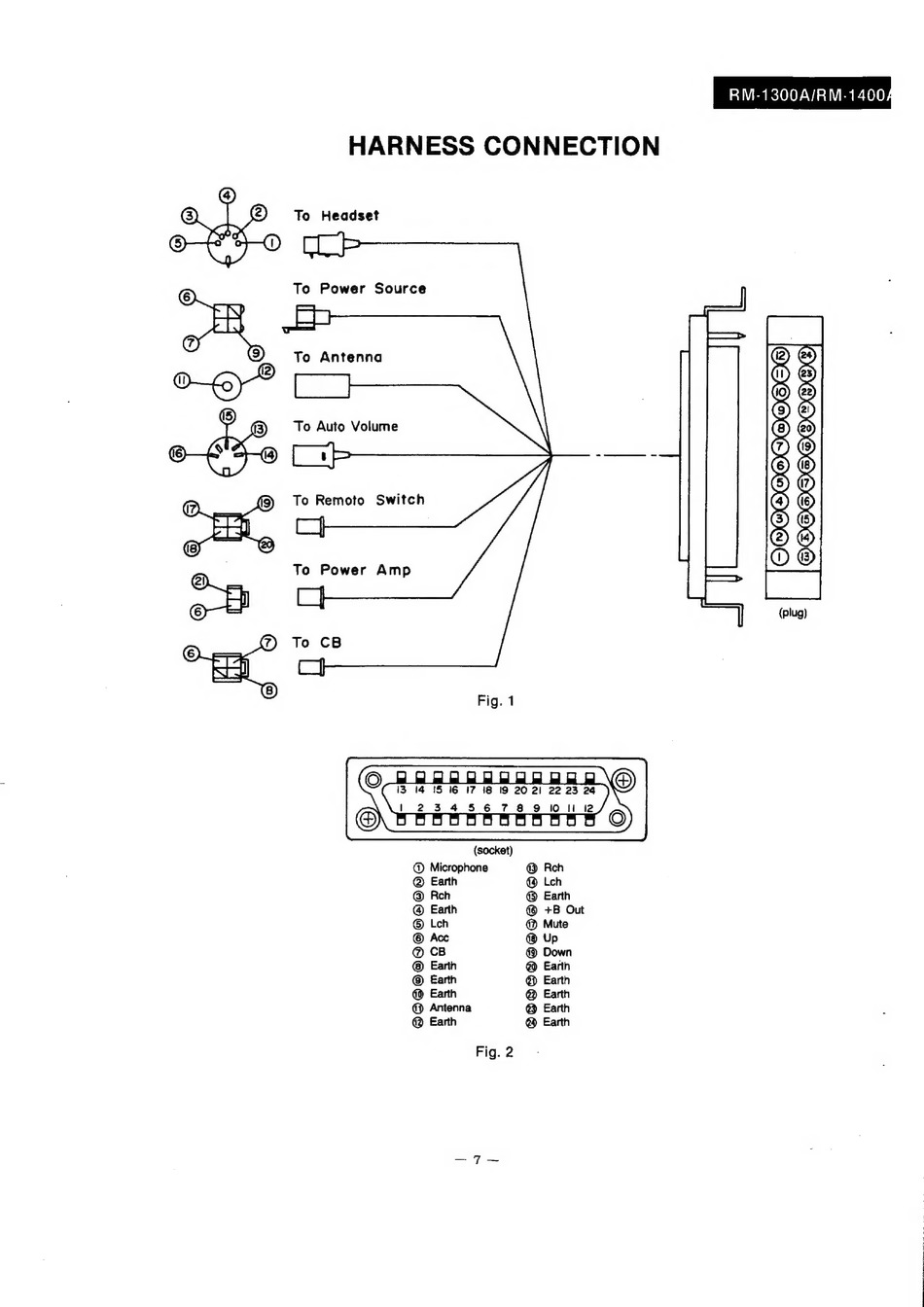

HARNESS CONNECTION
To Headset
To Power Source
To Antenna
To Auto Volume
To Remoto Switch
OOLOO@OOOO
To Power Amp
(plug)
Fig. 1
(socket)
@ Microphone @ Reh
@ Earth @ Lech
@® Reh @® Earth
@ Earth @ +B Out
© Lech @ Mute
© Acc @ Up
@ CB @® Down
Earth @ Earth
Earth @ Earth
@ Earth @ Earth
@ Antenna @ Earth
@® Earth @ Earth
Fig. 2
