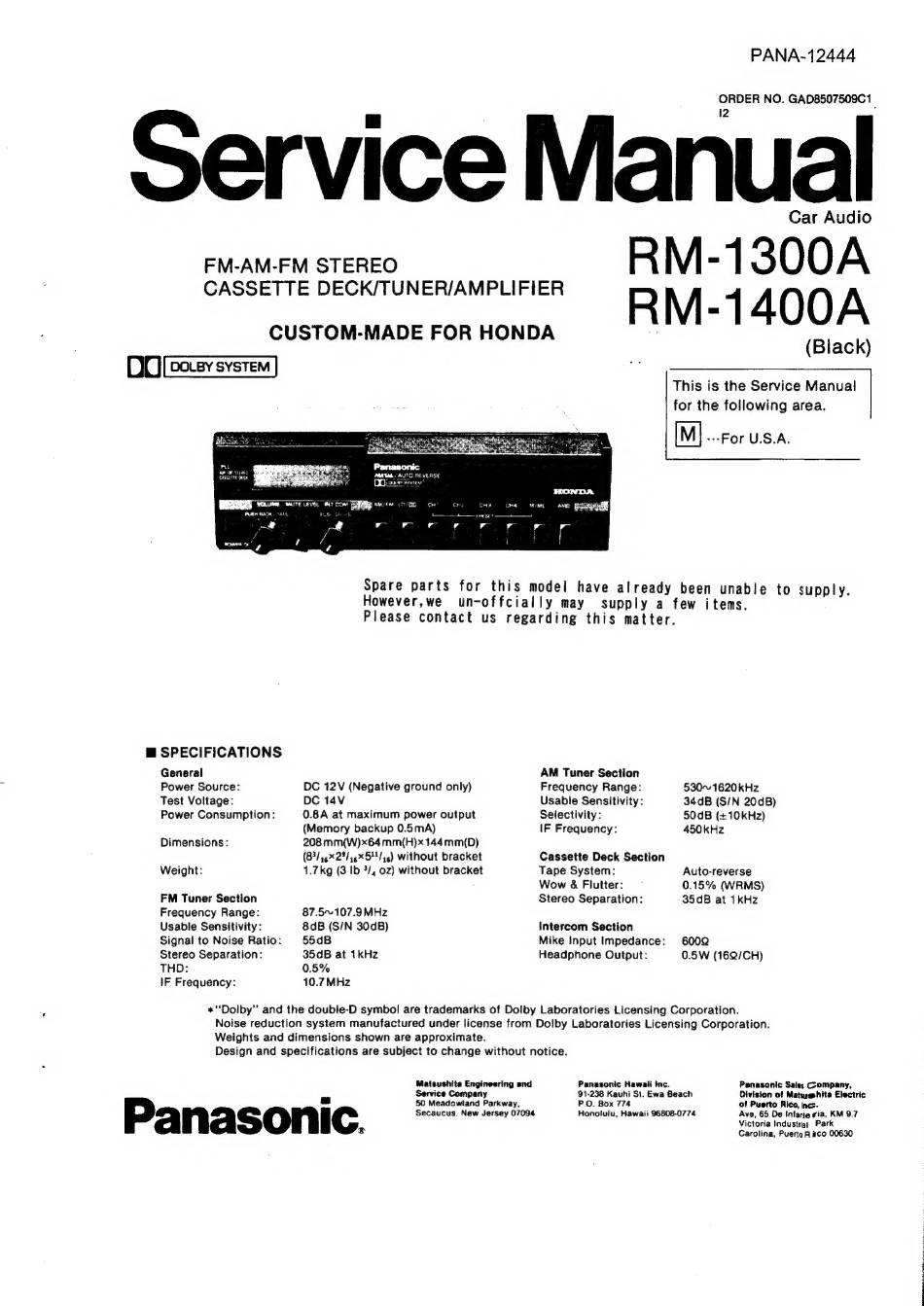

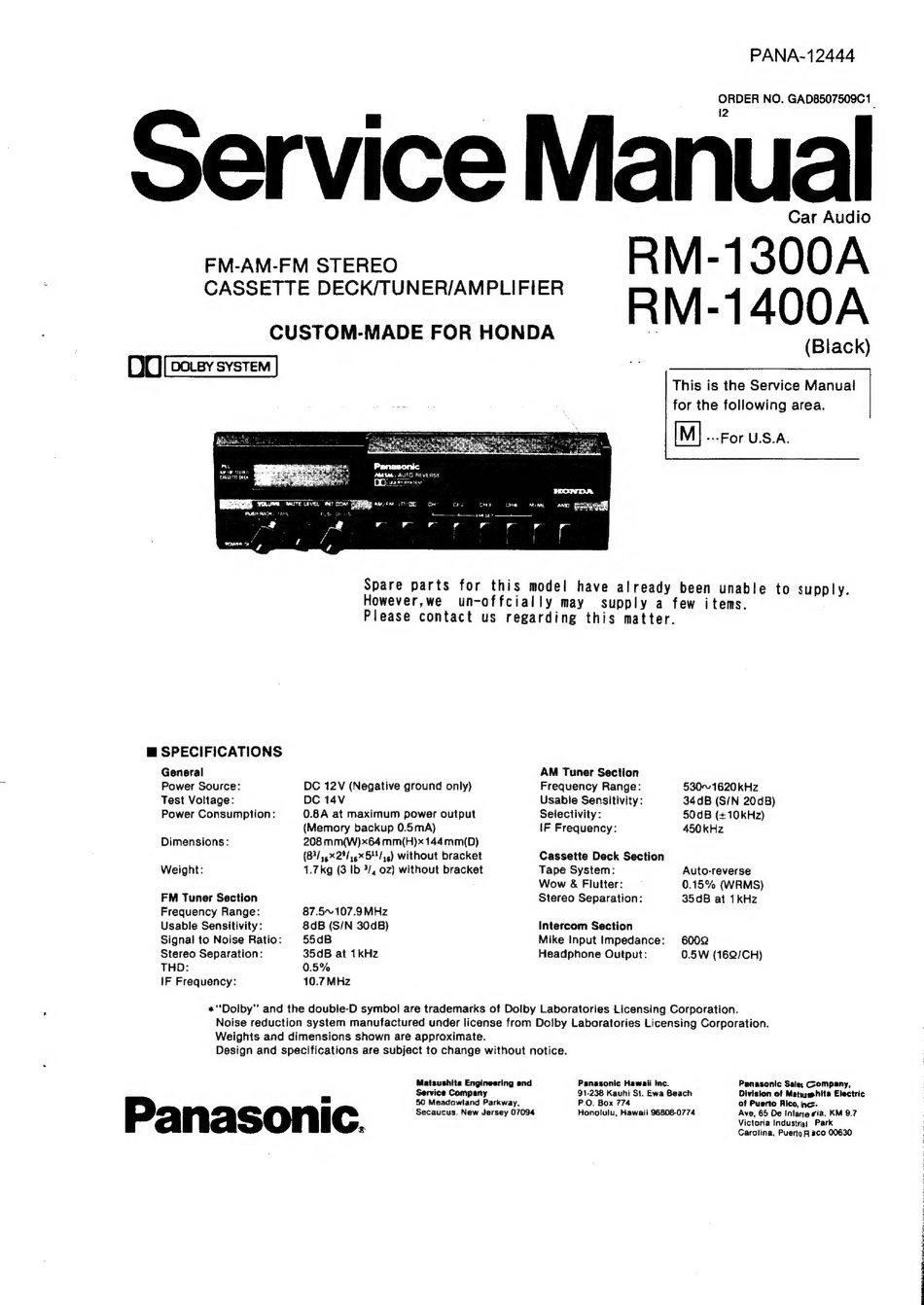

Panasonic RM-1300A Service Manual

PANA-12444
ORDER NO. GAD8507509C1 |
12 anual
Car Audio
Service M
FM-AM-FM STEREO R M 1 300A
CASSETTE DECK/TUNER/AMPLIFIER R M 7 7 400A
(Black)
CUSTOM-MADE FOR HONDA
DO [arsvsre)
This is the Service Manual
for the following area.
[M] For U.S.A.
Be,
mL i
Ae ie tps80 i w F
bye bel AAR. AUTO REVERSE
DO io sew
Ea WOUDIRE MUTE LEVER WT Cow Rs ame oD On cee
PUSH RADE. any H G 5h + rn st ) —
i aes [an as r r
@ SPECIFICATIONS
General AM Tuner Section
Power Source: DC 12V (Negative ground only) Frequency Range: §30~1620 kHz
Test Voltage: DC 14V Usable Sensitivity: 34dB (S/N 20dB)
Power Consumption: 0.8A at maximum power output Selectivity: 50dB (+10kHz)
(Memory backup 0.5mA) (F Frequency: 450kHz
Dimensions: 208 mm(W)x64 mm(H)x 144 mm(D)
(83/,,*29/,,*5'4/,,) without bracket Cassette Deck Section
Weight: 1.7kg (3 Ib 3/, oz) without bracket Tape System: Auto-reverse
Wow & Flutter: 0.15% (WRMS)
FM Tuner Section Stereo Separation: 35dB at 1kHz
Frequency Range: 87.5~107.9MHz
Usable Sensitivity: 8dB (S/N 30dB) Intercom Section
Signal to Noise Ratio: 55dB Mike Input Impedance: 6002
Stereo Separation: 35dB at 1kHz Headphone Output: 0.5W (162/CH)
THD: 0.5%
IF Frequency: 10.7 MHz
*"Dolby" and the doubie-D symbol are trademarks of Dolby Laboratories Licensing Corporation.
Noise reduction system manufactured under license from Dolby Laboratories Licensing Corporation.
Weights and dimensions shown are approximate.
Design and specifications are subject to change without notice.
Matsushita Engineering end Panasonic Hawaii Inc. Panasonic Sale; Company,
Service Company 91-238 Kauhi S1. Ewa Beach Division of Matyushita Electric
50 Meadowland Parkway, P.O. Box 774 of Puerto Rico, nc.
a
Secaucus. New Jersey 07094 Honolulu, Hawaii 96808-0774 Ave, 65 De Infanie via, KM 9.7
Victoria Industrial Park
8 Carolina, Puerto R sco 00630
|
