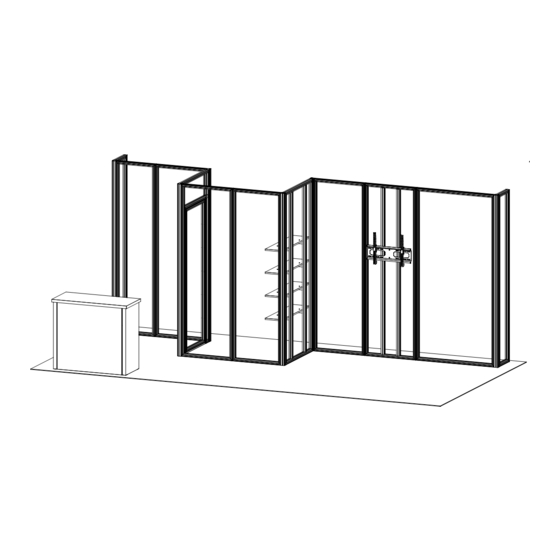

- Page 1 © 2023 Order #XXXXX GK-2007 - 10’ x 20’ Display 10’ 20’ Plan View SETUP INSTRUCTIONS If you would like to tell us about your experience with your setup instructions please email us at info@classicexhibits.com...
- Page 2 © 2023 Order #XXXXX GK-2013 Plan View = 1 sq foot...
-
Page 3: Side-By-Side
© 2023 Order #XXXXX General Information General Setup Instructions Assembly Assembly Cont’d - Read entire setup instruction manual prior to Push pin lock into hole of connecting frame. unpacking parts and pieces. Note: Block on pin lock will secure in groove. - The setup instructions are created specifically for this configuration. - Page 4 © 2023 Order #XXXXX Crate Packing CRATE PACKING Crate 1 of 1...
-
Page 5: Front View
© 2023 Order #XXXXX Backwall Assembly Item Qty. Description Steps: 14.125”w x 95”h Gravitee Panel Refer to the Gravitee Assembly general information page. 95”h Gravitee Corner Post 23”w x 95”h Gravitee Panel 1) Assemble Gravitee panels & posts [1] through [17] 30”w x 95”h Gravitee Panel in numerical order as shown. - Page 6 © 2023 Order #XXXXX Backwall Graphics Light Attachment Lock Clip into Groove of SEG Graphic Installation Steps: Horizontal Extrusion, then 1) Apply SEG graphics to backwall panels as shown. slide Light onto Clip. Lock into groove of 2) Connect lights to top of panels where indicated. See Light Attachment detail.
-
Page 7: Back View
© 2023 Order #XXXXX Backwall Attachments Item Qty. Description Steps: 37.75”w x 10”d Shelf w/ (2) 9” extrusions 1) Install Monitor Mount to vertical extrusions in panel [14]. Large Monitor Mount Monitor Mount Attachment detail. 2) Attach Shelves to vertical extrusions in panel [11]. Shelf Attachment detail. - Page 8 © 2023 Order #XXXXX GOD-1558 Counter Assembly Item Qty. Description Steps: 38”h Gravitee Corner Post w/ Door Attachment 1) Assemble Gravitee panels and posts in numerical order, as shown, 14.125”w x 38”h Gravitee Panel Frame making sure Velcro is facing inward. See Gravitee Panel Assembly 38”h Gravitee Corner Post sheet, for instruction.
-
Page 9: Completed Assembly
© 2023 Order #XXXXX GOD-1558 Counter Assembly (cont’d) Steps: 1) Wrap SEG Graphic around front and sides of assembled counter. See SEG Graphic Installation sheet for instruction. 2) Connect shelf supports to Velcro, then place shelf on top of supports. 3) Lock counter top to panels [26] and [31].
