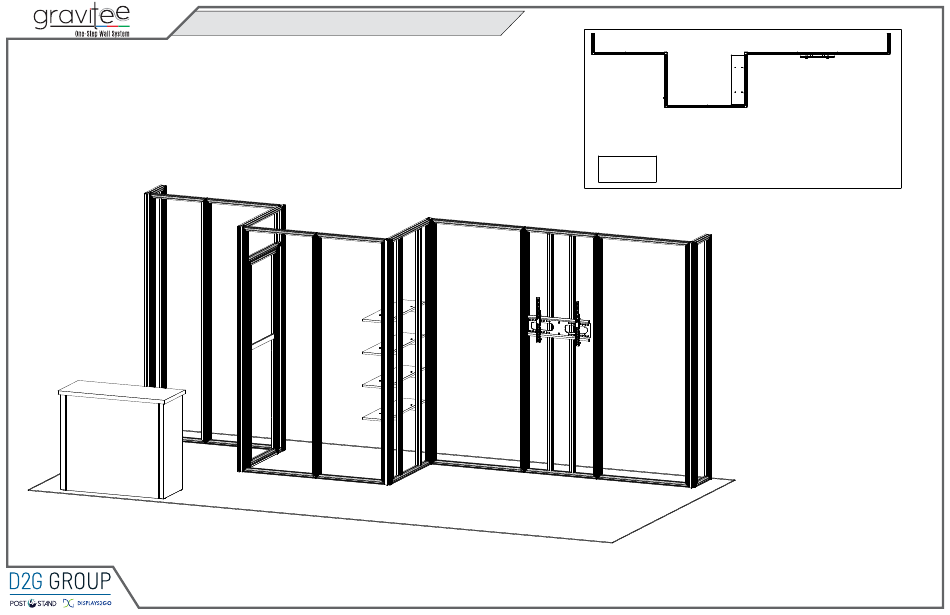

- Page 1 © 2024 REV 04/2024 GK-2007 - 10’ x 20’ Display 10’ 20’ Plan View SETUP INSTRUCTIONS If you would like to tell us about your experience with your setup instructions please email us at info@classicexhibits.com...
- Page 2 © 2024 GK-2007 Plan View Hinges = 1 sq foot...
- Page 3 © 2024 General Information All Gravitee frames are fully assembled. DO NOT DISASSEMBLE FRAMES. General Setup Instructions Assembly Assembly Cont’d - Read entire setup instruction manual prior to Push pin lock into hole of connecting frame. unpacking parts and pieces. Note: Block on pin lock will secure in groove.
- Page 4 © 2024 SEG Installation SEG Graphic Installation Graphic Removal Corner A Corner B Corner D Corner C Step 1 Step 2 Step 3 It is important to first insert To remove the graphic from Insert corner A. Turn edge of Repeat Step 1 for opposite Once all corners are inserted, graphic into each alternate...
- Page 5 © 2024 Crate Packing Retain all packing materials. DO NOT DISCARD. 27/28/29/30 2,5,7 10,12,16 Packing Order: Shelf Monitor 23”w Mount 28.5”w 14.125”w 1,17 30”w Setup Hardware 30”w 30”w Lights 38”w Shelves 38”w +Door (qty. 4) 38”w 38”w Graphics Graphics Graphics bottom Counter 1/2/3/25/32...
-
Page 6: Do Not Disassemble
© 2024 Backwall Assembly Item Qty. Description Steps: 14.125”w x 95”h Gravitee Panel Refer to the Gravitee Assembly general information page. 95”h Gravitee Corner Post 23”w x 95”h Gravitee Panel 1) Assemble Gravitee panels & posts [1] through [17] 30”w x 95”h Gravitee Panel in numerical order as shown. -
Page 7: Front View
© 2024 Backwall Graphics Light Attachment Lock Clip into Groove of SEG Graphic Installation Steps: Horizontal Extrusion, then 1) Apply SEG graphics to backwall panels as shown. slide Light onto Clip. Lock into groove of 2) Connect lights to top of panels where indicated. See Light Attachment detail. -
Page 8: Back View
© 2024 Backwall Attachments Item Qty. Description Steps: 37.75”w x 10”d Shelf w/ (2) 9” extrusions 1) Install Monitor Mount to vertical extrusions in panel [14]. Large Monitor Mount Monitor Mount Attachment detail. 2) Attach Shelves to vertical extrusions in panel [11]. Shelf Attachment detail. - Page 9 © 2024 GOD-1558 Counter Assembly Item Qty. Description Steps: 38”h Gravitee Corner Post w/ Door Attachment 1) Assemble Gravitee panels and posts in numerical order, as shown, 14.125”w x 38”h Gravitee Panel Frame making sure Velcro is facing inward. See Gravitee Panel Assembly 38”h Gravitee Corner Post sheet, for instruction.
-
Page 10: Completed Assembly
© 2024 GOD-1558 Counter Assembly (cont’d) Steps: 1) Wrap SEG Graphic around front and sides of assembled counter. See SEG Graphic Installation sheet for instruction. 2) Connect shelf supports to Velcro, then place shelf on top of supports. 3) Lock counter top to panels [26] and [31]. See Counter Top Lock detail.
