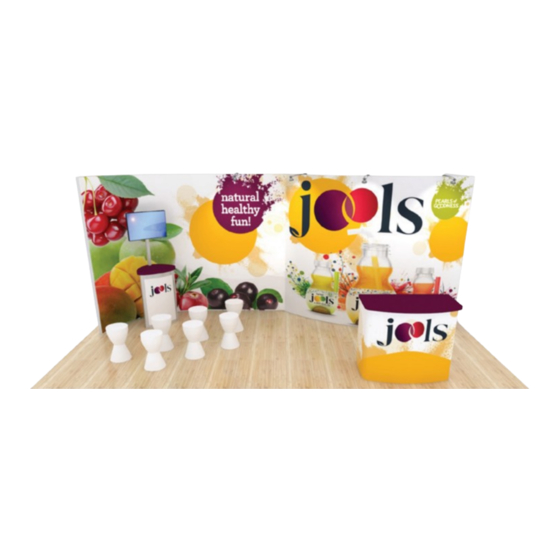

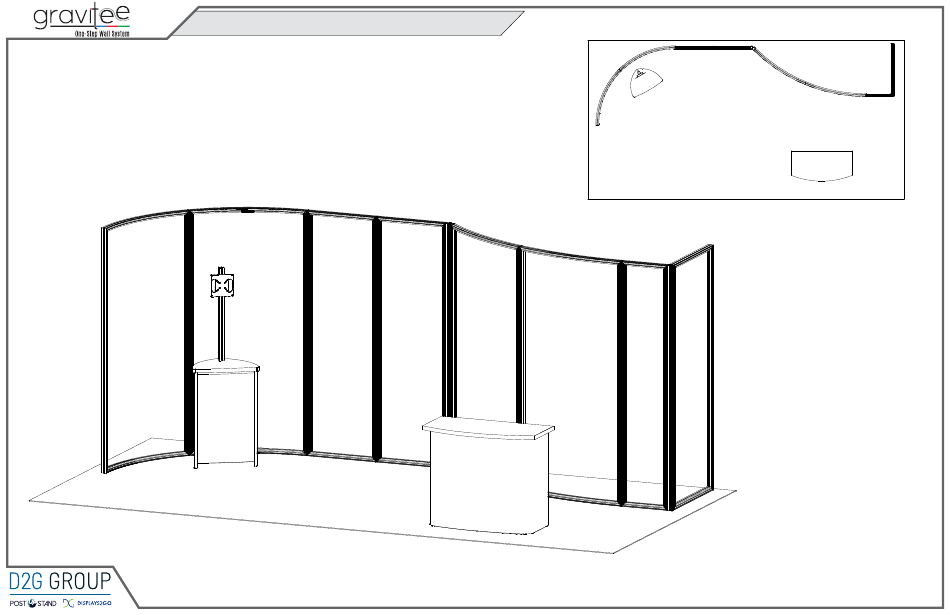

- Page 1 © 2023 Order #XXXXX GK-2009 - 10’ x 20’ Display 10’ Top View 20’ SETUP INSTRUCTIONS If you would like to tell us about your experience with your setup instructions please email us at info@classicexhibits.com...
- Page 2 © 2023 Order #XXXXX GK-2013 Plan View = 1 sq foot...
-
Page 3: Side-By-Side
© 2023 Order #XXXXX General Information General Setup Instructions Assembly Assembly Cont’d - Read entire setup instruction manual prior to Push pin lock into hole of connecting frame. unpacking parts and pieces. Note: Block on pin lock will secure in groove. - The setup instructions are created specifically for this configuration. - Page 4 © 2023 Order #XXXXX Crate Packing CRATE PACKING Crate 1 of 1...
-
Page 5: Front View
© 2023 Order #XXXXX Backwall Assembly Item Qty. Description Steps: 38”w x 95”h Gravitee Panel Refer to the Gravitee Assembly general information page. 94.5”h Gravitee corner post w/ caps 19”w x 95”h Gravitee Panel 1) Assemble Gravitee panels & posts [1] through [10] 46”w x 95”h curved Gravitee Panel in numerical order as shown. - Page 6 © 2023 Order #XXXXX Backwall Attachments Light Attachment Lock Clip into Groove of SEG Graphic Installation Steps: Horizontal Extrusion, then 1) Apply SEG graphics to backwall panels as shown. slide Light onto Clip. Lock into groove of 2) Connect lights to top of panels where indicated. See Light Attachment detail.
-
Page 7: Completed Assembly
© 2023 Order #XXXXX MOD-1561 Monitor Stand Assembly Monitor Mount Item Qty. Description Steps: 38” GS210 Vertical Extrusion 1) Attach [4] and [5] between [1] [2] and [3]. 38” S30 Vertical Extrusion 2) Slide floor between [1] [2] and [3] to rest on [4] and [5]. 38”... -
Page 8: Back View
© 2023 Order #XXXXX GOD-1560 Counter Assembly Item Qty. Description Steps: 37.5”h Gravitee Corner Post w/ caps & door hinge Refer to the Gravitee Assembly general information page. 11.5”w x 38”h Gravitee Panel 37.5”h Gravitee Hinged Connector 1) Assemble Gravitee panels & posts [11] through [18], 18.327”w x 38”h curved Gravitee Panel in numerical order as shown. - Page 9 © 2023 Order #XXXXX GOD-1560 Counter Assembly (cont’d) Steps: 1) Wrap SEG Graphic around front & sides of Counter, as shown. 2) Attach Shelf Supports using Velcro; place Internal Shelf. 3) Place Counter Top on top of assembly & secure in place. Top View When assembled Counter Top...
