Congratulations on your new FAME DD-Lite V2!
Thank you for choosing a FAME product. Thanks to efficient development and economical produc-
tion, FAME makes high-quality products at a fantastic price possible.
Please read these operating instructions carefully to be informed about all functions of this pro-
duct and keep them for future reference
Have fun with your new product!
Your FAME Team
Guarantee:
The current general terms and conditions and guarantee
conditions of Music Store professional GmbH apply.
Can be viewed under: www.musicstore.de
If you have any questions or suggestions,
please contact us:
Music Store professional GmbH
Istanbulstr. 22-26
51103 Köln
Managing Director: Michael Sauer
WEEE-Reg.-Nr. DE 41617453
Tel: +49 221 8884-0
Fax: +49 221 8884-2500
info@musicstore.de
Intended use:
The product FAME DDLite V2 was designed for use as an electronic drum set. By striking the
pads, an electronic module simulates an artificial drum sound in various forms and can optionally
be played via headphones or external speakers. Incorrect use of the product is considered
improper and can lead to physical injury or property damage.
Damage resulted by improper use is not liable.
It must be ensured that the device is operated exclusively by trained and expert users who are
in full possession of their mental, physical and sensory abilities. Use of other persons is expressly
permitted only at the request of a person responsible for their safety who instructs or supervises
the use.
Attention!
Please tighten the mesh heads properly after assembly!
20

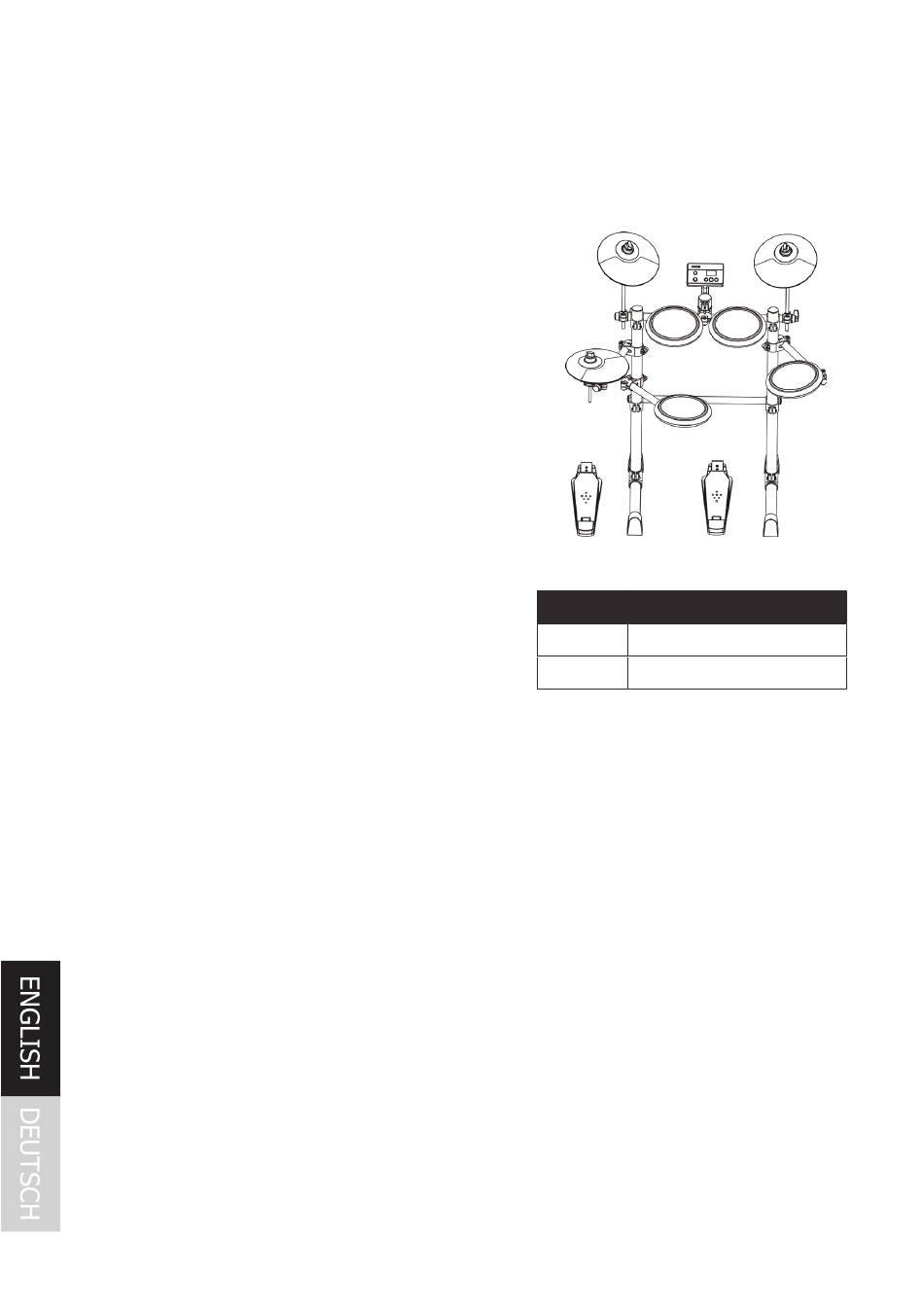

Scope of delivery:
Quantity
Content
1x
Digital Drum Set
1x
Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DD-Lite V2 and is the answer not in the manual?

Questions and answers

Related Manuals for FAME DD-Lite V2

Summary of Contents for FAME DD-Lite V2

  • Page 1 Intended use: The product FAME DDLite V2 was designed for use as an electronic drum set. By striking the pads, an electronic module simulates an artificial drum sound in various forms and can optionally be played via headphones or external speakers. Incorrect use of the product is considered improper and can lead to physical injury or property damage.
  • Page 2 Important safety instructions! Please read before connection! CAUTION! (Electro Magnetic Interference) The normal function of the product may be disturbed by Strong Electro Magnetic Interference. If so, simply reset the product to resume normal operation by following the owner‘s manual. In case the function could not resume, please use the product in other location.
  • Page 3 Hint! (Operating conditions) Due to its structural characteristics, the device is designed for indoor operation (IP20). Never expose the device to rain, moisture or liquids as this may cause damage. Vibrations, dust or solar radiation can also lead to damage, avoid them! Do not apply excessive force to the switches or controls.
  • Page 4 THE FCC REGULATION WARNING (for USA) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 5: Table Of Contents

    Contents: PRODUCT FEATURES.......25 PANEL & FUNCTION DESCRIPTION Front panel...........26 Pedal Adjust..........27 Other Buttons Pattern Function......27 Drum Kit............27 Playing Techniques........28 SETUP Connecting the Pads and Pedals.....29 Setup Manual..........30 SPECIFICATIONS........33 TROUBLESHOOTING.........34 CLEANING..........35 ENVIRONMENTAL PROTECTION....35 MIDI IMPLEMENTATION CHART....36...

  • Page 6: Product Features

    Product Features: Enjoy Playing Connect the DD-Lite V2 electronic kit to drum amp. Adjust the sound level and choose different sound patterns. Play quietly with headphones connect. Enjoy playing alone and not disturb others. Updated Mesh Drum Head All the Tom drums and Snare use mesh heads, which are feeling much better and quieter.

  • Page 7: Panel & Function Description

    Panel and Function Description: 1. [POWER] Knob 6. AUX IN Jack (3.5mm) Press to turn On power/ Press and hold to For connecting an extra audio player, for turn Off power. example MP3 and so on via stereo plug. You can enjoy playing the drum along with your 2.

  • Page 8: Pedal Adjust

    Pedal Adjust: Infl uenced by humidity and temperature, the sensitivity of the pedals might differ. If this happenes, adjust the sensitivity by following steps. When power OFF, press and hold [POWER] and [METRONOME] buttons to enter the pedal adjust mode. When the Display shows „bdF“, stamp down the bass drum pedal and hold. The [metronome] button lights up green and orange until the bass drum pedal setup is fi nshed.

  • Page 9: Playing Techniques

    Playing Techniques: This section introduces various performance functions to make your performance professional. Similar to an acoustic drum kit, the digital drum responds differently to various playing tech- niques and dynamics. All the pads are velocity sensitive. And some voices change timbre depending on the striking force. Only the snare drum can detect both head shot and rim shot.

  • Page 10: Setup

    Setup: Caution! To prevent electric shock and damage to the device, make sure the power is switched OFF on the drum and all related device before making any connection. Connecting the Pads and the Pedals Standard configuration: KICK, SNARE (dual-zone trigger), TOM 1~3 (dual-zone trigger), CRASH (dual-zone trigger with choke), RIDE (triple-zone trigger with choke), HI-HAT (dual-zone trigger), PEDAL(HI-HAT).

  • Page 11: Setup Manual

    Setup Manual: WARNING! Drum key can be pinched when adjusting clamps with drum key. Operate carefully. Be careful around pipe ends, inside the pipe, screw ends and metal shavings, etc. May injure your fi ngers. Please tighten the mesh heads properly after assembly!

  • Page 14: Specifications

    Specifications: Drum Kit Contents Crash Cymbal, Hi-hat, Ride Cymbal, Tom Drum 1-3, Snare Drum, Hi-Hat Pedal, Bass Drum Pedal Drum Sound Kit Quantity Metronome Tempo: 40-240 BPM Beat: 1-8 LCD Screen 3 digit numbers by tubes Interface AUDIO IN (3.5mm), PHONES (3.5mm), AUX IN (3.5mm), USB B MIDI port, DB25 drums signal cables, AC/DC adapter port Control Buttons Power, Main Volume Button (0-100), Metronome Button, [‡]/[ˆ]...

  • Page 15: Troubleshooting

    Troubleshooting: The following overview is intended as an aid to rapid troubleshooting. If you are unsure, contact the manufacturer, the dealer or appropriate specialist personnel. Never open the device by your- self! Symptom Troubleshooting Cannot power on Make sure the power adaptor is connected properly. Make sure the batteries are installed correctly.

  • Page 16: Cleaning

    Cleaning: A regular cleaning of the device from impurities and dust increases the durability of the product. Always disconnect the device from the power supply before cleaning it! Never clean the appli- ance wet! Optical lenses should be cleaned with a dry microfiber cloth to optimize light output. Ventilation grilles and openings should always be cleaned of dust and dirt.

  • Page 17: Midi Implementation Chart

    MIDI Implementation Chart: Function Transmitted Recognized Remarks Basic Default 10ch 1 16 Channel Changed Deafult Mode 3 Mode Messages Altered ********** ********** Note 0-127 0-127 Number True Voice ********** 0-127 Note ON 0-127 0-127 Velocity Note OFF 0-127 After Keys Touch Channels Pitch Bend...
  • Page 18 Notes Dokument-ID: MS-DRU0038935-000 (03/2020)
