PRELIMINARY OPERATIONS

Connect the Microphone

Connect the microphone on the rear panel of the
micnode aux device to the microphone port.

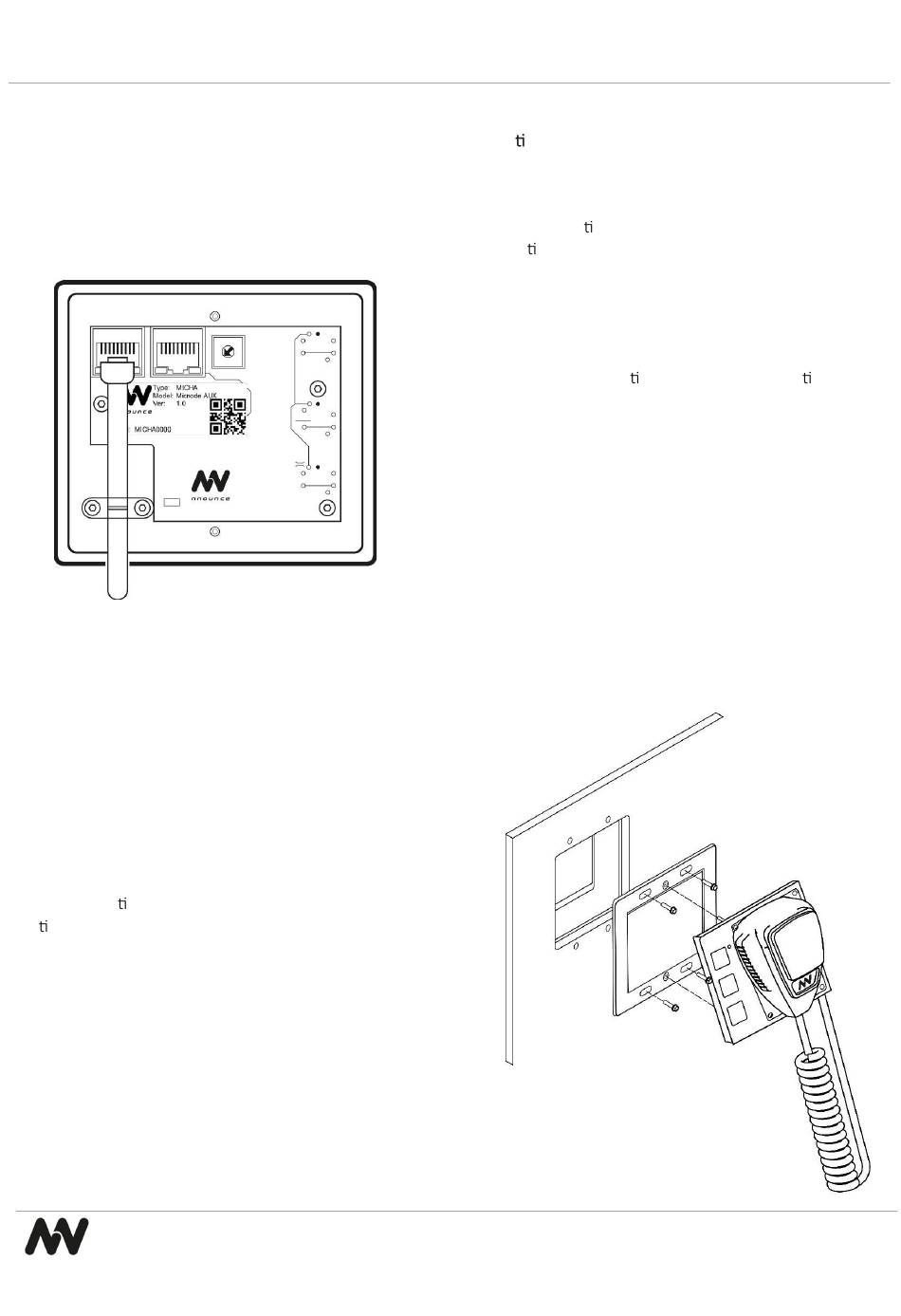

1. Remove the two screws holding the clamp for cable
fixing on the rear panel.
2. Connect the microphone to the port marked as
MIC.
3. Secure the microphone cable with the clamp for
cable fixing with the two screws.
4. Push the cable through the cutout in the chase.
Use the magne c docking plate on the front panel to
posi on the microphone.
nnounce TM by Simpleway
Loca on
Wall-mount the device
For wall-moun ng of the micnode aux device prepare the
respec ve place on the wall and the necessary cabling.
IMPORTANT: The cutout on the wall should not be larger
than 700 x 550 mm.
The screws for moun ng the microphone sta on are not
included in the packaging. Use screws that are
appropriate for the surface that the device will be
mounted to.
1. Prepare the cutout and cables for the device.
2. Remove the two long screws on your device
from the docking plate.
3. Use four screws to attach the mounting bracket
to the wall and then put the LAN cable through
the mounting bracket opening.
4. Attach the device with the two screws from the
docking plate to the mounting bracket.
