Chapter 14
Network Destination:
route. This IP address cannot be on the same subnet with the WAN IP or LAN IP of
Router A. In the example, the IP address of the company network is the destination
IP address, so here enter 172.30.30.1.
Subnet Mask:
Determines the destination network with the destination IP address.
If the destination is a single IP address, enter 255.255.255.255; otherwise, enter
the subnet mask of the corresponding network IP. In the example, the destination
network is a single IP, so here enter 255.255.255.255.
Default Gateway:
will be sent. This IP address must be on the same subnet with the router's IP which
sends out data. In the example, the data packets will be sent to the LAN port of
Router B and then to the Server, so the default gateway should be 192.168.0.2.
Interface:
Determined by the port (WAN/LAN) that sends out data packets. In the
example, the data are sent to the gateway through the LAN port of Router A, so
WLAN
should be selected.
Description:
Enter a description for this static routing entry.
5 Click SAVE.

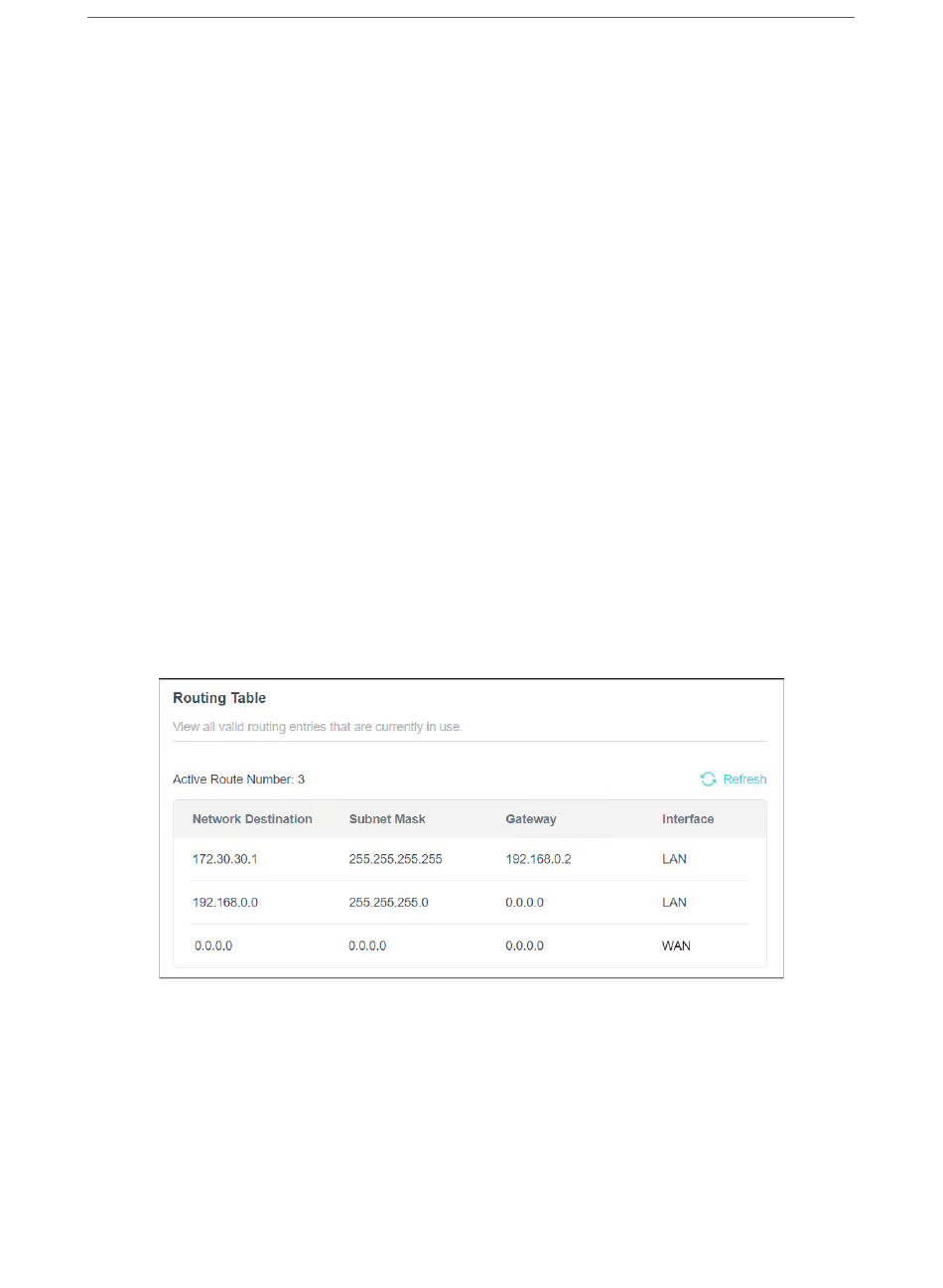

6 Check the
Routing Table
is set successfully.
Done!
Open a web browser on your PC. Enter the company server's IP address to visit the
company network.
The destination IP address that you want to assign to a static
The IP address of the gateway device to which the data packets
below. If you can find the entry you've set, the static routing
Customize Your Network Settings
LAN/
82
