Summary of Contents for Nacecare NX1K CRL8055/100T

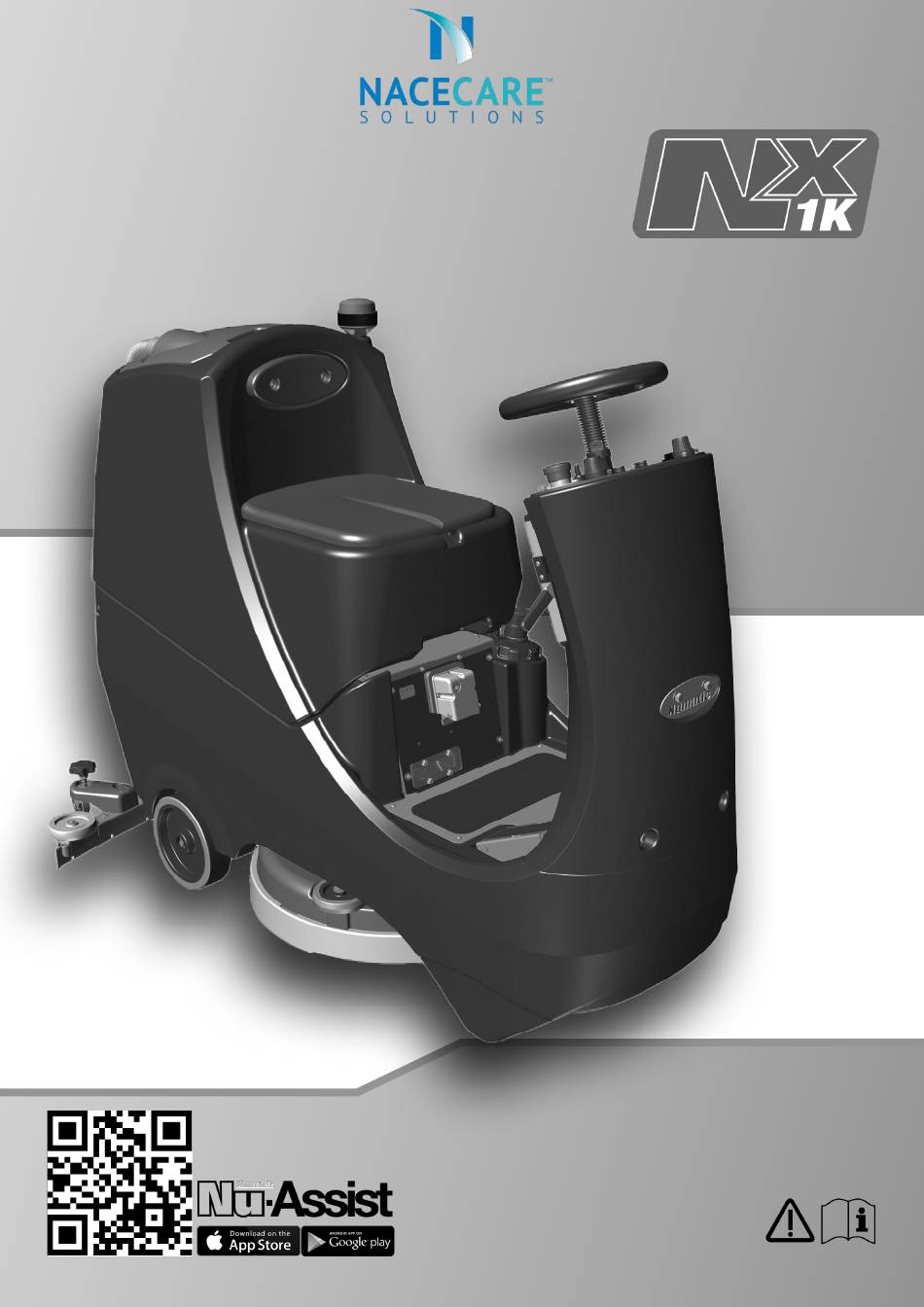

- Page 1 CRL8055/100T CRL8072/100T R I D E - O N S C R U B B E R D RY E R Original Instructions CAUTION, Read instructions before using the machine Keep for future reference numatic.com...
-
Page 2: Table Of Contents
Index PLEASE READ Machine Overview .........Pages 2-3 BEFORE COMMENCING OPERATION Control Panel Overview .........Page 4 Machine Set up Guide .........Page 5 After the removal of all the packaging, Fitting the Hose Guide .........Page 6 carefully open and check the contents Fitting the Floor Tool .........Page 6 ●... -
Page 3: Machine Overview
Machine Overview... -
Page 4: Control Panel Overview
Control Panel Overview... -
Page 5: Machine Set Up Guide
Machine Set-up Guide PLEASE READ BEFORE COMMENCING ANY OPERATION AFTER THE REMOVAL OF ALL THE PACKAGING, CAREFULLY OPEN AND CHECK THE CONTENTS. CONTENTS ● Owner Manual ● Battery Charging Lead ● 2 x Keys ● 30 Amp Fuse Use handle grip when ●... -
Page 6: Fitting The Hose Guide
Machine Set-up Guide Fitting the Hose Guide The U-bend in the hose prevents water spillage when the vacuum is switched off. Refit vacuum hose to the floor tool when finished. Refit vacuum hose to the Note: DO NOT push the vacuum hose Floor tool when finished. -
Page 7: Raise / Lower Brush Deck
Machine Set-up Guide Always ensure that the machine is switched off Raise Brush Deck/ Fitting the Brush/ before making any Lower Brush Deck adjustments. CRL 8072 Twin Brush Raise brush deck. Brush deck raised position. Slide brush under machine. Brush in place. Lower brush deck. -
Page 8: Filling The Clean Water Tank
Machine Set-up Guide Always ensure that the machine is switched off before making any adjustments. Filling the Clean Water Tank The CRL 8055/8072 is equipped with a large capacity 80 litre clean water tank, allowing for large areas to be covered in a single fill. To fill clean water tank, extend fill hose. -
Page 9: Machine Operation
Machine Operation IMPORTANT Do not operate machine unless the operator manual has been read and fully understood. Drive the machine to the cleaning site. Before cleaning operation, place out appropriate warning signs and sweep or dust-mop the floor. When ready for cleaning lower the floor tool (page 6) and the brush deck (page 7). Setting the Cleaning Controls High Switch machine on. -
Page 10: Emergency Stop Button/ Horn
Machine Operation Emergency Stop Button/ Horn n an emergency, strike the emergency Horn button - for sounding a warning stop to disable the machine. signal Note: After the Emergency Stop button has been pressed the Traction LED will flash 7 times, pause and repeat until the Emergency Stop button has been reset and the machine switched off / on. -
Page 11: Machine In Use
Machine Operation Do not operate the machine on inclines that exceed 11%. Machine in Use To operate, select forward and depress the accelerator pedal. Note: The machine will not operate in reverse with the floor tool lowered. Vacuum pick-up and water flow will turn on if selected and providing the brush and floor tool are in the lowered position, the machine will move forward. -
Page 12: Machine Cleaning
Machine Cleaning Always ensure that the machine is switched off prior to any maintenance. After use, empty waste water tank using emptying hose and flush-out with clean water. Remove floor tool vacuum hose ensuring you remove the U-bend clip and flush out with clean water. -
Page 13: Free Wheel Function
Machine Cleaning Always ensure that the machine is switched off prior to any maintenance. Located in your waste water top tank is a vacuum shut off system, this prevents suction when the waste water tank is full. It also prevents foam created by high-foaming detergents from entering the motor. Sometimes the float vents get clogged and blocked, clean to ensure correct operation. -
Page 14: Changing Floor Tool Blades
Changing the Floor Tool Blades Always ensure that the machine is switched off prior to maintenance. Lower the floor tool then unscrew the retaining knobs and slide it off the holding bracket. Rinse the floor tool assembly with clean water and refit. Remove floor tool. -
Page 15: Machine Charging
Machine Charging Always ensure that the machine is switched off prior to charging. As the machine is used and the batteries are discharged, the meter lights will go out from right to left. If the battery-charge level is allowed to discharge to the point The battery meter displays the charge level of the batteries;... -
Page 16: Charging Lights Sequence
Charging Light Sequence Signal (LED) Meaning Red LED on First Phase (Constant Current Mode). Orange LED on Second Phase (Constant Voltage Mode). Third Phase (Constant Voltage Mode) Charge Complete. Green LED on However, after full re-charge, leaving the charger connected moves to float- charge mode to help to maintain a healthy balance between batteries. -
Page 17: Trouble Shooting
Contact Service Agent... -
Page 18: Rating Label / Personal Protective Equipment / Recycling
About the Machine Rating Label Company Name & Address Machine Description Supply Current / Voltage / Alternating Current / Frequency Charger Output Battery Voltage Noise Rating Hand Arm Vibration Weight (ready to use) Ingress Protection Rating Max Gradient QR Code WEEE Logo / Approvals Mark SKU / Part Machine yr/wk Serial number... -
Page 19: Information For Scrubber Dryer
Information for Scrubber Dryer READ MANUAL BEFORE USE COMPONENT INTERVAL INSPECT FOR Mains Lead DAILY Scuffi ng, cracks, splits, conductors showing Brushes DAILY Bristle damage, wear, drive collar wear Squeegee Blade BEFORE EACH USE Wear, cracks, splits Filters BEFORE EACH USE Clogging and debris retention Tanks AFTER EACH USE... - Page 20 Information for Scrubber Dryer READ MANUAL BEFORE USE Precautions when working with batteries Always wear protective clothing e.g. face visor, gloves and overalls when working with batteries. Whenever possible always use a properly designated and well-ventilated area for charging. Do not smoke or bring naked fl ames into the charging area. Remove any metallic items from hands, wrists and neck i.e.
-
Page 21: Recommended Spare Parts
Spare Parts Part No. SQUEEGEE Part No. BRUSHES Complete 650mm Squeegee Assembly Red Trim 904691 606028 550mm Polyscrub Brush CRL 8055 CRL 8055 Squeegee Blade Set - Serilor Pu Green Fr & Rr 900518 606550 550mm Nyloscrub Brush CRL 8055 CRL 8055 208497 Squeegee Castor... -
Page 22: Battery Information
Numatic Lithium-ion Rechargeable Battery 25.6V | 50Ah | 1280Wh | LFP26148129 It is important that you observe the following information and warnings! Emergency Contact Information Address: Shenzhen ACE Battery Co.,Ltd NUMATIC INTERNATIONAL LTD Room 201, BAK Technology Millfield Road, Building, No. 9 Keyan Road, Chard, Maling Community, Somerset,... - Page 23 2. HANDLING AND STORAGE DANGER! Improper handling can lead to an explosion or ignite a fire! Store batteries out of reach of children. • Only trained staff can fix the battery in the machine. • Storage temperature range: -10°C~40°C. • Temperatures must not exceed 40°C.
- Page 24 6. EXPOSURE CONTROLS, PERSONAL PROTECTION Respiratory Protection: • In case of battery venting, providing as much ventilation as possible. Avoid confined areas with venting batteries. • Respiratory Protection is not necessary under conditions of normal use. Ventilation: • Not necessary under conditions of normal use. Protective Gloves: •...
-
Page 25: 12. Warranty
10. DISTRIBUTOR TAKE-BACK / DISPOSAL • On the basis of the Battery Directive, the manufacturers take responsibility for financing collection, treatment and recycling of batteries used in devices. To this end, batteries must be handed over for disposal to the collection systems established for this under national law. Disposal of batteries together with household waste is prohibited;... -
Page 28: Company Address
This Machine Has Been Packed Distributed by: With The Following Brush / Pad Floor Tool Charging Lead Battery Fuse Pack Signed numatic.com Numatic International Limited. Chard, Somerset TA20 2GB ENGLAND Tel: 01460 68600 www.numatic.co.uk Numatic International GmbH. Fränkische Straße 15–19 D-30455 Hannover, DEUTSCHLAND Tel: 05 11 98 42 16 0 www.numatic.de Numatic International SAS.
