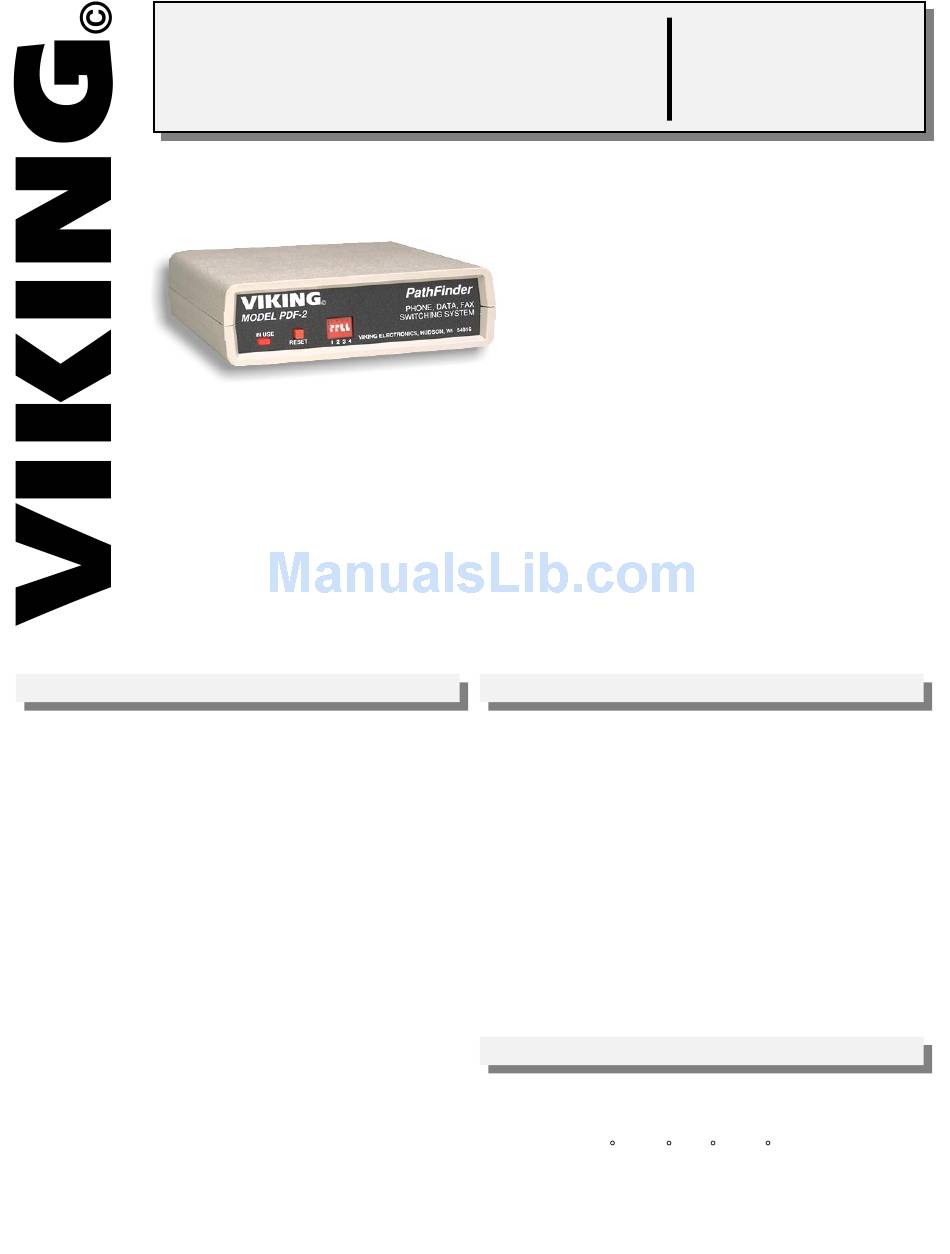

Technical Practice
Eliminate the Expense of Dedicated
The PathFinder automatically answers each call, then routes the call to the appropriate
telephone, fax, modem, point of sale terminal or other device.
All connected devices share the same line but operate independently, giving small
offices or residences big business features and convenience.
Offices with multi-line phone systems can use the last line of their system as their
fax/modem line, maximizing their line utilization.
Features
• Four ports allow any four analog devices to
share a single line
• Selectable security codes eliminate
unauthorized access
• Monitors for Calling Party Control (CPC)
• Distinctive ringing auto routing
• Outbound CNG tones for manual fax machines
• Automatic "privacy" eliminates interruptions on
both in and out bound calls
• Voice calls hear simulated ring-back tones
• Manual fax/modem calls can be transferred to
data ports using a tone or pulse phone
• Transfer from voice to fax to voice as often as
may be required during the same call
• All in and out bound calls are routed to the
phone port during a power failure
Sales...(715) 386-8861
Telecommunication Peripheral Products
http://www.VikingElectronics.com
E-mail...Sales@VikingElectronics.com
Phone Lines!
The
business, large or small, to enjoy the
convenience
transmission without the perpetual monthly
expense of a dedicated phone line.
Applications
Facsimile Machines
• Retail
• Commercial
• Industrial
Modem Terminals
• Personal computers
• Main frame computers
• Remote access applications
Point-Of-Sale Terminals
• Fast food chains
• Retail stores
• Convenience stores
Specifications
Power: 120V AC/12V DC 500mA, UL listed adapter provided
Dimensions: 127mm x 127mm x 25mm (5" x 5" x 1.5")
Shipping Weight: 1.36 kg (3 lbs)
Environmental: 0 C to 32 C (32 F to 90 F) with 5% to 95% non-
condensing humidity
CNG Detection: 1100 hz burst
Baud Rate: 33.6 maximum (subject to line condition)
Carrier Tone Detection: Steady 1000hz - 3000hz
Connections: (5) RJ11 jacks
PDF-2
PathFinder

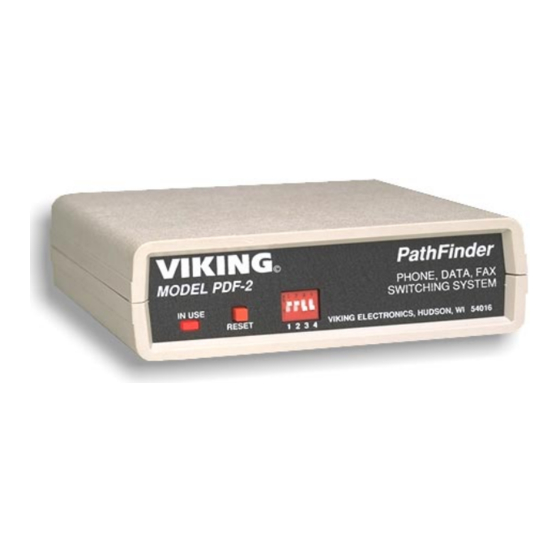

Phone/Data/Fax Switch
March 23, 2000
PDF-2 PathFinder allows any
of
automated
• Governmental
• Home office
data
