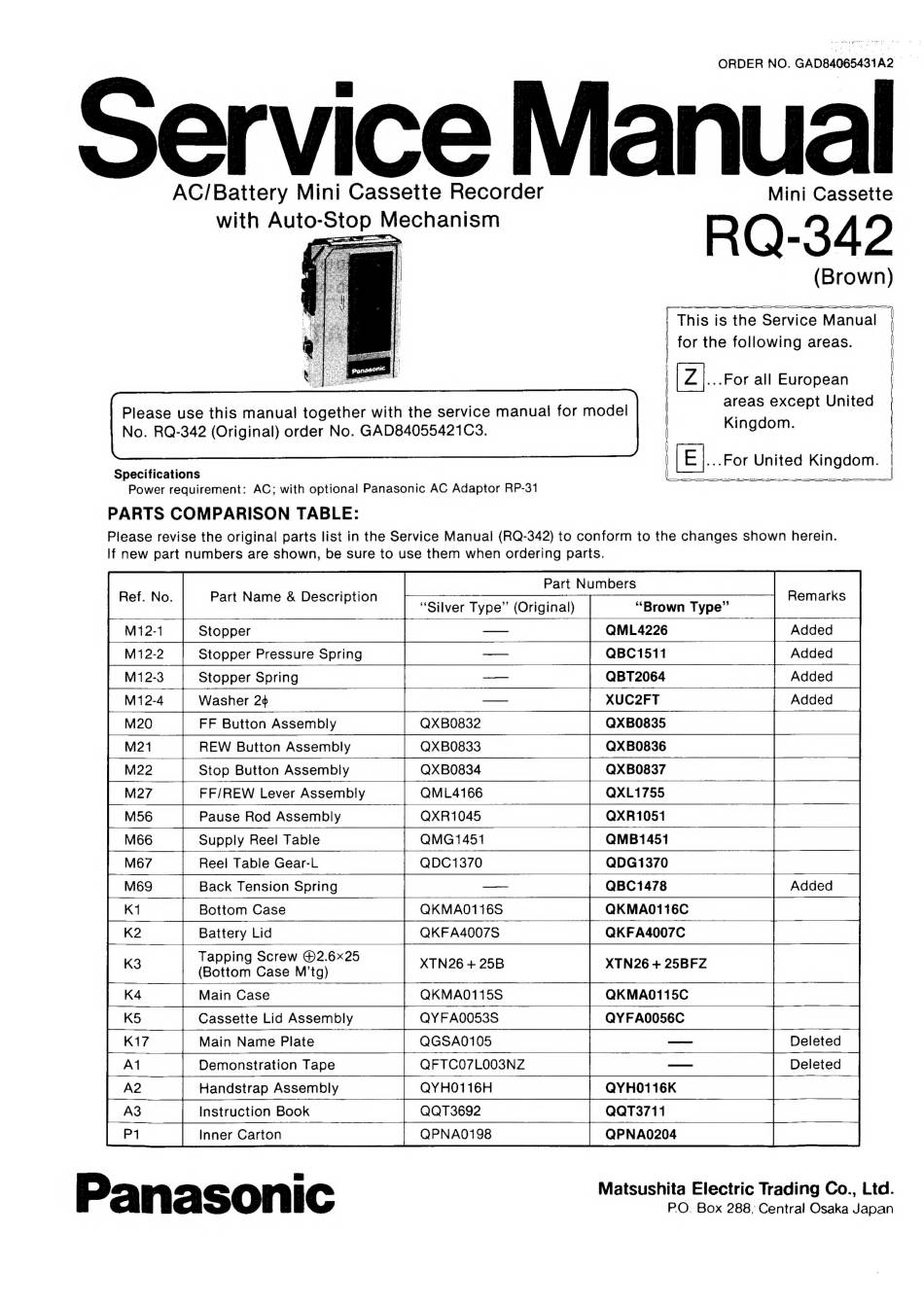

Panasonic RQ-342 Service Manual

ORDER NO. GAD84065431A2
AC/Battery Mini Cassette Recorder Mini Cassette
(Brown)
This is the service Manual
for the following areas.
| [Z|...For all European
areas except United
Kingdom.
Please use this manual together with the service manual for model
No. RQ-342 (Original) order No. GAD84055421C3.
...For United Kingdom. |
Specifications
Power requirement: AC; with optional Panasonic AC Adaptor RP-31
PARTS COMPARISON TABLE:
Please revise the original parts list in the Service Manual (RQ-342) to conform to the changes shown herein.
If new part numbers are shown, be sure to use them when ordering parts.
Part Numbers
Ref. No. Part Name & Description — Remarks
"Silver Type" (Original) "Brown Type"
M12-1 stopper — QML4226
Stopper Pressure Spring QBC1511
M12-3 stopper Spring — QBT2064 Added
M12-4 Washer 2¢ — XUC2FT Added
FF Button Assembly QXB0832 QXB0835
REW Button Assembly QXB0833 QXB0836
Stop Button Assembly QXB0834 QXB0837
FF/REW Lever Assembly QML4166 QXL1755 Ld
Pause Rod Assembly QXR1045 QXR1051
Supply Reel Table QMG1451 QMB1451
Reel Table Gear-L QDC1370 QDG1370
Back Tension Spring — QBC1478
Bottom Case QKMA0116S QKMA0116C
K2 Battery Lid QKFA4007S QKFA4007C
K
REESE etme
K4 QKMA0115S QKMA0115C
Deleted Main Name Plate QGSA0105
QFTCO7LO03NZ Deleted
QYH0116H
