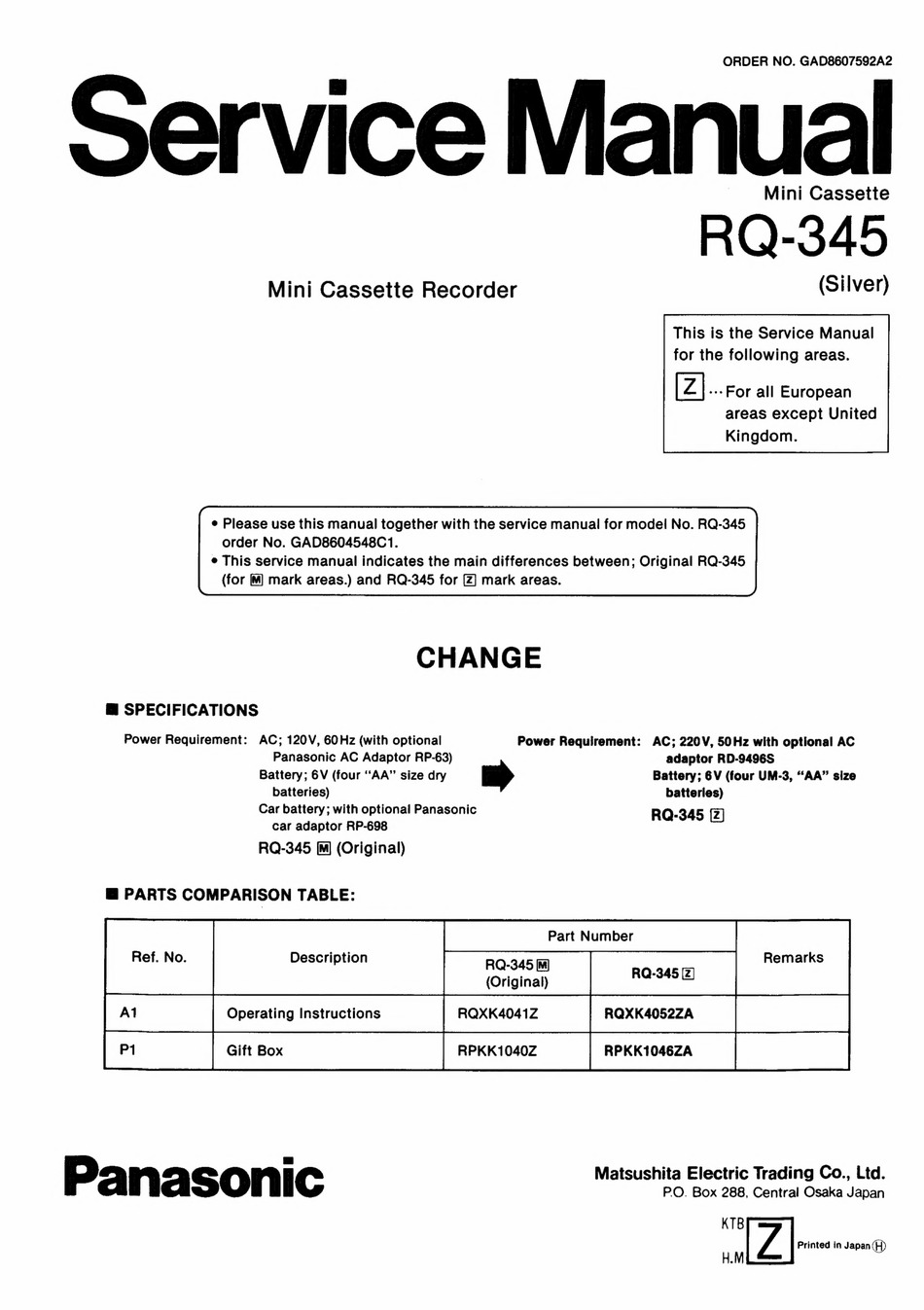

Panasonic RQ-345 Service Manual

ORDER NO. GAD8607592A2
Service Manual
Mini Cassette
RQ-345
(Silver)
Mini Cassette Recorder
This is the Service Manual
for the following areas.
---For all European
areas except United
Kingdom.
¢ Please use this manual together with the service manual for model No. RQ-345
order No. GAD8604548C1.
e This service manual indicates the main differences between; Original RQ-345
(for M) mark areas.) and RQ-345 for [2] mark areas.
CHANGE
@ SPECIFICATIONS
Power Requirement: AC; 120V, 60Hz (with optional Power Requirement: AC; 220V, 50Hz with optional AC
Panasonic AC Adaptor RP-63) adaptor RD-9496S
Battery; 6V (four ''AA" size dry > Battery; 6V (four UM-3, "AA" size
batteries) batteries)
Car battery; with optional Panasonic RQ-345 (Z]
car adaptor RP-698
RQ-345 [mM] (Original)
@ PARTS COMPARISON TABLE:
Description
RQ-345 [M]
(Original) RQ-345 (2)
pat Operating Instructions RQXK4041Z RQXK4052ZA as
——-
i
Panasonic
Matsushita Electric Trading Co., Ltd.
P.O. Box 288, Central Osaka Japan
mid
Printed in Japan HM ma
