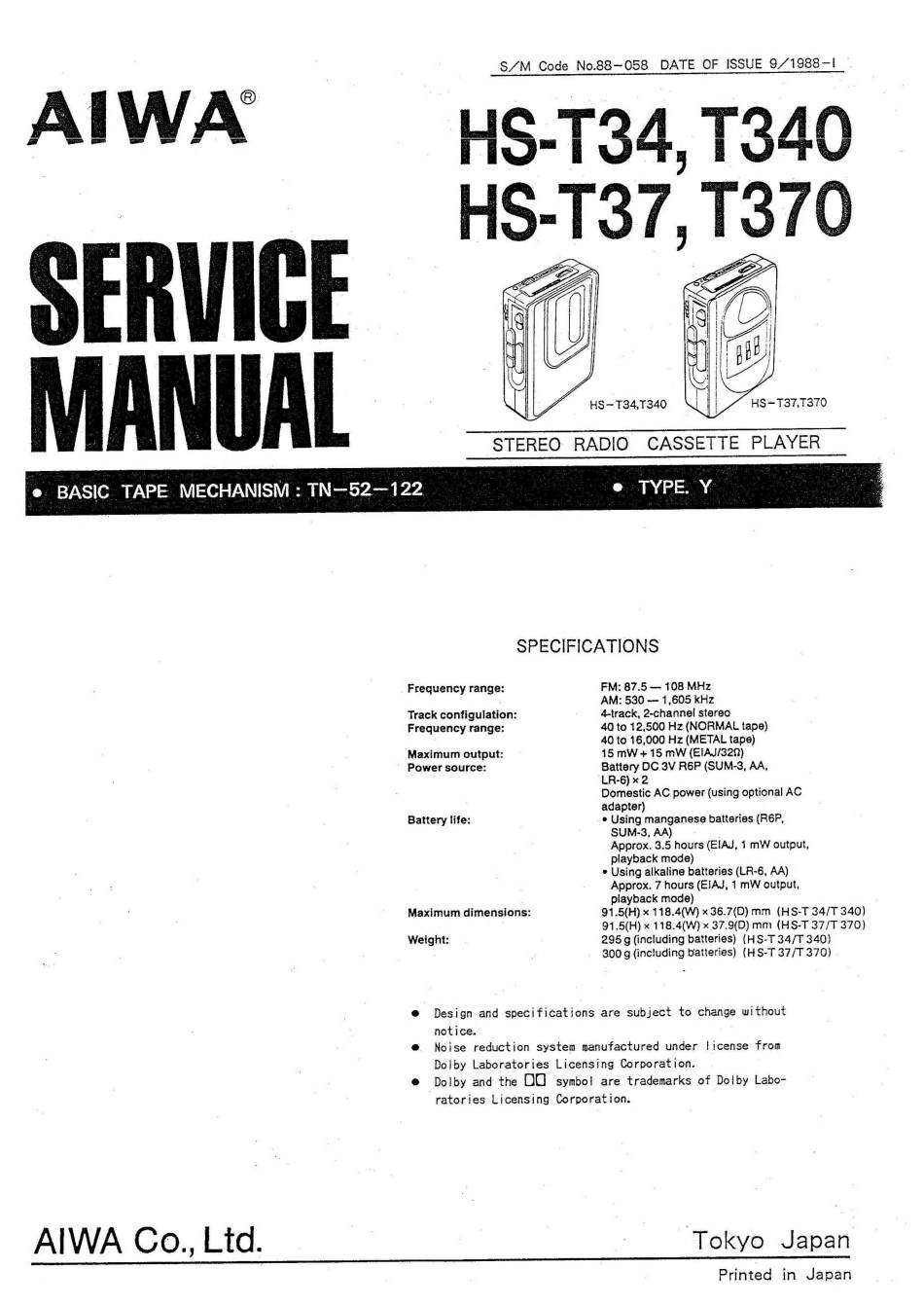

Aiwa HS-T34 Service Manual

SPECIFICATIONS
Frequency range: FM: 87.5 — 108 MHz
. AM: 530 — 1,605 kHz
Track configulation: 4-track, 2-channel stereo
Frequency range: 40 to 12,500 Hz (NORMAL tape)
40 to 16,000 Hz (METAL tape)
Maximum output: 15 mW + 15 mW (EIAJ/320)
Power source: Battery DC 3V R6P (SUM-3, AA,
LR-6) x 2
Domestic AC power (using optional AC
adapter)
Battery life: e Using manganese batteries (REP,
SUM-3, AA) .
Approx. 3.5 hours (EIAJ, 1 mW output,
playback mode)
* Using alkaline batteries (LR-6, AA)
Approx. 7 hours (EIAJ, 1 mW output,
playback mode)
Maximum dimensions: 91.5(H) x 118.4(W) x 36.7(D) mm (HS-T 34/T 340)
91.5(H) x 118.4(W) x 37.9(D) mm (HS-T 37/T 370)
Weight:
295 g (including batteries) (HS-T 34/T 340)
@ Design and specifications are subject to change without
notice.
@ Noise reduction system manufactured under l|icense from
Dolby Laboratories Licensing Corporation.
@® Dolby and the OU symbo! are trademarks of Dolby Labo-
-ratories Licensing Corporation.
Printed in Japan
