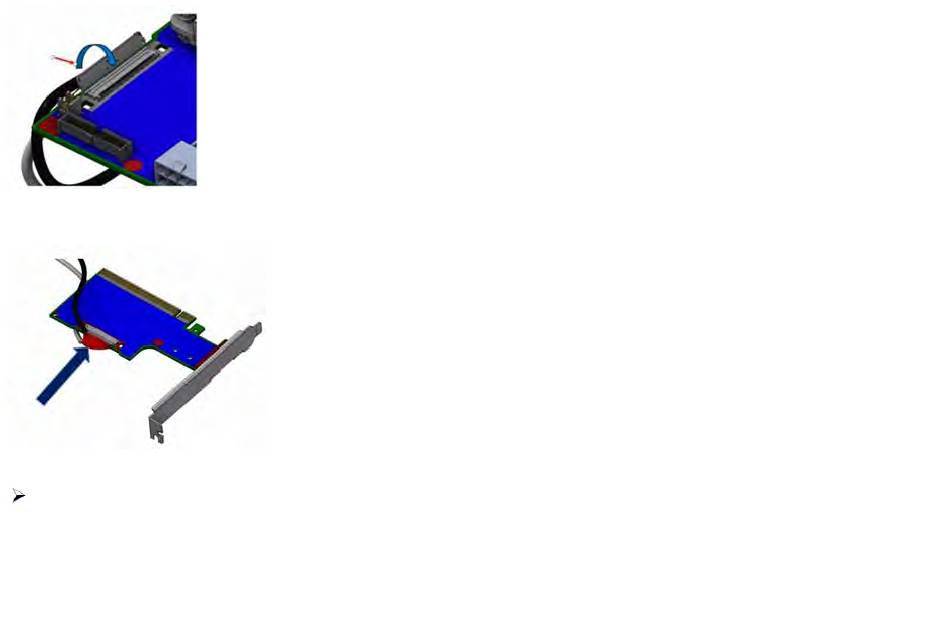

Step 3. Plug the CABLINE-CAII PLUS harness on the PCIe Auxiliary Card. As indicated on both sides of the Auxiliary connection card; plug the black
harness to the component side and the white harness to the print side.
Connect the BF1600 Controller Card in an available PCI Express slot on the JBOF system.
Step 1. Locate an available PCI Express x16 slot.
81
