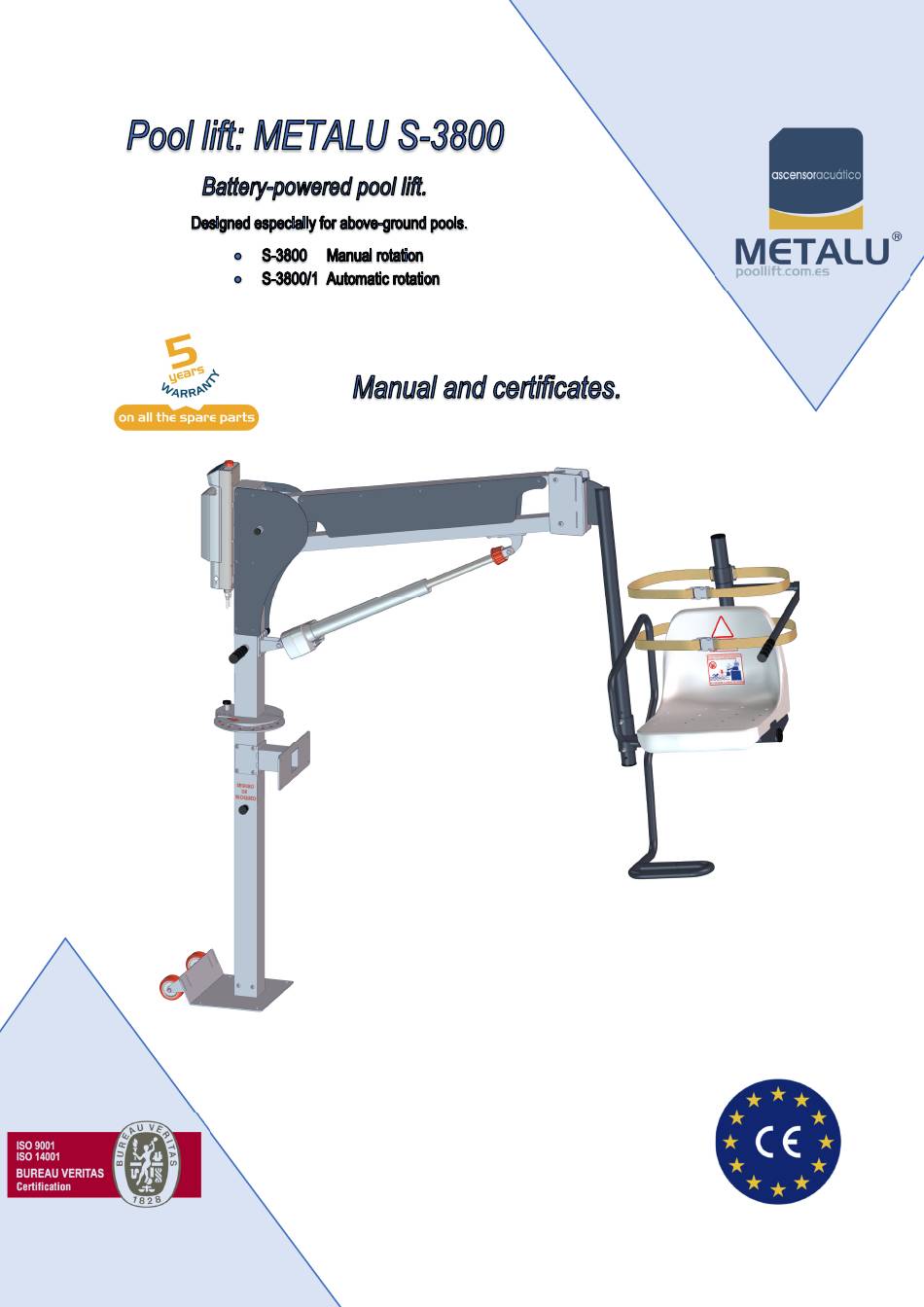

    Manual and certificates – METALU battery-powered pool lift S-3800 and S-3800/1 Contents Manufacturer information........................3 Functional characteristics........................3 Main product standards........................5 CE declaration of conformity........................ 6 Identification plate..........................7 Warranty certificate..........................7 Commissioning certificate........................8 Installation certificate.

  • Page 3: Manufacturer Information

    2. Functional characteristics. The METALU S-3800 pool lift is designed to help people with reduced mobility access swimming pools, either with assistance (S-3800) or independently (S-3800/1). It is battery powered. There is no need to connect to the mains. The design is custom to each pool. Placed on the ground, it can help user enter the pool and/or reach the raised platform.
  • Page 4 Manual and certificates – METALU battery-powered pool lift S-3800 and S-3800/1 This product has the following stand-out features: It is battery powered. There is no need to connect to the mains.  Fully customised design for every customer.  The pool lift moves in 3 stages: ...

  • Page 5: Main Product Standards

    Manual and certificates – METALU battery-powered pool lift S-3800 and S-3800/1 3. Main product standards.  The manufacturing and finish of the lift have the following characteristics: o The entire structure and accessories are made of 316 stainless steel. o The finish of the metal avoids sharp edges that could cause injuries.

  • Page 6: Ce Declaration Of Conformity

    Manual and certificates – METALU battery-powered pool lift S-3800 and S-3800/1 4. CE declaration of conformity. CE DECLARATION OF CONFORMITY The undersigned, representing the company: Company name: Manufacturas Metálicas Luisianeras, S.L Tax ID: B - 41,834,508 Address: Polígono industrial Los Motillos, C/ Madrid n.º 11 naves A, C, D, G, H, 41430.

  • Page 7: Identification Plate

    Manual and certificates – METALU battery-powered pool lift S-3800 and S-3800/1 5. Identification plate. The product shall bear a legible and indelible identification plate displaying the following information: Name and address of the manufacturer.  CE conformity marking.  Year of manufacture.

  • Page 8: Commissioning Certificate

    Manual and certificates – METALU battery-powered pool lift S-3800 and S-3800/1 7. Commissioning certificate. Manufacturer information: Company name: Manufacturas Metálicas Luisianeras, S.L. Tax ID: B – 41834508. Address: Polígono Industrial Los Motillos, C/ Madrid n.º 11 naves A, C, D, G, H, 41430.

  • Page 9: Installation Certificate

    Manual and certificates – METALU battery-powered pool lift S-3800 and S-3800/1 8. Installation certificate. Installer company: Declaration: The lift has been installed in compliance with the manufacturer’s instructions. Product: “METALU S-3800” pool lift: Manual assistant “METALU S-3800” Automatic assistant “METALU S-3800/1”...

  • Page 10: Components In The Standard Package

    Manual and certificates – METALU battery-powered pool lift S-3800 and S-3800/1 9. Components in the standard package. The standard package for the models METALU S-3800 and METALU S-3800/1 includes the following components:...

  • Page 11: Components In The Delivery

    Manual and certificates – METALU battery-powered pool lift S-3800 and S-3800/1 10. Components in the delivery. Components in the standard order delivery Weight of the Content Dimensions Type of order equipment (width, length) [mm] [kg] 1. Mast and electronic components.

  • Page 12: Dimensions Of The Lift

    Manual and certificates – METALU battery-powered pool lift S-3800 and S-3800/1 11. Dimensions of the lift. The METALU S-3800 and S-3800/1 models are made with a custom design according to the pool where the lift will be installed. Therefore, the dimensions of the lift arm and seat tube may change.
  • Page 13 Manual and certificates – METALU battery-powered pool lift S-3800 and S-3800/1 The lift must be installed far from any obstacles within its working area. The area that the lift needs in 3D space is shown in the image below: Working area in 3D space for a standard lift.

  • Page 14: Proper Use Of The Product And Maintenance

    The user will occupy the seat, from where they can easily reach and use the controller. o The S-3800/1 model (independent user) has a safety hook next to the seat. This hook makes sure that the controller is always near the user.
  • Page 15 Regularly clean the metal connectors of the battery, charger, and control box with a nylon scourer. o At the start of the season, apply lithium grease on the gears of model S-3800/1. o If there are weeks during which the lift isn’t used, we recommend operating it with a medium load (approx.
  • Page 16 Manual and certificates – METALU battery-powered pool lift S-3800 and S-3800/1 Correct use of the pool lift model METLAU S-3800 with manual rotation: The process starts by lifting the user into the pool: 1. Access to the seat is possible from whichever side is more comfortable for the user.
  • Page 17 Manual and certificates – METALU battery-powered pool lift S-3800 and S-3800/1 Correct use of the METLAU S-3800/1 pool lift with manual rotation: The process starts by lifting the user into the pool: 1. Access to the seat is possible from whichever side is more comfortable for the user.
  • Page 18  this completely independently. The control box also has buttons to control the movement. The S-3800/1 model has the option of turning manually. This is very simple to do: 1. Remove the two motor positioners from the “Automatic” position. 2. Raise the rotation motor as high as it goes (screws).
  • Page 19 Looking after the environment is everyone’s responsibility. METALU equipment should only be used by designated people at centres and by the users of the equipment. Those responsible at centres should know the equipment and have read the instructions. If any questions remain after reading the instructions, contact the manufacturer at the addresses provided below.
  • Page 20 MANUFACTURAS METÁLICAS LUISIANERAS, S.L METALU S-3800 and S-3800/1 battery-powered pool lift Manual and certificates Address: Polígono industrial Los Motillos, C/ Madrid n.º 11 naves A, C, D, G, H, 41430. Town/city: La Luisiana (Seville). Tax ID: B – 41,834,508 Main telephone: +34 955 907 784 Website: www.poollift.com...
