Renu Electronics WP2 Lite Quick Start Manual

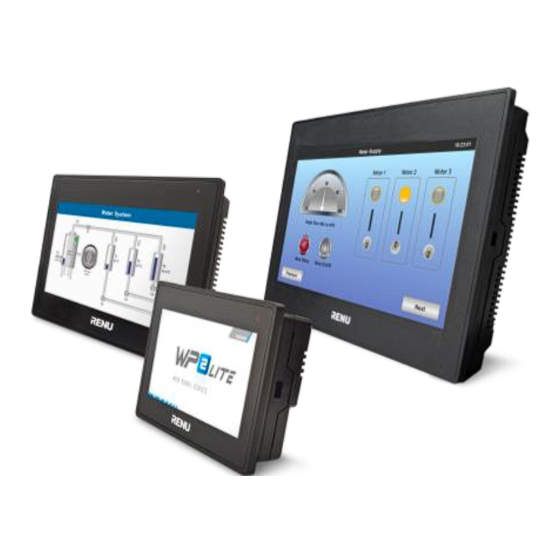

WP2 Lite Web Panel
QUICK START GUIDE
Product Code
WP2043TN: 4.3", 480 x 272 pixels, WQVGA color TFT
with 4-wire analog resistive touch screen with serial port,
1 Ethernet port.
WP2070TN: 7", 800 x 480 pixels, WVGA color TFT with
0
4-wire analog resistive touch screen with serial port, 1
Ethernet port.
WP2101TN: 10.1", 1024 x 600 pixels, WSVGA color TFT
with 4-wire analog resistive touch screen with serial port,
1 Ethernet port.
WP2 Lite web panel is a Thin Client with an inbuilt Micro
browser ready to connect to a remote web server on the
network.
Getting Started
To use the WP2 Lite as a browser, follow these steps to
connect the device to a Webserver.
1. Power ON the WP2 Lite panel using a 24VDC power
supply.
2. Plug in the Ethernet cable into the RJ45 port.
After the device boots up, click on Settings 
3.
Microbrowser and Network Settings.
4. On the new screen enter the Host address and the
start page on the host
Eg: Host: 192.168.1.50
Start Page: start.html
5. Click Back to go to the main page.
6. Click Start to load the web page.
Specification
4.3": 24VDC(+20%, -15%)
Power (Base)
@250mA, 6W
7.0": 24VDC(+20%, -15%)
@300mA, 7.2W
10.1": 24VDC(+20%, -15%)
350@mA, 8.4W
Display 480 x 272pixels , 4.3" Color TFT,
WQVGA Web Panel Analog
Resistive Touch Screen
800 x 480pixels , 7" Color TFT,
WVGA Web Panel Analog
Resistive Touch Screen
1024 x 600pixels , 10.1" Color
TFT, WSVGA Web Panel Analog
Resistive Touch Screen
Memory CPU: 32-bit ARM Cortex-M7
RAM: 32MB
Panel Cutout 80(H) x 111(W) mm
127(H)x175(W) mm
178(H)x256(W) mm
Dimensions 89(H) x 120(W) x 31.5(D) mm
138(H)x186(W)x31(D) mm
190(H)x268(W)x33(D) mm
Weight Approx. 200gm, 400gm, 900gm
LED 1
Communication
Ethernet 1x10/100MBps
OSK Yes
Environment & Approvals
Operating Temperature 0°C to 50°C
Storage Temperature -20°C to 85°C
Humidity 10 to 95% (Noncondensing)
Shock IEC 60068-2-27, 25g, 11ms, 6
shocks per axis, total 18 shocks
(X, Y, Z)
Vibration 5~150Hz, 3g peak, (X, Y, Z)
Protection IP66 for front panel mounting
CE, UL (Class 1 DIV 2) & RoHS
Approvals
compliant
Supported Web Server Spider Controls, Codesys2.x,
Codesys3.x

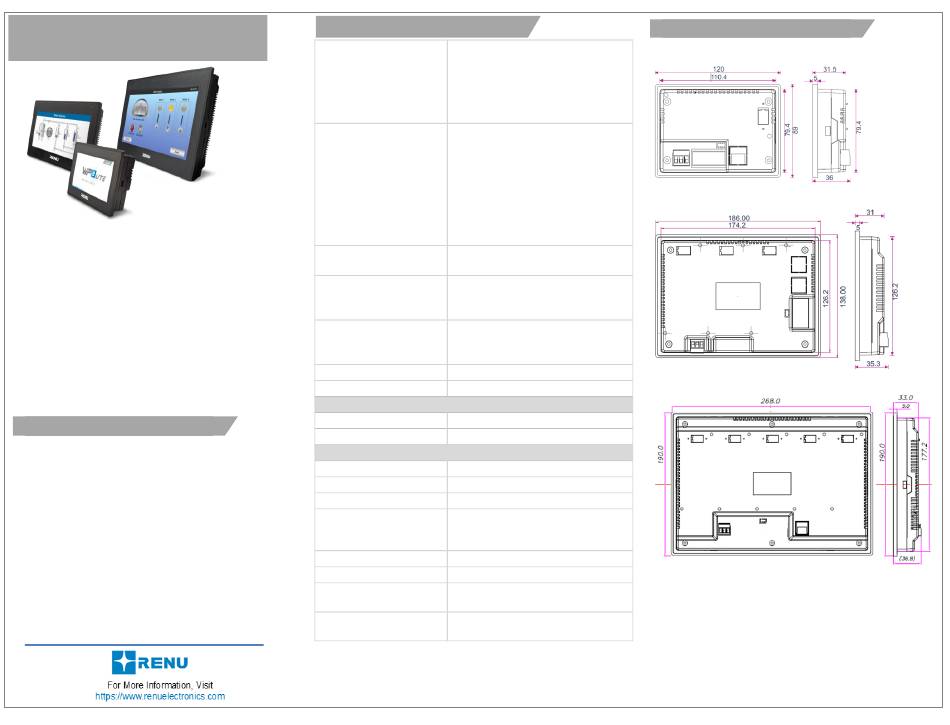

Panel Cutout Dimensions
WP2043TN
WP2070TN
WP2101TN
