G-Force UNDER CONTROL CP-28 User Manual

G-FORCE
Under cont rol
CP-28
USB Game Control Panel
USER MANUAL
English V.1.1

Table holder assembly

Insert the spacer (H3) into the cutouts on the side panels
(R1, L2) and secure with M2.8 screws. Fig.1
Fig.1
Insert the panel into the holder and secure with M5
screws. You can also use the panel without a holder.
Fig.2
Fig.2
-2-
Thak you for purchasing a G-FORCE product. Our
passion is the development and production of gaming
devices for all enthusiasts of simulators and games. G-
FORCE manufactures and develops a range of control
panels for simulator and game enthusiasts. We produce
a limited number of custom devices, it is not serial
production. In our products you will find a functional
design, user-friendly controls and a quality selection of
components. We produce plastic parts using 3D printing
technology and all parts are specially designed for our
products. For more informations and news please visit
our website www.g-force.sk.
We wish you a lot of great gaming experience with G-
FORCE by controlling your planes, tanks, ships, cars or
your favorite games.

Product Description

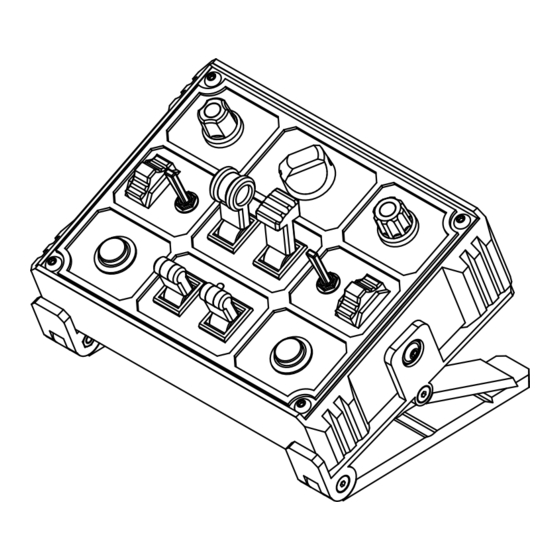

Control panel CP-28 is a full programmable device that
allows you to assign functions from your simulator or
game. You can control the functions with switches and
encoders. The panel is great for flight simulators, but can
also be fully used for any other simulators or games. In
the basic mode, this panel allows the control of 24 button
functions and 2 encoders for entering values. If your
simulator or game supports the mod-switch function, you
can use the panel to control up to 80 buttons and 8
encoders using the "MODE" rotary switch.
The device has a compact small size and is very easy to
use. You do not need to install any drivers. It is full
compatible with USB 2.0 and Windows operating
systems.

Installation on PC

1/ Connect the USB (B) connector on the back side of the
panel.
2/ Connect the USB (A) connector to one of your
computer's USB ports. Windows 7 or higher will
automatically detect the new game device.
3/ The drivers are installed automatically.
4/ Click Start/Settings/Control Panel and then double-
click Game Controlers. The Game Controllers dialog
box display the joystick name "G-FORCE CP28" with OK
status.
5/ In the Control Panel, click Properties to configure
your joystick. Test device: Lets you test and view all of
your panel functions.
With control panel CP-28 you can control 28 joystick buttons.
You are ready to play!
-1-
-3-
