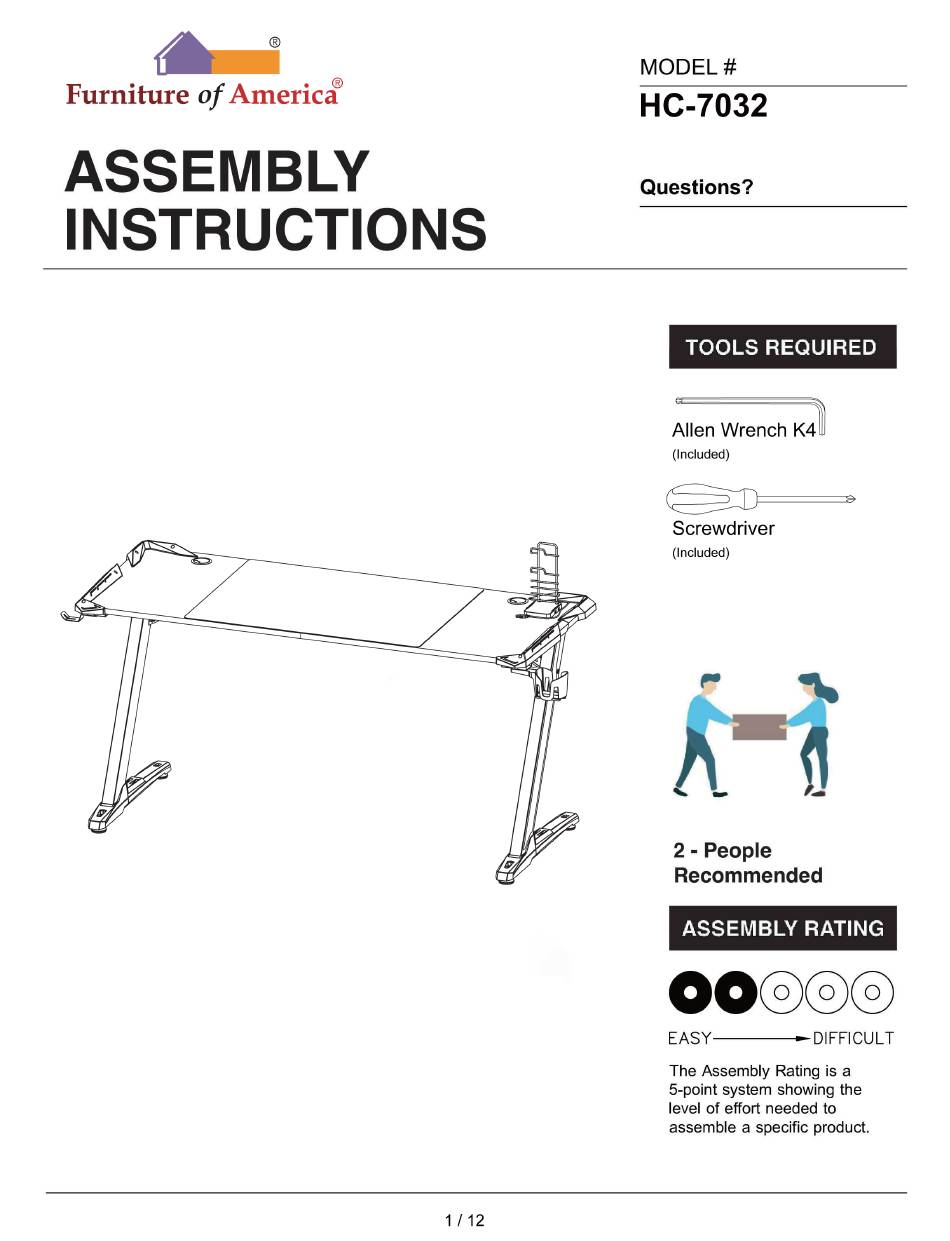

- Page 1 GIVE US A CALL: 1-888-980-5122 MON-FRI 8:30AM - 5:30PM (PT) VERSION # 21-4-21...
- Page 2 Please review the assembly instructions and all diagrams prior to assembling. Position parts in order and group identical hardware together for an easier assembly experience. 2 / 12...
- Page 3 3 / 8 3 / 12...
- Page 4 4 / 8 4 / 12...
- Page 6 (13)X2 (14)X2 (15)X4 (16)X2 (17)X1 (18)X1 (19)X4 (20)X1 (21)X1 (22)X1 (23)X1 HARDWARE 1/4*12 1/4*30 1/4*51 M4*12 (A)X22 (B)X8 (C)X6 (E)X8 M5*15 (F)X6 (G)X4 (H)X1 (I)X1 6 / 8 6 / 12...
- Page 7 1) Align the holes of the frames (#2) to bars (#14). 2) Align bars (#3) to the frame, then secure by using bolts (#A). Align legs (#1) to the frame, then secure by using bolts (#C). Attach caps (#15) onto the legs (#1). 7 / 12...
- Page 8 Align support brackets (#5,6) to the frame and legs, then secure by using bolts (#A,C) as shown in the diagram. Secure levelers (#F) onto the legs and adjust them according to the ground level. Align top panels (#7,8) flush together, then align brackets (#4) to the top panels (#7,8).
- Page 9 Align frame with legs to the top panel, then secure by using bolts (#B). Align wire holder (#20) to the top panel, then secure by using screws (#E). Align holders (#21,22) to the top panel, then secure by using bolts (#A). 9 / 12...
- Page 10 Align leg caps (#9,10) onto legs, then use either bolts (#A) or screws (#E) to secure leg caps (#9,10) onto legs. Insert wire caps (#16) to the top panel. Align top panel caps (#11,12,13) to the top panel, then secure by using screws (#D). 10 / 12...
- Page 11 Connect the wires together and strap the wires by using wire straps (#19) from underneath the top panel. The wire straps could be sticked underneath the bottom of the top panel. Place mat (#17) and rack (#23) onto the top panel. Stick the stickers (#18) onto the legs.
