- Page 1 UHF768 User Manual Need Help? If you need assistance setting up or using your Oricom product now or in the future, call Oricom Support. Australia (02) 4574 8888 www.oricom.com.au Mon-Fri 8am – 6pm AEST New Zealand 0800 67 42 66 www.oricom.co.nz...
- Page 2 Channels 1-8, 31-38, 41-48, 71-78 are not to be used to communicate with another CB radio within range of a repeater station. Channels 61-63 are reserved for future use and inhibited by the UHF768. Authorised channels can be found in the ACMA CB radio class licence.
-
Page 3: Safety Information And Warnings
Safety Information and Warnings Information on Safe Operation Read This Information Before Using Your Oricom Radio. The operation of your UHF radio in Australia and New Zealand is subject to conditions in the following licenses: In Australia, the ACMA Radio communications (Citizen Band Radio Stations) and in New Zealand by MED the General User Radio License for Citizen Band Radio. - Page 4 overheat explode and or cause burns. • Never replace batteries in a potentially explosive atmosphere (such as where gas is leaking) as contact sparking may occur while installing or removing the batteries and cause a fire or an explosion. • Do not modify, cut, disassemble, crush, bend, puncture, heat or damage the batteries.
- Page 5 “Turn off the two way radio.” Obey all signs and instructions. Exposure to Radio Frequency Energy Your Oricom two-way radio complies with the Australian Communications and Media Authority Radiocommunications Equipment (General) Rules 2021 referring to ARPANSA RPS-1 2021 and EN62209-2 2010.
- Page 6 Do not use the radio if the antenna is damaged. If a damaged antenna makes contact with your skin, a minor burn can result. If you wear a radio on your body when transmitting, always fit the radio on the belt clip (supplied). Always ensure the radio and it's antenna are at least 5cm from your body when transmitting.
- Page 7 manufacturer to discuss alternatives. Other Medical Devices If you use any other personal medical device, consult the manufacturer of your device to determine if it is adequately shielded from RF energy. Your physician may be able to assist you in obtaining this information. General warnings Never use your radio outdoors during a thunderstorm.
-
Page 8: Lcd Display

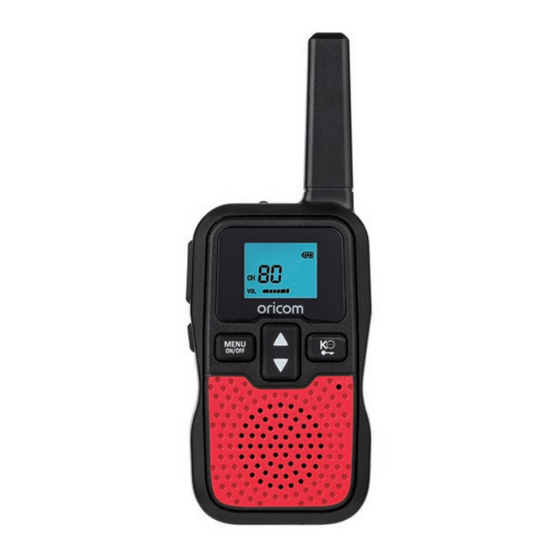

OVERVIEW 1. Antenna 2. LCD display 3. Up Key 4. Kid Talk/ Key Lock button 5. Microphone 6. USB-C Socket 7. PTT (Push to Talk) 8. Torch On/Off button 9. Menu / Power On/Off 10. Down button MENU 11. Speaker 12. -
Page 9: Pack Contents
• 2 x UHF768 Handheld Radios • 1 x User Guide BATTERY INSTALLATION • Your UHF768 can be used with non rechargeable Alkaline batteries or rechargeable NiMH batteries (not supplied) • Insert a coin in the battery door gap. • Twist the coin to open the battery cover as shown in the picture below. -
Page 10: General Operation
CHARGING WITH USB-C CABLE (NOT SUPPLIED) NOTE: Ni-MH BATTERIES ONLY • Plug a USB-C power adapter with 5V, 1A or higher output into the USB-C connection on the radio and plug the other end into main power. NOTE: do not recharge Alkaline batteries. •... - Page 11 • To power Off the radio, press MENU key for 2 seconds until LCD display turns off. 2. COMMUNICATION • The radio has 80 channels and 38 CTCSS codes. You can communicate with any other user who is using the same combinations, providing they are within range.
-
Page 12: Select Channel
Main Screen → Main Channel →CTCSS → VOX → Key tone → Roger Beep → Main Screen 8. SELECT CHANNEL To select the main channel • Press the MENU key once, the channel number displayed will flash. • Press Up or Down key to select your desired channel number. •... - Page 13 display will show the code next to the Channel number on the display. Refer page 8 LCD Display Item 8. CTCSS cod. 11. VOX (Hands-Free Function) The unit has a built-in Voice Activated Circuit (VOX) function. You can enjoy talking and listening without pressing PTT key. •...
- Page 14 is set to "00" first. Note: If the CTCSS code setting is 01 to 38, the radio will not scan other channels with different CTCSS codes. • Press and hold Up or Down key for at least 3 seconds to start scanning function.
- Page 15 Default settings: Channel 12 RPT: OFF CTCSS 00 VOX: OFF Volume level 3 Key Tone Off Roger Beep Off Only when Kid talk enabled CTCSS 10 Factory Reset To reset radio back to factory settings With the Radio off, press and hold the PTT button, press the Up button and then the MENU button to turn radio on in default state.
-
Page 16: Express Warranty (Australia)
Oricom warrants that the product is free from defects in materials or workmanship during the Express Warranty Period. - Page 17 Oricom. Oricom will not be liable under this Express Warranty, and to the extent permitted by law will not be liable for any defect, loss, damage or injury arising out of or in connection with a: 1.
- Page 18 Products that are authorised to be returned to Oricom in Australia must include all of the following: · A completed Return Authorisation form · A copy of your Proof of Purchase (please keep your original copy) ·...
- Page 19 arrange and pay any expenses incurred (including postage, delivery, freight, transportation or insurance of the product) to return the faulty product to us, however, we will arrange delivery of the repaired or replaced faulty product to you. Important Information Repair Notice Please be aware that the repair of your goods may result in the loss of any user generated data (such as stored telephone numbers, text messages and contact information).
