FC121-ZA, FC122-ZA,
FC123-ZA, FC124-ZA

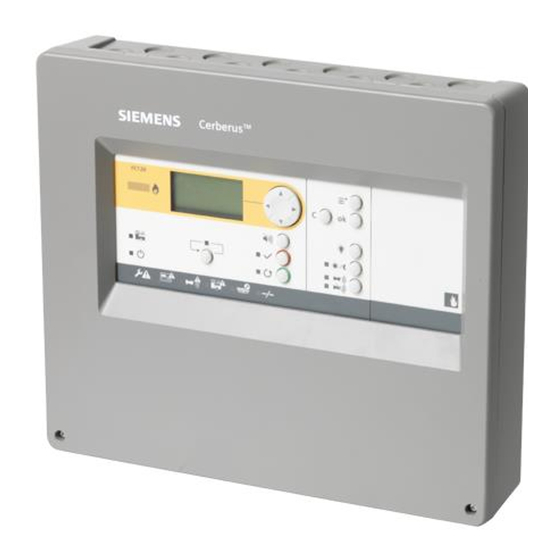

Fire control panel
Series FC120
Compact, prefabricated microprocessor-controlled fire control panel
l
Fire control panel can be used as stand-alone version
l
2 or 4 or 8 or 12 zones
l
Compatible with the Siemens detector ranges 110-series / DS11 and
l
SynoLINE300 / SynoLINE600
Integrated user-friendly operating unit
l
Optional EVAC module, key switch, LED indicators
l
Slots for output cards
l
Emergency power supply for up to 72 h emergency power time
l
Flexible programming
l
Programmable alarm organization for manned/unmanned operation
l
Event memory with stamped date and time
l
Simple user controls via menu navigation
l
Key code user access with optional key-switch alternative
l
Easy on-site configuration
l
Building Technologies
™
Cerberus
FIT
CPS Fire Safety
Advertisement
Related Manuals for Siemens FC121-ZA
Summary of Contents for Siemens FC121-ZA
- Page 1 Compact, prefabricated microprocessor-controlled fire control panel Fire control panel can be used as stand-alone version 2 or 4 or 8 or 12 zones Compatible with the Siemens detector ranges 110-series / DS11 and SynoLINE300 / SynoLINE600 Integrated user-friendly operating unit...
-
Page 2: System Overview
70 W Max. 17 Ah Functional elements The FC121-ZA, FC122-ZA, FC123-ZA, FC124-ZA are compact fire control panels with an integrated operating unit for 2 or 4 or 8 or 12 zones. Processes signals from the 110-series / DS11 and SynoLINE300/600 series. - Page 3 Inputs / Outputs FC121, FC122 – 2 monitored control lines 24 V / 500 mA for horns, fire controls, external remote transmission. – 1 dry output 30 V /1 A – 2 programmable control inputs FC123, FC124 – 2 monitored control lines 24 V / 500 mA for horns, fire controls, external remote transmission.
- Page 4 Overview of FC121-ZA, FC122-ZA, FC123-ZA, FC124-ZA FC121-ZA & FC122-ZA FC123-ZA & FC124-ZA FC121-ZA FC122-ZA FC123-ZA FC124-ZA 2 zones 4 zones 8 zones 12 zones With power supply (25 W) With power supply (25 W) With power supply (70 W) With power supply (70 W)
- Page 5 Configuration of FC121-ZA and FC122-ZA Basic equipment Designation Notes Control panel with FC121-ZA 2 zones Power supply Main board Control panel with FC122-ZA 4 zones Power supply Main board Battery (12 V, 4 Ah, VDS) AX1213 For emergency power supply...
- Page 6 Configuration of FC123-ZA and FC124-ZA Basic equipment Designation Notes Control panel with FC123-ZA 8 zones Power supply Main board Control panel with FC124-ZA 12 zones Power supply Main board Battery (2 x 12 V, 7 Ah, VDS) FA2003-A1 Battery (2 x 12 V, 12 Ah, VDS) FA2004-A1 For emergency power supply Battery (2 x 12 V, 17 Ah, VDS)
- Page 7 Technical data FC121-ZA FC122-ZA FC123-ZA FC124-ZA Mains voltage AC 196…253 V AC 97…127 V AC 196…253 V Power consumption 25 W 70 W Operating voltage DC 21…28.6 V Max. nominal output current without battery Max. 0.9 A Max. 2.5 A...
- Page 8 Battery (12 V, 17 Ah, VDS) 5.640 kg Spare part FP2015-A1 S54400-B121-A1 0.575 kg Power supply (70 W) Siemens Switzerland Ltd Infrastructure & Cities Sector Building Technologies Division International Headquarters © 2014 Copyright by CPS Fire Safety Siemens Switzerland Ltd Gubelstrasse 22 Data and design subject to change without notice.
