Summary of Contents for Lamona LAM8900

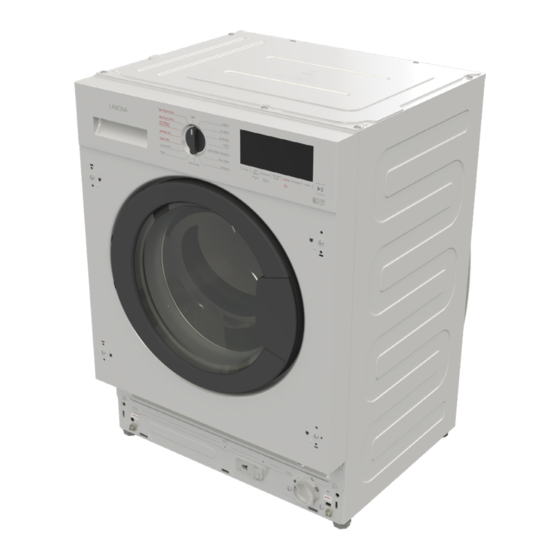

- Page 1 Built-in Washer Dryer LAM8900 User Instructions ISSUE v1.2 071223 www.howdens.com/appliance-registration...
- Page 2 www.howdens.com...
-
Page 3: Welcome
Welcome Dear Customer Congratulations on your choice of energy efficient washer dryer. • This washer dryer complies with all current local and national safety requirements. However, inappropriate use could lead to personal injury and damage to property. • Please read the operating instructions carefully before using the washer dryer. They contain important information on safety, use and maintenance. -
Page 4: Table Of Contents
Contents Register my washer dryer ......p.2 Spinning Final spin speeds - washing/drying... .p.19 Welcome . - Page 5 Contents (continued) Garment care labels ......p.28 Detergent and additives The correct detergent ......p.29 Dispensing aids .
-
Page 6: Warning And Safety Information
LAMONA cannot be held liable for the label. The manufacturer cannot be held liable for consequences of an inadequate earthing system damage resulting from incorrect or improper use or (e.g. -
Page 7: Correct Use
• If the electrical connection cable is faulty it must • Take care to ensure that foreign objects (e.g. nails, only be replaced by a LAMONA Service Engineer to pins, coins, paper clips) do not find their way into protect the user from danger. -
Page 8: Dryer - Risk Of Fire
LAMONA cannot be held liable for damage caused • Your product is designed to work at temperatures by non-compliance with these Warning and Safety between 5 - 35°C. -
Page 9: Caring For The Environment
Caring for the environment Disposal of the packing material Disposing of your old appliance The packaging is designed to protect the appliance Electrical and electronic appliances often from damage during transportation. The packaging contain valuable materials. They also materials should be recycled. contain specific materials, compounds and components, which are essential for their Recycling the packaging reduces the use of raw... -
Page 10: Control Panel
Operating the washer dryer (continued) Control panel Mini Wash & Dry Cottons 1400 1400 ° ° 5Kg Wash & Dry Eco 40-60 1200 1200 ° ° Anti Allergy Wash & Dry Synthetics ° ° Quick ° ° Synthetic Dry Rapid 30° °... -
Page 11: Before Using The Washer Dryer For The First Time
Before using the washer dryer for the first time LAMONA cannot be held responsible for This washer dryer has undergone a complete any incorrect installation of the washer dryer. functional test at the factory and there may be The separate Installation Instructions must some water in the drum and detergent drawer. -
Page 12: Washing Environmentally And Economically
Washing environmentally and economically Energy and water saving Choosing the correct function (Pre-wash and Quicker Wash) • Water consumption and energy usage are determined by the size of the load. Select: The most efficient use of the washer dryer is by •... -
Page 13: Prepare The Laundry
1 - Prepare the laundry Pre-treating stains • Badly soiled areas and stains should be pretreated using a proprietary stain treatment. Always follow the manufacturer’s instructions. WARNING: Damage due to solvent-based cleaning agents. Cleaning agents containing benzine, stain remover, etc., can damage plastic parts. When pre-treating textiles, make sure that any •... -
Page 14: Load The Washer Dryer
2 - Load the washer dryer Open the door WARNING: Maximum load when using a drying • Reach behind the door grip and pull the door open. programme. Check the drum for pets or foreign objects before Tip: Note the maximum load for each wash programme. loading with laundry. -
Page 15: Select A Programme
3 - Select a programme Programme selection The washer dryer is switched on by turning the Mini Wash & Dry Cottons 1400 programme selector to a wash programme. ° 5Kg Wash & Dry Eco 40-60 1200 1200 ° Anti Allergy Wash &... -
Page 16: Add Detergent
4 - Add detergent Detergent dispenser drawer Choosing the detergent type Use detergents suitable for automatic washer dryers. – Depends on the wash programme, fabric type and colour. Observe manufacturer dosing instructions. • Use different detergents for coloured and white laundry. -
Page 17: Adding Liquid Fabric Softener
4 - Add detergent (continued) Adding liquid fabric softener Tips on detergent usage Adjust the detergent dosage to the level of soiling of the laundry and the size of the load. Reduce the amount of detergent with smaller loads (e.g. reduce the amount of detergent by when washing a half load). -
Page 18: Start The Programme
5 - Start the programme Starting a programme Adding laundry during a programme • Press the Start/Pause button Laundry can be added or removed at any time, provided that the Door Locked symbol is not The door locks and the programme starts. illuminated on the control panel. -
Page 19: Spinning
Spinning Final spin speeds - washing/drying Programme for washing Cottons 1400 When a programme is selected, the optimum spin Eco 40-60 1400 speed for that programme will be brightly lit in the Synthetics 1200 control panel. Quick / Rapid 30° 1400 The spin speed may then be adjusted if necessary to Quick / Rapid 30°... -
Page 20: Washing Programmes
Washing programmes Cottons Cold to 90°C Max. spin speed 1400 Max. load 8 kg Items Durable cotton laundry (sheets, bedlinen, towels, bathrobes, underwear etc.) Press the Quicker Wash function key, programme duration becomes notably shorter but effective washing is ensured thanks to intense washing movements. If the quick wash function is not selected, superior washing and rinsing performance is ensured for your heavily soiled laundry. -
Page 21: Hand Wash / Woollens
Washing programmes (continued) Hand Wash / Woollens Cold to 40°C Max. spin speed 1200 Max. load 1.5 kg Items Woollens / wool blend fabrics - delicate garments. Select the appropriate temperature complying with the tag of your clothes. Your laundry will be washed with very delicate movements to avoid any damage. Quick / Rapid 30°... -
Page 22: Drying Programmes
Drying programmes WARNING: Maximum load when using a drying programme. The drying function utilizes a condenser system and the cold water tap must be turned on for drying programmes. If only drying small amounts of laundry (2 x pieces max.), use Time-Based Drying. There is a spinning step in the drying programmes Do not dry laundry that contains lace, beads etc. -
Page 23: Auxiliary Functions
Auxiliary functions Mini Wash & Dry Cottons Select the desired auxiliary function before starting 1400 ° the programme. 5Kg Wash & Dry Eco 40-60 1200 ° Anti Allergy • If auxiliary functions conflict, the function selected Wash & Dry Synthetics °... -
Page 24: Anticrease
Auxiliary functions (continued) AntiCrease Select by pressing the Spin Speed function button for 1400 ° 3 seconds. 1200 ° • Display will count down ° ° • When activated is displayed. ° The drum will rotate for up to 8 hours to avoid creasing the clothes following the end of a wash programme. -
Page 25: Drying Steps
Auxiliary functions (continued) Drying steps Select by pressing the Drying function button. 1400 ° Time based 1200 ° Select either 30, 90 or 150 minutes for the required ° dryness, (Use for very small amounts of laundry). ° ° Extra dry Drying continues until the drying reaches the extra Spin Quicker... -
Page 26: Drying Programmes
Auxiliary functions available (continued) Drying Programmes • • • • • Cottons- Dry • • • • Synthetic Dry • • • • • Anti Allergy Wash & Dry 5 kg Wash & Dry • • • • • Mini Wash & Dry (0.5 kg) •... -
Page 27: Eco
Programme and consumption table (for washing) Auxiliary function Programme (°C) 2.50 1400 • • • • • Cold - 90 Cottons 1.80 1400 • • • • • Cold - 90 0.97 1400 • • • • • Cold - 90 40*** 0.955 1400... -
Page 28: Garment Care Labels
Garment care label symbols Washing Ironing The figure quoted in the bucket is the maximum The number of dots indicates the ironing temperature the garment can be washed at. The temperature. number of bars under the symbol indicates the Hot iron level of agitation permitted. -
Page 29: Detergent And Additives
Detergent and additives The correct detergent Water softeners All detergents produced for automatic washer dryers A water softener can be used to cut down on the use of are suitable. Follow the manufacturer’s instructions and detergents in areas with water hardness levels medium dosage recommendations on the packaging. -
Page 30: Cleaning And Care
Cleaning and care Cleaning the external casing and Cleaning the detergent dispenser control panel drawer Washing at low temperatures and the use of liquid WARNING: Risk of electric shock! detergent can lead to a build-up of mould and Mains voltage is present when the washer dryer bacteria in the detergent dispenser drawer. -
Page 31: Cleaning The Siphon And The Compartment Channels
Cleaning and care (continued) Cleaning the siphon and the Cleaning the detergent dispenser drawer compartment compartment channels • Use a bottle brush to remove detergent residues 1. Remove the siphon from compartment and and limescale from the jets inside the detergent clean under warm running water. -
Page 32: Cleaning The Water Intake Filters
Cleaning and care (continued) Cleaning the water intake filters The washer dryer has 2 filters to protect the inlet valve. Check these filters every 6 months or so. Perform this check more often if there are frequent interruptions to the external water supply. Cleaning the filter in the inlet valve Cleaning the filter in the inlet hose First turn off the water supply. -
Page 33: Draining Remaining Water And Cleaning The Pump Filter
Problem solving If your machine will not drain/empty or spin check the pump filter for debris. Draining remaining water and Open the door in case of power failure cleaning the pump filter In case of a power failure, use the door emergency tag to manually open the door. - Page 34 Problem solving (continued) Many malfunctions and faults that can occur in daily operation can be easily remedied. Time and money will be saved because a service call will not be required The following guide may help you to find the reason for a malfunction or a fault, and to correct it. Problem Reason Solution...
- Page 35 Problem solving (continued) Problem Reason Solution Door cannot be opened. Door lock is activated because of the water level in Drain the water by running the Pump or Spin the machine. programme. Machine is heating up the water or it is at the Wait until the programme completes.
- Page 36 Problem solving (continued) Problem Reason Solution Washing performance is poor: Insufficient amount of detergent is used. Use the recommended amount of detergent appropriate for water hardness and the laundry. Stains persist or the laundry is not whitened. (**) Excessive laundry was loaded in. Do not load the machine in excess.
- Page 37 (**) Regular drum cleaning is not applied. Clean the drum regularly. CAUTION: If you cannot eliminate the problem although you follow the instructions in this section, consult your dealer or the Authorised LAMONA Service Agent. Never try to repair a non-functional product yourself. Exclusive to Howdens...
-
Page 38: Consumption Data
‘Open the door in case of power failure’. CAUTION: If you cannot eliminate the problem although you follow the instructions in this section, consult your dealer or the Authorised LAMONA Service Agent. Never try to repair a non-functional product yourself. Consumption data LAM8900... -
Page 39: Technical Specifications
Technical specifications Supplier name or trademark LAMONA Model name LAM8900 Maximum spin speed (rpm) 1400 Washing capacity (cotton) (kg) Drying capacity (cotton) (kg) Built-in Height (min. mm) Width (min. mm) Depth (min. mm) Single Water inlet Double Water inlet Electrical input (V/Hz) -
Page 40: Error Codes
Error codes Errors that may be checked / remedied by user and often do not need a service call Error code Description Possible remedy NTC wash error Heater open circuit error Heater continuously active error Fill valve triac short circuit Check hose for kink / Check valve is open Fill valve triac diode error Fill valve takes in water continuously... - Page 41 Error code Description Flowmeter and level sensor control error Door locked signal (zero cross) is not received error Operating voltage out of limit error NTC condenser input open circuit error NTC foam input open circuit or NTC foam input short circuit error Air heaters open circuit or Heater channel thermal waste error Over heating drum error...
-
Page 42: Guarantee
• Your full contact details. Call the Depot number on your Proof of Purchase Document supplied with the product/kitchen. Call the LAMONA Service Line on: Within UK 0344 460 0006 Within Republic of Ireland 01525 5703 * Product installed within a domestic kitchen or a non-domestic kitchen where 8 or fewer people are using the washing machine. - Page 43 Notes Exclusive to Howdens...
- Page 44 Product serial number (Place sticker here) REPRISE À DÉPOSER À DÉPOSER À LA LIVRAISON EN MAGASIN EN DÉCHÈTERIE Cet appareil se recycle Points de collecte sur www.quefairedemesdechets.fr Privilégiez la répara�on ou le don de votre appareil! Product information correct at the time of publication in December 2023. The company has a policy of continuous product development and Howden Joinery Ltd.
