ILB BT ADIO MUX INSTALL
Typical combinations of antennas and
adapter cables
Application note
107804_en_01
1
Description
This application note shows you how to install the Wireless
MUX set indoors or outdoors with various accessories.
Accessories:
–
Antennas
–
Antenna cables
–
Surge protection
WARNING
This application note does not replace the device-specific documents.
Observe the safety information, conditions, and limits of use specified in the respective product documentation.
Make sure you always use the latest documentation.
It can be downloaded at:
© PHOENIX CONTACT
phoenixcontact.net/product/2702875
2022-06-29
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Phoenix Contact ILB BT ADIO MUX
Summary of Contents for Phoenix Contact ILB BT ADIO MUX
-
Page 1: Description

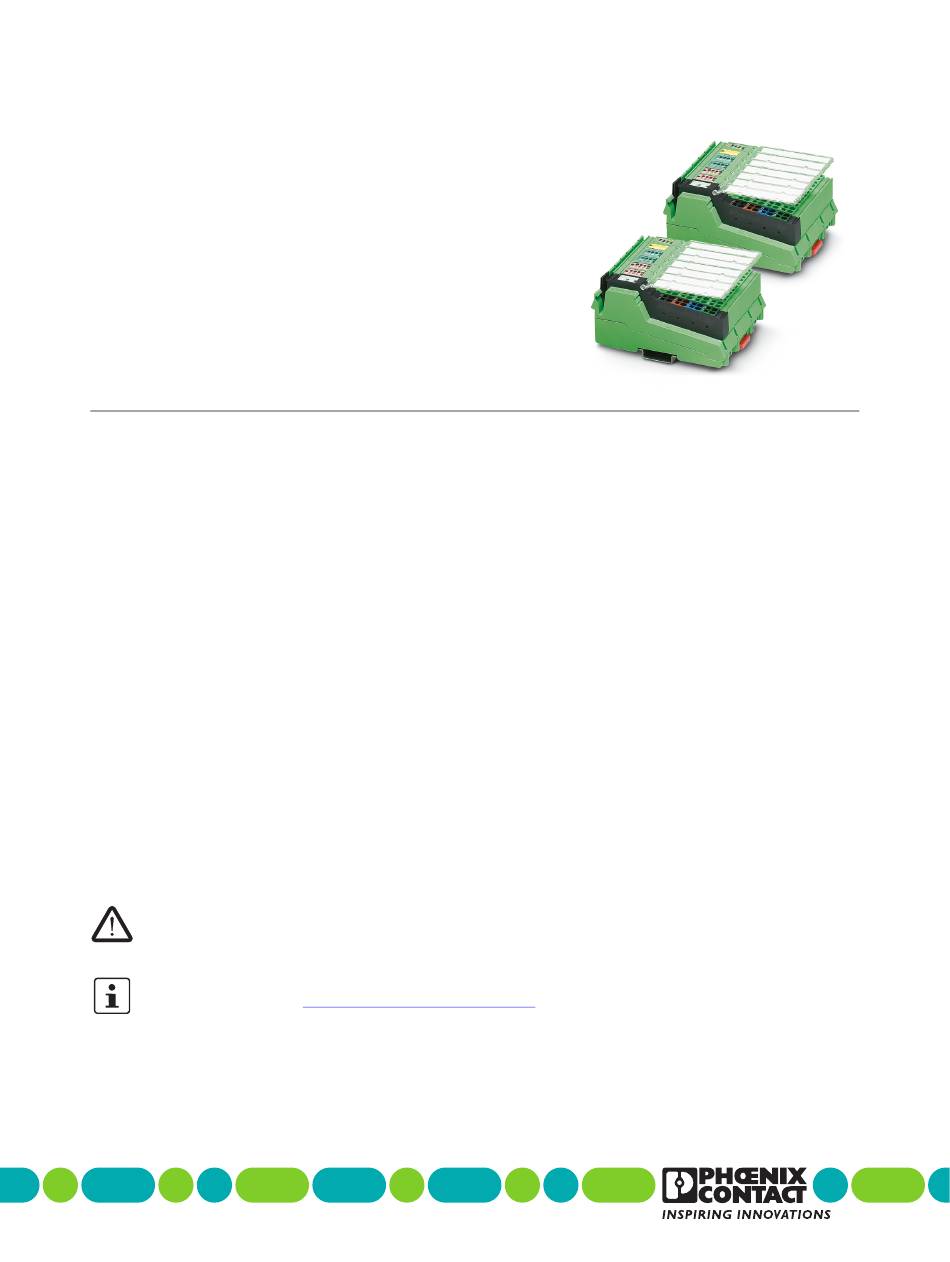

ILB BT ADIO MUX INSTALL Typical combinations of antennas and adapter cables Application note 107804_en_01 © PHOENIX CONTACT 2022-06-29 Description This application note shows you how to install the Wireless MUX set indoors or outdoors with various accessories. Accessories: –... -
Page 2: Table Of Contents
ILB BT ADIO MUX INSTALL Table of contents Description ..........................1 Table of contents ........................2 Ordering data .......................... 3 Optimum antenna installation ....................6 Installation indoors........................8 Installation outdoors ......................13 107804_en_01 PHOENIX CONTACT 2/14... -
Page 3: Ordering Data
ILB BT ADIO MUX INSTALL Ordering data Description Type Item no. Pcs./Pkt. Wireless MUX set, two modules with 16 digital inputs and ILB BT ADIO MUX 2702875 outputs and 2 analog inputs and outputs (0 ... 20 mA, 0 ... 10 V) each, RSMA (female) antenna connection, without antennas Wireless MUX set, two modules with 16 digital inputs and... - Page 4 ILB BT ADIO MUX INSTALL Accessories Type Item no. Pcs./Pkt. Omnidirectional antenna with protection against RAD-ISM-2459-ANT-FOOD- 2702898 vandalism, 2.4 GHz/5 GHz, gain: 6 dBi/8 dBi, 6-0-N polarization: linear, opening angle: h 360°, degree of protection: IP68, resistant to cleaning agents, connection: N (female), for control cabinet mounting...
- Page 5 ILB BT ADIO MUX INSTALL Accessories Type Item no. Pcs./Pkt. Antenna cable, outside diameter: 10 mm (0.4 in.), inner RAD-CAB-EF393- 3M 2867649 conductor: stranded, attenuation: 1.0 / 1.8 / 3.1 dB at 0.9 / 2.4 / 5.8 GHz, connection: 2 x N (male), cable length: 3 m (10 ft.) Antenna cable, outside diameter: 10 mm (0.4 in.), inner...
-
Page 6: Optimum Antenna Installation
ILB BT ADIO MUX INSTALL Optimum antenna installation Protection of antenna connections • In outdoor installations, always protect connections on the cables, junctions, and antennas with sealing tape. WARNING: Danger to life by electric shock! – RAD-TAPE-SV-19-3, 2903182 Parts of the antenna are electrically conductive. - Page 7 ILB BT ADIO MUX INSTALL Distance CAUTION: High frequency Mount the antenna in such a way that persons will not be within a radius of 30 centimeters during operation. • Always install omnidirectional antennas a sufficient distance away from obstacles such as masts, buildings, or metal walls.
-
Page 8: Installation Indoors
ILB BT ADIO MUX INSTALL Installation indoors Figure 2 Omnidirectional antenna, 2 dBi PWR1 DI 16 LINK QUALITY Supplied as standard with the ILB BT ADIO MUX-OMNI Pos. Product Description Connection Item No. RAD-ISM-2400-ANT-OMNI-2-1- Omnidirectional antenna for wall mounting, RSMA (male) 2701362 RSMA frequency band: 2.4 GHz, gain: 2 dBi, degree of... - Page 9 ILB BT ADIO MUX INSTALL Figure 3 Omnidirectional antenna with protection against vandalism, 3 dBi PWR1 DI 16 LINK QUALITY Pos. Product Description Connection Item No. RAD-ISM-2400-ANT-VAN-3-0- Omnidirectional antenna with protection against RSMA (male) 2701358 RSMA vandalism for control cabinet mounting, frequency band: 2.4 GHz, gain: 3 dBi, degree of...
- Page 10 ILB BT ADIO MUX INSTALL Figure 4 Omnidirectional antenna, 2.5 dBi PWR1 DI 16 LINK QUALITY Pos. Product Description Connection Item No. ANT-OMNI-2459-04 Multiband omnidirectional antenna for freely N (male) 1284780 mobile applications, compact design, frequency band: 2.4 GHz / 5 GHz / 6 GHz, gain: 2.0 dBi / 2.5 dBi / 3.0 dBi, degree of protection: IP68/IP-...
- Page 11 ILB BT ADIO MUX INSTALL Figure 5 Multiband omnidirectional antenna with protection against vandalism, 4 dBi PWR1 DI 16 LINK QUALITY Pos. Product Description Connection Item No. ANT-OMNI-0671-02 Multiband omnidirectional antenna with protec- N (female) 1396318 tion against vandalism, 617 MHz ... 7125 MHz, gain: 2 dBi ... 4 dBi, polarization: linear, opening...
- Page 12 ILB BT ADIO MUX INSTALL Figure 6 Omnidirectional antenna, 6 dBi Pos. Product Description Connection Item No. RAD-ISM-2400-ANT-OMNI-6-0 Omnidirectional antenna for wall or mast mount- N (female) 2885919 ing, 2.4 GHz, gain: 6 dBi, degree of protection: IP67, salt-water resistant, shock and vibration resistant, incl.
-
Page 13: Installation Outdoors
ILB BT ADIO MUX INSTALL Installation outdoors Figure 7 Omnidirectional antenna, 6 dBi, with surge protection Pos. Product Description Connection Item No. RAD-ISM-2400-ANT-OMNI-6-0 Omnidirectional antenna for wall or mast mount- N (female) 2885919 ing, 2.4 GHz, gain: 6 dBi, degree of protection: IP67, salt-water resistant, shock and vibration resistant, incl. - Page 14 Antenna cable, 0.5 m, 50 Ω impedance N (male) 2903263 RSMA (male) Alternatively: RAD-PIG-RSMA/N-1 Antenna cable, 1 m 2903264 RAD-PIG-RSMA/N-2 Antenna cable, 2 m 2903265 RAD-PIG-RSMA/N-3 Antenna cable, 3 m 2903266 RAD-PIG-RSMA/N-5 Antenna cable, 5 m 2702140 PHOENIX CONTACT GmbH & Co. KG • 32823 Blomberg • Germany 107804_en_01 14/14 phoenixcontact.com...
