RAD-ISM-2400-ANT-OMNI-2-1-RSMA - Antenna
2701362
https://www.phoenixcontact.com/us/products/2701362
Please be informed that the data shown in this PDF document is generated from our Online Catalog. Please find the complete data in the user
documentation. Our General Terms of Use for Downloads are valid.
Your advantages
•
Ideally suited for freely mobile or stationary 2.4 GHz applications
•
Including 1.5 m connecting cable
Commercial Data
Item number
Packing unit
Minimum order quantity
Sales Key
Product Key
Catalog Page
GTIN
Weight per Piece (including packing)
Weight per Piece (excluding packing)
Customs tariff number
Country of origin
Omnidirectional antenna for wall mounting, frequency band: 2.4 GHz, gain: 2 dBi, degree of
protection: IP65, connection: RSMA (male), incl. 1.5 m connecting cable, mounting bracket, and
mounting material
2701362
1 pc
1 pc
DN23
DNN2Z1
Page 388 (C-6-2019)
4046356743471
91 g
70 g
85177100
TW
Jul 18, 2023, 2:04 AM
Page 1 (14)
Advertisement
Related Manuals for Phoenix Contact RAD-ISM-2400-ANT-OMNI-2-1-RSMA
Summary of Contents for Phoenix Contact RAD-ISM-2400-ANT-OMNI-2-1-RSMA

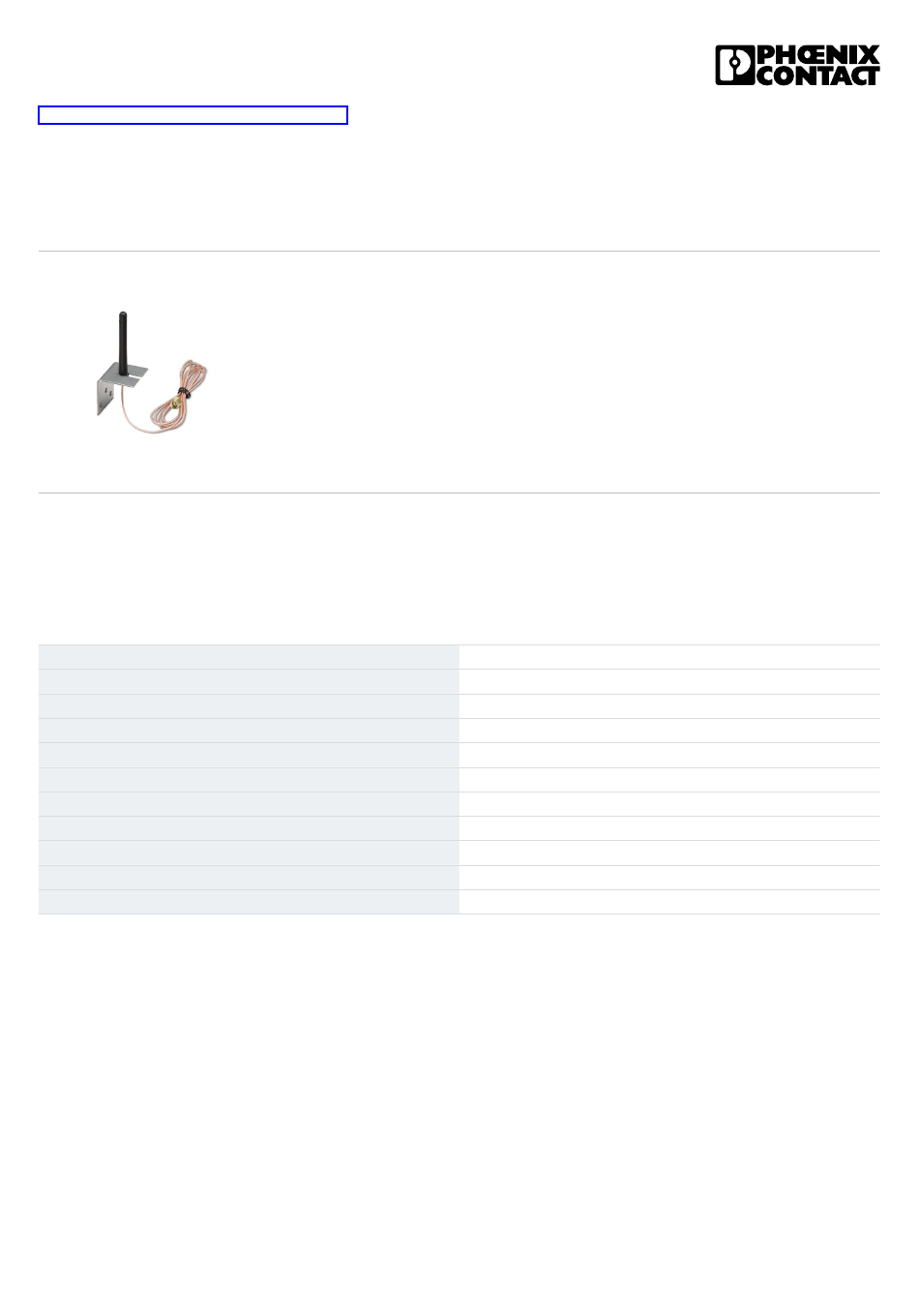

- Page 1 RAD-ISM-2400-ANT-OMNI-2-1-RSMA - Antenna 2701362 https://www.phoenixcontact.com/us/products/2701362 Please be informed that the data shown in this PDF document is generated from our Online Catalog. Please find the complete data in the user documentation. Our General Terms of Use for Downloads are valid.
-
Page 2: Technical Data
RAD-ISM-2400-ANT-OMNI-2-1-RSMA - Antenna 2701362 https://www.phoenixcontact.com/us/products/2701362 Technical Data Product properties Product type Antenna Radiation characteristics Omnidirectional Gain 2 dBi Vertical beamwidth 75 ° Horizontal beamwidth 360 ° Polarization Linear vertical Electrical properties Frequency band 2.4 GHz Frequency range 2.4 GHz ... 2.5 GHz Impedance 50 Ω... - Page 3 RAD-ISM-2400-ANT-OMNI-2-1-RSMA - Antenna 2701362 https://www.phoenixcontact.com/us/products/2701362 Mounting Mounting type Wall mounting Assembly instructions Outdoors and indoors Connection method RSMA (male) Jul 18, 2023, 2:04 AM Page 3 (14)
- Page 4 RAD-ISM-2400-ANT-OMNI-2-1-RSMA - Antenna 2701362 https://www.phoenixcontact.com/us/products/2701362 Drawings Schematic diagram Ø10 Control cabinet feed-through Jul 18, 2023, 2:04 AM Page 4 (14)
- Page 5 RAD-ISM-2400-ANT-OMNI-2-1-RSMA - Antenna 2701362 https://www.phoenixcontact.com/us/products/2701362 Schematic diagram Wall mounting Jul 18, 2023, 2:04 AM Page 5 (14)
- Page 6 RAD-ISM-2400-ANT-OMNI-2-1-RSMA - Antenna 2701362 https://www.phoenixcontact.com/us/products/2701362 Diagram -150 -120 Vertical Jul 18, 2023, 2:04 AM Page 6 (14)
- Page 7 RAD-ISM-2400-ANT-OMNI-2-1-RSMA - Antenna 2701362 https://www.phoenixcontact.com/us/products/2701362 Schematic diagram Wall mounting Jul 18, 2023, 2:04 AM Page 7 (14)
- Page 8 RAD-ISM-2400-ANT-OMNI-2-1-RSMA - Antenna 2701362 https://www.phoenixcontact.com/us/products/2701362 Schematic diagram Jul 18, 2023, 2:04 AM Page 8 (14)
- Page 9 RAD-ISM-2400-ANT-OMNI-2-1-RSMA - Antenna 2701362 https://www.phoenixcontact.com/us/products/2701362 Schematic diagram Mounting on the control cabinet Jul 18, 2023, 2:04 AM Page 9 (14)
- Page 10 RAD-ISM-2400-ANT-OMNI-2-1-RSMA - Antenna 2701362 https://www.phoenixcontact.com/us/products/2701362 Diagram -150 -120 Horizontal Jul 18, 2023, 2:04 AM Page 10 (14)
- Page 11 RAD-ISM-2400-ANT-OMNI-2-1-RSMA - Antenna 2701362 https://www.phoenixcontact.com/us/products/2701362 Schematic diagram Installation example Jul 18, 2023, 2:04 AM Page 11 (14)
- Page 12 RAD-ISM-2400-ANT-OMNI-2-1-RSMA - Antenna 2701362 https://www.phoenixcontact.com/us/products/2701362 Schematic diagram Mounting on the control cabinet Jul 18, 2023, 2:04 AM Page 12 (14)
- Page 13 RAD-ISM-2400-ANT-OMNI-2-1-RSMA - Antenna 2701362 https://www.phoenixcontact.com/us/products/2701362 Classifications ECLASS ECLASS-11.0 19070105 ECLASS-12.0 19070105 ECLASS-13.0 19070105 ETIM ETIM 8.0 EC001698 UNSPSC UNSPSC 21.0 43223100 Jul 18, 2023, 2:04 AM Page 13 (14)
- Page 14 China RoHS Environmentally Friendly Use Period = 25; For information on hazardous substances, refer to the manufacturer’s declaration available under “Downloads” Phoenix Contact 2023 © - all rights reserved https://www.phoenixcontact.com Phoenix Contact USA 586 Fulling Mill Road Middletown, PA 17057, United States (+717) 944-1300 info@phoenixcon.com...
