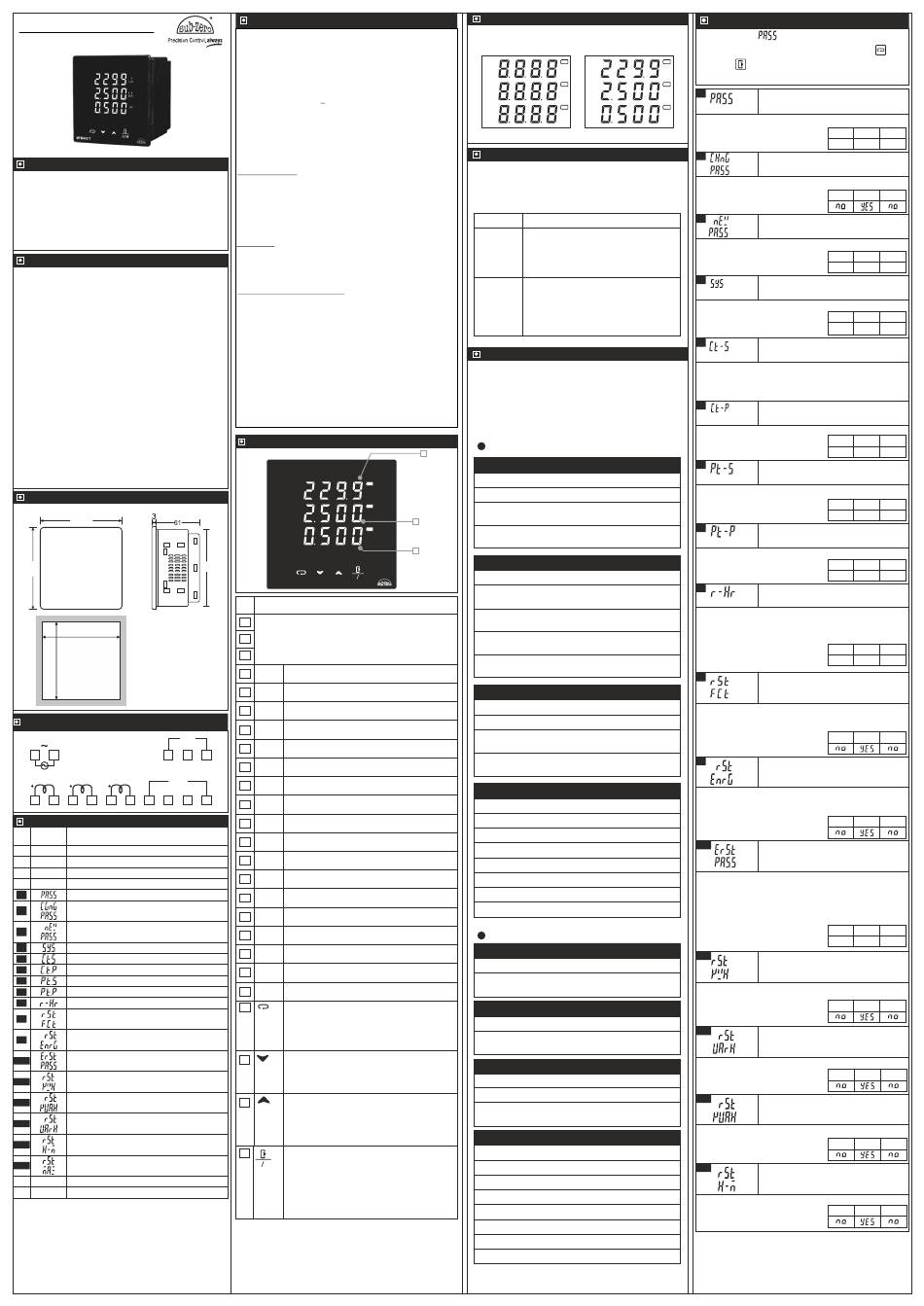

Sub-Zero MFM443-T Instruction Manual

MFM443-T
Instruction Manual
Introduction
The MFM is a panel mounted 96 x 96mm Multifunction Meter for the
measurement of important electrical parameters like AC Voltage,
AC Current, Energy, Power, Frequency and Power Factor
MFM can be configured and Programmed On site for the following :
PT Primary, PT Secondary, CT Primary, CT Secondary (5A or 1A) and
System Type 3 phase 3W or 4W or single phase system. The front panel
has Four keys using which the user can scroll through different screens
and configure the product.
Caution for your Safety
WIRING: The probe and its corresponding wires should never be
installed in a conduit next to control or power supply lines. The electrical
wiring should be done as shown in the diagram. The power supply circuit
should be connected to a protection switch. The terminals admit wires of
upto 2.5sq mm.
WARNING: Improper wiring may cause irreparable damage and
personal injury. Kindly ensure that wiring is done by qualified personnel
only.
Maintenance: Cleaning: Clean the surface of the controller with a soft
moist cloth. Do not use abrasive detergents, petrol, alcohol or solvents.
Notice: The information in this document is subject to change in order to
improve reliability , design or function without prior notice and does not
represent a commitment on the part of the company. In no event will the
company be liable for direct, indirect, special, incidental or consequential
damage arising out of the use or inability to use the product or
documentation, even if advised of the possibility of such damages. No
part of this manual may be reproduced or transmitted in any form or by
any means without the prior written permission of the company.
Controller :Controller should be installed in a place protected by
vibration, water and corrosive gasses and where ambient temperature
does not exceed the values specified in the technical data.
Probe :To give a correct reading, the probe must be installed in a place
protected from thermal influences, which may affect the temperature to
be controlled.
Dimensions & Panel Cutout
Front View Side View
96
96
91mm
91mm
Panel Cutout
All dimensions are in MM.
Connection Diagram
3P3W
230V
V V
R Y
11 12 18 19
L N
I1 I2 I3 3P4W
N V V
S1 S2 S1 S2 S1 S2 R Y
1 2 3 4 5 6 7 8 9
Index
Sr.
Description
Para.
No.
Technical Specification.
User Interface.
Home Page Screen Description
Parameter setting mode.
Enter password.
1
2 Change the password.
Set new password.
3
4 Network selection 3P-3W and 3P-4W.
Select CT secondary ratio.
5
Select CT primary ratio.
6
7 Select PT secondary ratio.
Select PT primary ratio.
8
9 Run Hour Selection
10 Factory Reset
Reset Energy
11
11.1
Energy Reset Password
Reset Active Energy
11.2
11.3 Reset Apparent Energy
11.4 Reset Reactive Energy
11.5
Reset Run Hour
11.6 Reset MAX
Error Messages
Wiring Diagram
Technical Specification
Housing : Front Cover: Polycarbonate Plastic
Back Cover: ABS Plastic
Dimensions : Frontal : 96 X 96mm,
Depth : 61mm
Panel Cutout : 91 X 91mm
Mounting : Flush panel mounting with Fasteners
Protection : IP65 Front
Connections : Terminal connectors.
< 2.5sq mm terminal only with
U-type lugs.
Display : Customized Display
Data storage : Non-volatile flash memory
Operating temp. : 0°C to 60°C (non-condensing)
Operating humidity : 20% to 85% (non-condensing)
Storage temp : -25°C to 60°C (non-condensing)
Supply Voltage : 240 Vac ±20 % , 50/60Hz Standard.
Wiring Input : 3ø-4W, 3ø-3W system.
Measuring Range
Input Rated Voltage : 11 to 500 V AC (L-N)
: 19 to 866 V AC (L-L)
Input Rated Current : Nominal 5A AC
CT Primary : 5 A to 10 kA
CT Secondary : 5 A
PT Primary : 100 V to 500 kV
PT Secondary
: 100 to 500 V AC (L-L)
Electrical Connection : 3ø-4W, 3ø-3W, 2ø-3W, 1ø-2W.
Resolution
Energy : 0.01k, 0.1k, 0.01M, .01M, 1M
(Depending upon CT ratio and
PT ratio )
Current / Voltage / Power : Auto Resolution
Power Factor : 0.001
Measuring Parameter Accuracy
Voltage, Current & AVG : ± 0.5% of Full Scale
Frequency : ± 0.1Hz ± 1 digit
Run Hours : ± 1%
Active Power : 1%
Reactive Power : 1%
Apparent Power : 1%
Active Energy Class : 1
Reactive Energy Class: 1
Apparent Energy Class: 1
Power Factor : ±0.5% of Unity
Display Scrolling : Automatic or Manual
(Programmable)
Power Consumption : 1.5VA Max
Frequency : 45-65 Hz
Run Hours : 0 to 99999.9 Hrs
Burden : 0.5VA @5A per phase
User Interface
k M L1
W h
k V
MAX
L-N
L-L
k M
L2
VArh
k A
VAr
AVG
Total
k M
L3
VAh PF
VA IM Hz
EX
91
A M
MFM443-T
Sr.
Description
No.
1
Electrical parameters like AC Voltage, AC Current,
Frequency, Power, Energy and Power Factor will be seen
2
as Per screen no and auto or manual mode. Kindly refer
Home Page Description.
3
k Kilo
4
5 V Unit Volts
L-N Line to Neutral of corresponding phase
6
L-L Line to Line of corresponding phase
7
V
A Ampere
B 8
20
9 AVG Average value of corresponding parameter
PF Power Factor
10
V
B
10
Hz Frequency
11
M Mega
12
Wh Active Energy
13
14 MAX Max Value of corresponding parameter
VArh Reactive Energy
15
VAr Reactive Power
16
Total Total Value
17
18 VAh Apparent Energy
VA Apparent Power
19
IM Import Energy
20
EX Export Energy
21
Next key :
22
In Manual Mode: To scroll for Next Screen.
In Program Mode: To scroll to Next Parameter.
Note: Kindly refer 'Home Page Screen
Description' for further details.
Down key:
23
In Normal Mode (Auto/Manual):To scroll through
screens one by one in a particular page.
In Program Mode: To decrease Parameter value.
24 Up key :
In Normal Mode (Auto/Manual):To scroll
through screens one by one in a particular page
In Program Mode: To increase Parameter
value.
Exit key :
25
A M
In Normal Mode: Press this key for 6 seconds
to toggle between Automatic/Manual Mode.
In Program Mode: To save the changed
Parameter and exit to Normal mode.
Note: Kindly refer 'Home Page Screen
Description' for further details.
Initial Display when Power is ON
When power is On, entire display part will be On for 5 sec,
MFM will be displayed for 3 sec and then enter in to RUN
mode.
k M
L1
W h
k V
MAX
L-N
L-L
k M
L2
VArh
k A
VAr
AVG
Total
M
k L3
VAh PF
VA IM Hz
EX
1. Entire display Part
Mode
There are two methods to read different parameter Screens on
the display.
1) Auto mode.
2) Manual mode.
Press Exit key for 6 Sec to select Automatic or Manual Mode
Type Description
Auto Mode
In Auto mode, it allows you to monitor
screens of different page at an interval of 5
seconds without any key press
NOTE : By default the unit works in auto
mode.
Manual In Manual mode, using the Enter key
Mode
different parameter Screens can be viewed.
The displayed Screen is seen until you
manually change the Screen.
It allows you to monitor screens of different
page.
Home Page Screen Description
Automatic Mode / Manual Mode Settings :
Press A/M mode for 6 seconds to toggle between Automatic /
Manual Mode.
Note : By Default unit operates in automatic mode. In automatic
mode online pages scroll automatically at the rate of 5 sec per
page. In automatic mode if any key is pressed, unit temporarily
switched to manual mode and the appropriate page is displayed.
For 3Ø – 4W :
1
PAGE 1
Display Line to Neutral Voltage of Three Phases.
Display Line to Line Voltage of Three Phases
Display Instantaneous Line to Neutral Voltage of Three
Phases.
2
Display Instantaneous Line to Line Voltage of Three
Phases.
3
PAGE 2
Display Phase Current of Three Phases.
Displays Active, Reactive and Apparent Power First
Phases.
Displays Active, Reactive and Apparent Power Second
Phases.
Displays Active, Reactive and Apparent Power Third
Phases.
Displays Total Active, Reactive and Apparent Three
Phases.
PAGE 3
Display Instantaneous Current of Three Phases.
Display Power Factor of Three Phases.
Display Average Line to Neutral Voltage, Current of Three
Phases and Power Factor.
Display Average Line to Line Voltage, Current of Three
Phases and Frequency.
PAGE 4
Displays Import Active Energy.
Displays Export Active Energy.
Displays Total Active Energy.
Displays Import Reactive Energy.
Displays Export Reactive Energy.
Displays Total Reactive Energy.
Displays Total Apparent Energy.
Displays Run Hour.
For 3Ø – 3W :
PAGE 1
Display Line to Line Voltage of Three Phases.
Display Instantaneous Line to Line Voltage of Three
Phases.
PAGE 2
Display Phase Current of Three Phases.
Displays Total Active, Reactive and Apparent Power Three
Phases.
PAGE 3
Display Instantaneous Current of Three Phases.
Display Average Power Factor of Three Phases.
Display Average Line to Line Voltage, Current of Three
Phases and Frequency.
PAGE 4
Displays Import Active Energy.
Displays Export Active Energy.
Displays Total Active Energy.
Displays Import Reactive Energy.
Displays Export Reactive Energy.
Displays Total Reactive Energy.
Displays Total Apparent Energy.
Displays Run Hour.
Parameter Setting Mode
Display will show
set value and to go to the next parameter by pressing
L1 Press the key to save the set value and to come out of
k V
L-N
L-L parameter setting after changing the set value.
L2
k A
1
AVG Function: To set password.
L3
PF
Hz
This parameter is used to set the password.
2. Run Mode
Note : Default password is "11"
2
Function: To change the password.
This parameter is used to change the password.
3
Function: To set new password.
This parameter is used to set the new password.
4
Function: Network selection.
Network selection ie, either 3 Phase 3 wire or 3 Phase 4 wire.
5
Function: To select CT Secondary ratio.
To select CT Secondary ratio.
Fixed Value 5A.
6
Function: To select CT Primary ratio.
To select CT Primary ratio.
7
Function: To select PT Secondary ratio.
PT Secondary: To select PT Secondary ratio.
8
Function: To select PT Primary ratio.
PT Secondary: To select PT Primary ratio.
9
Function: Run Hours selection.
For 0 run hour selection, ON hours are Run Hour.
For other than 0 run hour selection, ON hours are selectable
between 1% to 10% of Run Hour .
10
Function : To restore default settings of
the controller.
When set to YES all parameters are programmed to factory
values.
Useful to debug setting related problems.
11
Function : To reset Energy.
This parameter used to Reset Energy, Run Hour and MAX
values.
11.1
Function : Password to reset Energy,
Run Hour and MAX.
To reset energy, Run hour and MAX values user need to
enter password.
By entering correct password in this parameter user will be
able to reset all energy parameter, Run Hour, MAX values.
This password will be value greater than parameter mode
password by 1.
11.2
Function : To reset Active Energy.
If selected yes Active Energy will be Reset.
11.3
Function : To reset Apparent Energy.
If selected yes Apparent Energy will be Reset.
11.4
Function : To reset Reactive Energy.
If selected yes Reactive Energy will be Reset.
11.5
Function : To reset Run Hours.
If selected yes Run Hours will be Reset.
. Press UP/DOWN keys to modify the
key.
Min Max Fac.
0 9998 11
Min Max Fac.
Max Fac.
Min
0 9998 0
Min Max Fac.
3P4 3P3 3P4
Min Max Fac.
5 A 10 kA 5 A
Min Max Fac.
100V 500V 350V
Min Max Fac.
100V 500kV 350V
Min Max Fac.
0 10 0
Min Max Fac.
Min Max Fac.
Min Max Fac.
0 9999 0
Min Max Fac.
Min Max Fac.
Min Max Fac.
Min Max Fac.
