Sub-Zero VAF433-T Operating Manual

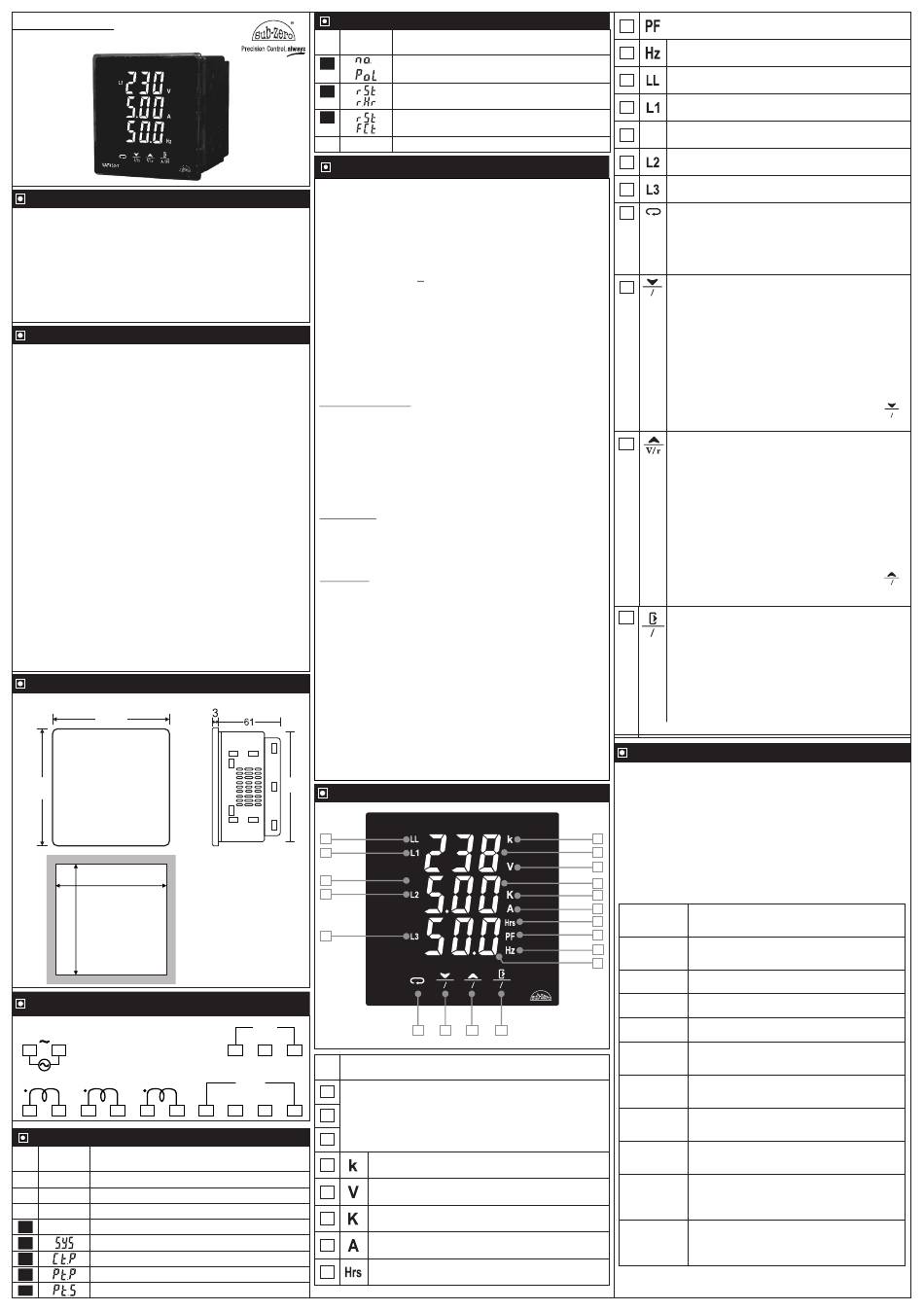

VAF433-T
Operating Manual

Introduction

The VAF is a panel mounted 96 x 96mm Digital Panel Meter for the
measurement of important electrical parameters like AC Voltage, AC
Current, RPM, Frequency and Power Factor VAF can be configured
and Programmed On site for the following :
PT Primary, PT Secondary, CT Primary, CT Secondary (5A or 1A) and
System Type 3 phase 3W or 4W or single phase system.
The front panel has Four keys using which the user can scroll through
different screens and configure the product.
Caution for your Safety
WIRING: The probe and its corresponding wires should never be
installed in a conduit next to control or power supply lines. The electrical
wiring should be done as shown in the diagram. The power supply
circuit should be connected to a protection switch. The terminals admit
wires of upto 2.5sq mm.
WARNING: Improper wiring may cause irreparable damage and
personal injury. Kindly ensure that wiring is done by qualified personnel
only.
Maintenance: Cleaning: Clean the surface of the controller with a soft
moist cloth. Do not use abrasive detergents, petrol, alcohol or solvents.
Notice: The information in this document is subject to change in order
to improve reliability , design or function without prior notice and does
not represent a commitment on the part of the company. In no event will
the company be liable for direct, indirect, special, incidental or
consequential damage arising out of the use or inability to use the
product or documentation, even if advised of the possibility of such
damages. No part of this manual may be reproduced or transmitted in
any form or by any means without the prior written permission of the
company.
Controller :Controller should be installed in a place protected by
vibration, water and corrosive gasses and where ambient temperature
does not exceed the values specified in the technical data.
Probe :To give a correct reading, the probe must be installed in a place
protected from thermal influences, which may affect the temperature to
be controlled.
Dimensions & Panel Cutout
Front View
96
96
91mm
91mm
Panel Cutout
All dimensions are in MM.
Connection Diagram
230V
11 12
L N
I1 I2 I3
S1 S2 S1 S2 S1 S2
3 5 6
1 2 4
Index
Sr.
Description
Para.
No.

Technical Specification.

User Interface.

Home Page Screen Description

Parameter Setting Mode.
1
Network selection either 3P-3W and 3P-4W.
2
Select CT primary ratio.
3
Select PT primary ratio.
4
Select PT secondary ratio.
5
Index
Sr.
Para.
No.
6
7
8
Technical Specification
Housing
Dimensions
Panel Cutout
Mounting
Protection
Connections
Display
Data storage
Operating temp. : 0°C to 60°C (non-condensing)
Operating humidity : 20% to 85% (non-condensing)
Storage temp
Power Input
Wiring Input
Measuring Range
Input Rated Voltage :
Input Rated Current : Nominal 5A AC
CT Primary
CT Secondary
PT Primary
PT Secondary
Electrical Connection : 3ø-4W, 3ø-3W, 2ø-3W, 1ø-2W.
Resolution
Current / Voltage
RPM
Run Hour
Accuracy
Voltage
Current & Average Current :
Frequency
Run Hour
RPM
Display Scrolling
Power Consumption
RPM
Side View
Frequency
Run Hours
Burden
91
User Interface
11
12
13
14
15
3P3W
V V V
R Y B
18 19 20
Sr.
Description
No.
3P4W
1
Electrical parameters like AC Voltage, AC Current,
N V V V
R Y B
RPM, Frequency and Power Factor will be seen as Per
7 8 9 10
2
screen no and auto or manual mode.Kindly refer Home
Page Descriptor.
3
4
5
6
7
8
Description
Select number of poles.
Clear run hours.
Restore factory defaults
Error Messages
: Front Cover: Polycarbonate Plastic
Back Cover: ABS Plastic
: Frontal : 96 X 96mm, Depth : 61mm
: 91 X 91mm
: Flush panel mounting with Fasteners
: IP65 Front
: Terminal connectors.
< 2.5sq mm terminal only with U-type
lugs.
: 3 X 17mm 7 segment White display,
15 Iconic LEDs for Indication
: Non-volatile flash memory
: -25°C to 60°C (non-condensing)
: 240 Vac ±20 % , 50/60Hz Standard.
: 3ø-4W, 3ø-3W system.
11 to 00 V AC (L-N) 5
: 19 to 865 V AC (L-L)
: 5 A to 10 kA
: 5 A
: 100 V to 500 kV
: 100 to 500 V AC (L-L)
: Resolution depends upon CT,
PT Primary settings
: 0.1
: 0.1 Hr
: ± 0.5% of F.S. ± 2 digits.
± 1% of F.S. ± 2 digits
: ± 0.1 Hz ± 1 digit
: ± 1%
: ± 0.5%
: Automatic or Manual
(Programmable)
: 1.5VA Max
: 1350 to 1950
Pole: 0
(Range: 0-98, selectable in steps
of 2)
: 45-65 Hz
: 0 to 99999.9 Hrs
: 0.5VA @5A per phase
AVG
I h V r A M
VAF433-T
16 17 18 19
Unit KiloVolts
Unit Volts
Kilo Ampere
Ampere
Unit for Run Hours
Power Factor
9
Frequency units Hertz
10
Line to Line value of corresponding parameter
11
Line to Neutral value of First Phase
12
AVG Average value of corresponding parameter
13
Line to Neutral value of Second Phase
14
Line to Neutral value of Third Phase
15
Next key :
16
In Manual Mode: To scroll for Next Screen.
In Program Mode: To scroll to Next Parameter.
Note: Kindly refer 'Home Page Screen
Description' for further details.
Down key/ I/ h :
17
I
h
In Normal Mode (Auto/Manual):
Press this key for 1 second, the First Screen
Displays phase current of three phases. Line to
neutral and line to line voltage of three phases are
displayed one by one.
Press this key for 3 seconds, to display Run
Hours (for non zero poles).
In Program Mode: To increase Parameter
value.
Note: To return back to current page, press
for 3 seconds.
Up key :
18
In Normal Mode (Auto/Manual):
Press this key for 1 second.
The First Screen displays line to neutral voltage
of three phases.
The Second Screen displays line to line voltage
of three phases.
Press this key for 3 seconds.
Displays rpm for non zero poles.
In Program Mode: To increase Parameter
value.
Note: To return back to current page, press
for 3 seconds.
19 Exit key :
A M In Normal Mode:
Press this key for 4 seconds to toggle
between Automatic/Manual Mode.
In Program Mode:
To save the changed Parameter and exit to
Normal mode.
Note: Kindly refer 'Home Page Screen
Description' for further details.
Home Page Screen Description
Automatic Mode / Manual Mode Settings :
Press A/M mode for 4 seconds to toggle between
Automatic/Manual Mode.
Note : By Default unit operates in automatic mode. In automatic
mode online pages scroll automatically at the rate of 5 sec per
4 page.In automatic mode if any key is pressed,unit temporarily
switched to manual mode and the appropriate page is displayed.
1
5
In Automatic Mode :
2
1. Display Descriptions in 3Ø – 4W :
6
7
1st Screen Displays Line to Neutral voltage of all
8
3 Phase
9
2nd Screen Displays Line to Line voltage of all 3
10
Phase
3
rpm
3rd Screen
Displays current of all 3 Phase
4th Screen
Displays Run Hours
5th Screen
6th Screen
Displays Power Factor of Line to Line
Voltage.
7th Screen
Displays Line to Neutral voltage, current
and frequency of first Phase
8th Screen
Displays line to neutral voltage, current
and frequency of second Phase
9th Screen
Displays line to neutral voltage, current
and frequency of third Phase
10th Screen Displays average line to neutral voltage,
average current of three phase and
frequency.
11th Screen
Displays average line to line voltage,
average current of three phases and
frequency of present phase.
I h
V r
