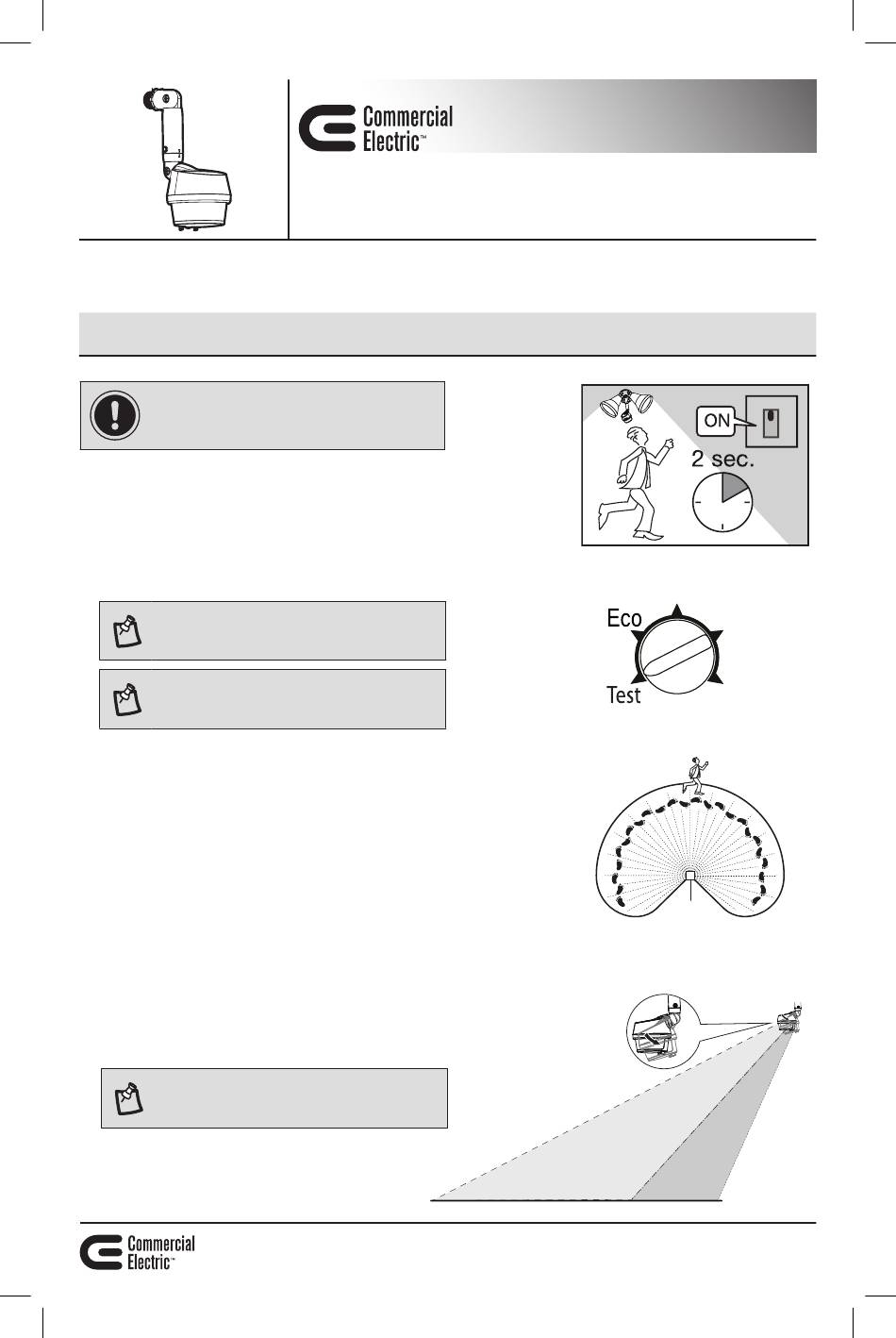

Commercial Electric CE-2701 Quick Reference Manual

Sensor Set Up Will Be Easier If You Read This

Operation

IMPORTANT: This guide is a quick reference only for
common features of the product and troubleshooting tips.
Please read and reference the full instruction manual for
installation, safety, and additional information.

Testing and Adjusting the Motion Sensor

□
Turn on power and allow the motion sensor to warm up for about 60
seconds. Switch the knob to Test to go into TEST mode. Regardless
of whether it's day or night, the lights will come on for approximately
2 - 3 seconds, every time the sensor detects motion.
NOTE: The motion sensor will need to completely warm
up (60 seconds) before beginning the setup process.
NOTE: In order to use the HI-LO feature, make sure to use
DIMMABLE bulbs which are compatible.
□
Perform a "walk test" to adjust the sensor coverage area. Walk in
an arc across the front of the motion sensor (A).
□
Watch the light. The light will come on indicating motion has been
detected.
□
Stop, wait for the light to turn off, and then begin walking again.
□
Continue this process until the detection zone has been established.
□
Adjust the sensor up, down, or side to side to change the motion
sensor (A) detection zone to your desired coverage area.
□
After completing the testing, switch the knob to your desired setting
and the sensor will be ready to go.

Control The Detection Range

□
To shorten the detection distance, tilt the sensor head downward.
NOTE: Please refer to the instruction manual for detailed
explanation of each function and troubleshooting.
Quick Reference Guide
CE-2701 Motion Sensor
Item #1002315002
Model #CE-2701-WH
Item #1002314998
Model #CE-2701-BZ
1min
270°
A
Please contact 1-877-527-0313 for further assistance.
