IMPORTANT, RETAIN FOR FUTURE REFERENCE:
If you have any questions or any missing parts pertaining to the assembly of this product, before
returning it to your retailer, please contact our customer service department at 1-888-690-9800
or email SERVICE@SUNVILLA.COM, 8:00 a.m. - 5:00 p.m. PT, Monday - Friday.
PREPARATION
Before beginning assembly of this product, make sure all parts are present. Compare parts with
Package Contents list and hardware contents list. If any parts are missing or damaged, do not
attempt to assemble this product. Stop and call our customer service center at 1-888-690-9800.
SAFETY
INFORMATION
Please read and understand this entire manual before attempting to assemble or install the product.
This outdoor furniture is designed and made for personal non-commercial use. It should not be
used as a toy or tool. Children should not engage in the assembly, removal, or disassembly, of the
product.

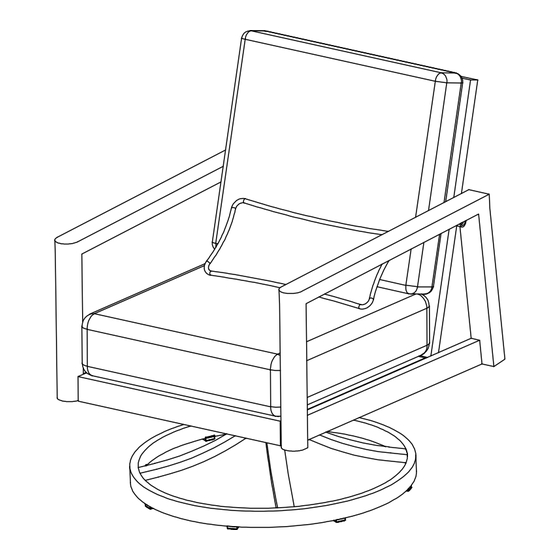

Swivel Chair
Assembly / CARE & USE INSTRUCTIONS
READ CAREFULLY
PAGE 1 OF 6
Made in China
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SUNVILLA FRA10504SA
Summary of Contents for SUNVILLA FRA10504SA
- Page 1 If you have any questions or any missing parts pertaining to the assembly of this product, before returning it to your retailer, please contact our customer service department at 1-888-690-9800 or email SERVICE@SUNVILLA.COM, 8:00 a.m. - 5:00 p.m. PT, Monday - Friday. PREPARATION Before beginning assembly of this product, make sure all parts are present.
- Page 2 Aluminum Swivel Chairs ITEM# FRA10504SA M6*35 Bolt Chair Seat Chair Back M8*35 Bolt Right Arm M8*30 Bolt M8*45 Bolt Left Arm Metal plate Chair Base φ13*φ8*2.0 Spring washer Seat Cushion Back Cushion Lumbar Pillow WARNING: To avoid damage of your...
- Page 3 Attach the chair seat (A) to the chair back (B) with bolts (AA) . Once all bolts have been installed and hand tightened. Attach the chair arm (C&D) to the chair back and chair seat. Hand tighten BB&CC, do not tighten until all bolts have been installed.
- Page 4 Assembly Step 4: Once all bolts have been installed and hand tightened, go back and tighten firmly with wrench (HH) and hex wrench(II). Step 5: Attach the chair base (E) to the chair seat. Please be careful to assemble in the correct direction. PAGE 4 OF 6...
- Page 5 Assembly Step 6: Once all connections are made, hand tighten DD & EE & FF & GG, than use wrench (HH) to fully tighen all bolts. Step 7: Return chair to upright position onto a flat level surface. Place seat cushion (F), back cushion (G) and lumbar pillow (H) on the chair as shown. PAGE 5 OF 6...
- Page 6 The product will be used for domestic. Questions, problems, missing parts? Before returni ng to your retailer, call our customer service department at 1-888-690-9800, 8:00a.m.– 5:00p.m. PST / 11:00a.m. - 8:00p.m., EST, Monday-Friday. Sunvilla Corporation Customer Service Center PAGE 6 OF 6 , USA...
