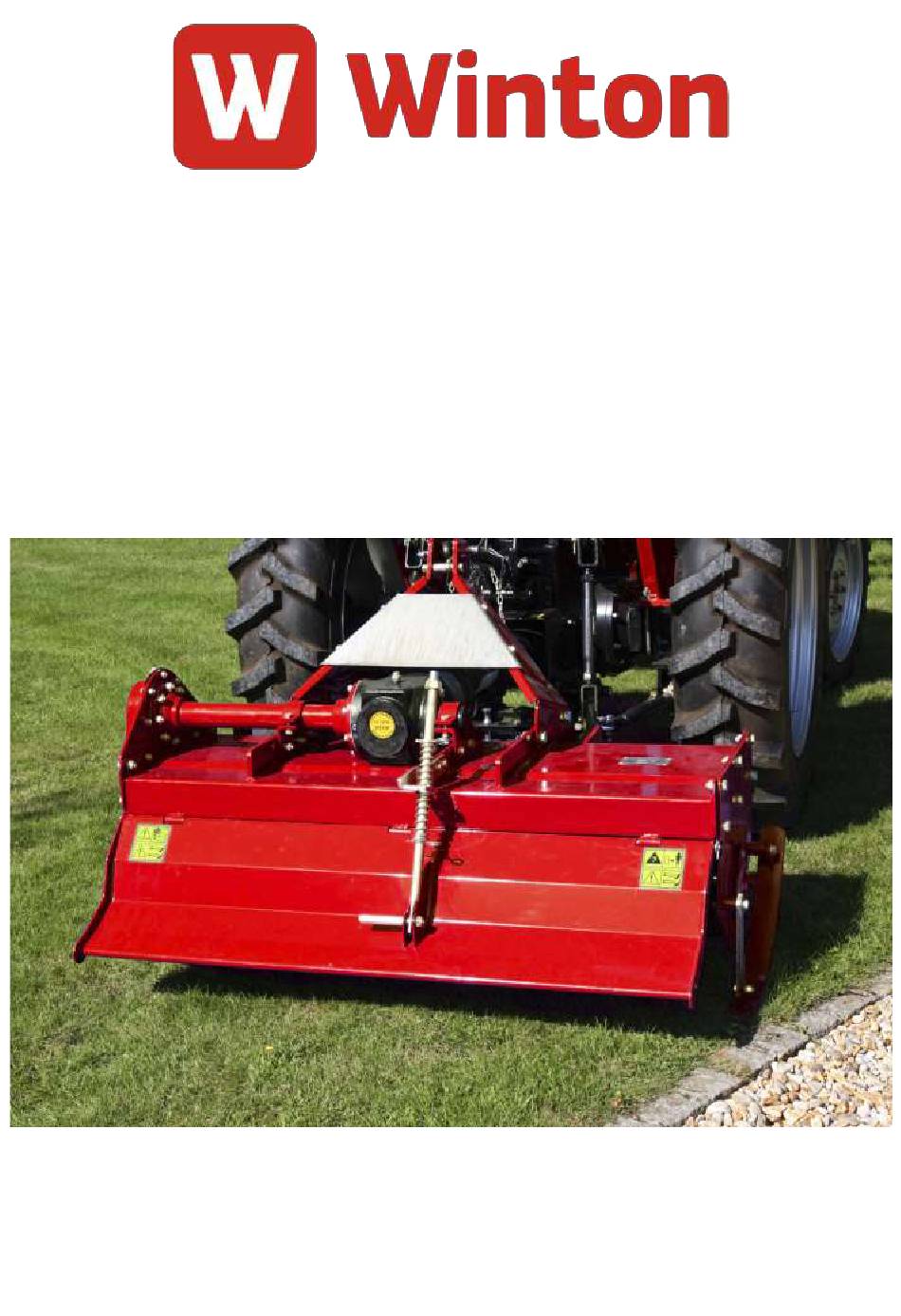

- Page 1 WINTON ROTOVATOR WRT SERIES OWNERS MANUAL PLEASE READ THIS MANUAL BEFORE OPERATING THE MOWER...
- Page 2 This manual should be considered a permanent part of this machine and should remain with it even if the machine is subsequently sold. Winton continually seeks advancements in its product design and quality. Therefore, while this manual contains the most current product information available at the time of printing, there may be minor discrepancies between your machine and this manual.
-
Page 3: General Safety Information
Misuse: This machine is designed for use with compact tractors, and should be used only for the indicated purpose. Winton does not take responsibility if the machine is used for any other purpose. Children must not operate the machine under any circumstance. - Page 4 General Safety Information (Continued) Machinery Pre-Use Checks On receipt of your new Winton machine and again within the first 4 hours of use, or the ‘shake in period’, we always recommend checking over the machine. • Check all bolts, nuts and screws are tight on the unit.
-
Page 5: Table Of Contents
Gear Reservoir Oil Change Rear Guard Adjustment Tilling Depth Adjustment Parts Diagram 1 Parts List 1 12-13 Parts Diagram 2 Parts List 2 PTO Shaft Resizing Winton Product Warranty Trouble-Shooting 1. Dimensions & Specifications Model WRT125 WRT150 Weight 285kg 320kg... -
Page 6: Installation & Set-Up
Oil level of the gearbox. [Section 5 & 6] • Rear guard is correctly adjusted [Section 7] • Tilling depth is correctly adjusted [Section 8] • Tightness of all bolts, nuts and screws. • All protective guards are in place and storage stands are removed. Winton WRT... -
Page 7: Operating Advice
Take care on sloped areas, work at a slow speed and upwards (or downwards) rather than across the gradient to reduce the risk of overturning. Never operate on wet, slippery grass/soil or where the tyres are struggling to grip. Winton WRT... -
Page 8: Blade Replacement
(left-handed to one side then right-handed to the other) as shown in the image. 3. Replace bolts and nuts (1). 4. Check all blade bolts are secured and blades are adjusted correctly. 5. Run the rotovator for 5-10 minutes and re-check bolt tightness. Winton WRT... -
Page 9: Gearbox Oil Check & Change
If draining and replacing oil, then remove drain plug (3) and let the oil drain out. Replace drain plug (3) then replace oil as above. Oil Change #1 Oil Change #2 Oil Change #3 Oil Change #4 Oil Change #5 Oil Change #6 Winton WRT... -
Page 10: Gear Reservoir Oil Change
250 hours/yearly (whichever is first) Remove breather/filler plug (4) and drain plug (5) to allow the oil to drain from the reservoir. Replace and screw in drain plug (5), replace oil using a funnel through filler hole (4). Replace breather/filler plug (4). Winton WRT... -
Page 11: Rear Guard Adjustment
Move both R clip (1) up or down and insert into one of the holes (3). Move R clip (2) up or down the same number of holes into (4). Ensure the springs remain between the two R clips (1 & 2). Winton WRT... -
Page 12: Tilling Depth Adjustment
1.Remove bolt (5) and loosen off bolts (6). 2.Replace bolt (5) into the selected hole (7) and tighten. 3.Re-tighten bolts (6) in position. 4.Repeat steps (1-4) above on the other side of the machine. Winton WRT... - Page 13 Store the machine in a dry, level area and ensure it is stable and unable to move or overturn. Skids: Check the condition of the side skids and replace if worn. *The periods recommended are based on normal operating conditions. Severe or unusual conditions may require more frequent maintenance. Winton WRT...
-
Page 14: Parts Diagram
10. Parts Diagram 1 Winton WRT... -
Page 15: Parts List
MZ105.130 Spacer bush 501011126 GB5783-M12X30 Bolt M12 703140005 MZ105.115 Locking shim 511022652 GB276-6306 Deep groove bearing 501011858 GB5785-M12x1.25x35 Bolt half thread M12 510020427 GB13871-FB-35x62x12 Oil seal 31-3 703190126 1G-150.00.103 125 left blade 31-4 703190126 1G-150.00.103 150 left blade Winton WRT... - Page 16 503010763 DIN985-M12 Nut M12 703190231 1G-150.00.145 Adjusting rod bracket 506010062 GB97.1-22 Plain washer 703190234 1G-150.00.149A Spring φ35X100 703190233 1G-150.00.148 Adjustment rod/tube 503010046 GB6170-M10 Hex nut M10 64-4 803170060 1G-125.00.015 Body plate 125 64-6 803190062 1G-150.00.015 Body plate 150 Winton WRT...
- Page 17 Notes Winton WRT...
-
Page 18: Parts Diagram
12. Parts Diagram 2 Winton WRT... -
Page 19: Parts List
803190153 1G-150.01.011 Left side plate 501011127 GB5783-M12X35 Bolt M12 703190186 1G-150.01.106-2 Intermediate middle gear shaft 506060199 GB893.1-100 Ring 511022656 GB276-6309 Bearing lower gear 510020417 GB13871-FB-55x80x8 Oil seal lower gear 703190184 1G-150.01.104 Lower gear axle 501011126 GB5783-M12X30 Bolt M12 Winton WRT... -
Page 20: Pto Shaft Resizing
Shorten the equally long guard tubes to the same length as the driveline tubes. Grease the internal driveline tube. Fit the guard on the shaft. Make sure that the length allows for at least 16cm (6 inches) of overlap. Winton WRT... -
Page 21: Winton Product Warranty
We always strive to create great products, but when something does go wrong we have a strong network of resellers on hand throughout the UK to help out. Warranty Claims Before you get in touch here are 5 pieces of information your Winton reseller will need to progress your claim: •... -
Page 22: Trouble-Shooting
Check rotor is not warped or damaged. Check oil type is correct and at the correct level in the gearbox Gearbox getting excessively hot and gear reservoir. Always consult your Winton dealer if you have any questions about your machine. Winton WRT... - Page 23 Notes Winton WRT...
- Page 24 www.wintonmachinery.co.uk...
