- Page 1 INTUITION DISPLAY Operational Manual MODEL NAME: INTUITION DISPLAY MODEL NO.: ID001 VERSION NO.: TRADE MARK: COMPANY: CYC MOTOR LTD. AUTHOR: MR. FELIX / MR. PAUL LAI Counter Checking: MR. HUNTER DATE: AUG. 25, 2023 CYC MOTOR LTD. Confidential Proprietary...
-
Page 2: Product Overview

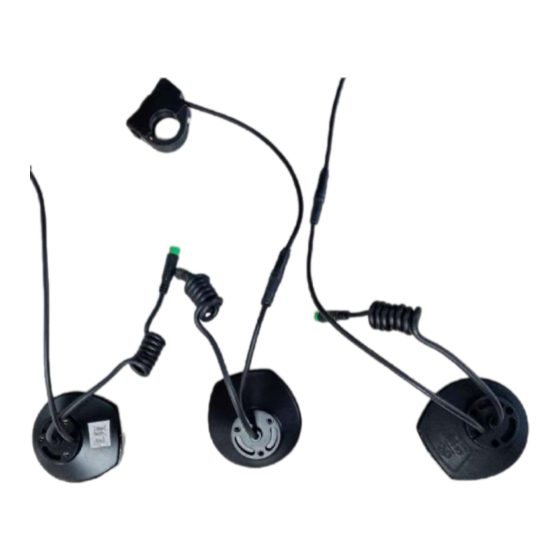

INTUITION DISPLAY Product Overview The product under concern which is the smart display for the ebike, it displays the parameters of battery, walk modes, controller and torque sensors as well, and also equipped with Bluetooth chip that enable user to turn on the ANT+ lights, access to the phone app wirelessly. - Page 3 INTUITION DISPLAY Product diagram Back view CYC MOTOR LTD. Confidential Proprietary...
-
Page 4: Front View
INTUITION DISPLAY Front view CYC MOTOR LTD. Confidential Proprietary... - Page 5 INTUITION DISPLAY Key-knob (Power On Button) CYC MOTOR LTD. Confidential Proprietary...
-
Page 6: Power Supply
INTUITION DISPLAY Power Supply CYC MOTOR LTD. Confidential Proprietary... - Page 7 INTUITION DISPLAY Button (Key) Side v Front view 1 CYC MOTOR LTD. Confidential Proprietary...
- Page 8 INTUITION DISPLAY Front view 2 Power On CYC MOTOR LTD. Confidential Proprietary...
- Page 9 INTUITION DISPLAY Press “POWER” button and hold Release finger when Logo show up. At first time, it needs to be enter password, say “0000”, By pressing UP or DOWN button to select the digits and press “M” button if the digit want to be entered.
-
Page 10: Password Confirmation
INTUITION DISPLAY Password confirmation By navigating the UP or DOWN button and locate the orange mark on the “circle tick” then press “M” button to confirm the password setting. Product at normal operating once complete the above procedures. CYC MOTOR LTD. Confidential Proprietary... - Page 11 INTUITION DISPLAY CYC MOTOR LTD. Confidential Proprietary...
- Page 12 INTUITION DISPLAY For Fixed 2.4GHz wireless transmission, there’s a label marking on the back of the DUT (Device Under Test) and operation procedure are the same as above except It radiates 2.4GHz wireless frequency, once it power on, it starting its 2.4GHz frequency transmission, Non-stop.
- Page 13 INTUITION DISPLAY Accessory Part: The DUT (Device Under Test) the only accessory part which is the key-knob, which is already well connected to the DUT. CYC MOTOR LTD. Confidential Proprietary...
- Page 14 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
