- Page 1 Wrist Type Blood Pressure Monitor BPM32B RoHS REACH MDSS GmbH Schiffgraben 41 30175 Hannover Germany AViTA Corporation 9F., No. 78, Sec. 1, Kwang Fu Rd., San Chung Dist., New Taipei City 24158, Taiwan. China, AViTA(WUJIANG) Importer Distributor...
-
Page 2: Table Of Contents
INSTRUCTION MANUAL Please read this instruction manual carefully before operating this unit Contents Intended Use ......................1 Important Information Before Use ................. 5 Blood Pressure Monitor Features ................. 13 Description of LCD Display ..................14 Battery Installation ....................16 Setting the Date and Time ..................17 Applying Your Cuff .................... - Page 3 Troubleshooting ....................34 Cleaning and Disinfecting ..................37 Technical Specification ..................38 EMC Tables ......................40 Explanation of Symbols ..................44...
-
Page 4: Intended Use
Intended Use The product automatically measures human beings Systolic, Diastolic blood pressure and pulse rate by oscillometric method. The measurement results are displayed on the LCD. Measurement position is at human being's wrist. The intended use of this over-the-counter device is for adults with wrist circumference ranging from 125 mm to 210 mm (Approx.4.9 ~ 8.3 inches) and for home use. - Page 5 CAUTION: • Beware of blood flow interference and resulting harmful injury to the patient caused by continuous cuff pressure. • Pressurization of the cuff can temporarily cause loss of function of monitoring ME equipment simultaneously being used on the same limb.
- Page 6 veins are undergoing medical treatment, e.g., intravascular access or therapy, or an arteriovenous (AV) shunt. • This product is suitable for use in the home healthcare environment. • Keep this device out of the reach of children. Strangulation may result from baby or child entanglement in cables.
- Page 7 • No modification of this equipment is allowed. • High BMI health condition users may result varied.
-
Page 8: Important Information Before Use
Important Information Before Use 1. Blood pressure measurements should only be interpreted by a physician or a trained health care professional who is familiar with your medical history. Through regular use of this device and recording of your measurements, you can keep your physician informed of the changes in your blood pressure. - Page 9 5. Remove any constrictive clothing or jewelry that may interfere with the cuff placement. 6. Keep the monitor stable during measurement to achieve an accurate reading. Remain still; do not talk during the measurement. 7. Record your daily blood pressure and pulse readings on a chart. 8.
- Page 10 (every 3 years). obtain the service please contact AViTA Corp. for the address of the repair location. Enclose with the Proof of Purchase. Include $10.00 USD...
- Page 11 for the return shipping and handling. Accompany with a letter, with your name, address, phone number, and description of the specific problem or routine check-up. Pack the device carefully with bubble wraps (if there is) to prevent damages cause during transit. Due to possible losses in transit, it is recommended insuring the device with return receipt requested.
- Page 12 limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
- Page 13 which the receiver is connected. -Consult the dealer or an experienced radio/ TV technician for help. CAUTION: Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 14 RF exposure warning The equipment complies with FCC RF exposure limits set forth for an uncontrolled environment. The equipment must not be co-located or operating in conjunction with any other antenna or transmitter. Canada, Industry Canada (IC) Notices This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s).
- Page 15 This device must accept any interference, including interference that may cause undesired operation of the device. Canada, avis d'Industry Canada (IC) L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence.
-
Page 16: Blood Pressure Monitor Features

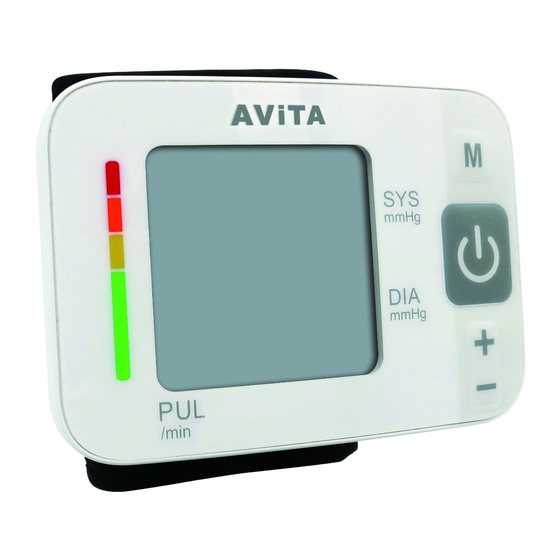

Blood Pressure Monitor Features 1. Hypertension Indicator(WHO indicator) 2. LCD Display 3. Memory Recall Button 4. Power Button 5. Advance Button 6. Retrogress Button... -
Page 17: Description Of Lcd Display
Description of LCD Display Memory sets Memory Symbol Average Measurement Symbol Low Battery Symbol Inflation Symbol(Positioning Indicator Up) Deflation Symbol(Positioning Indicator Down) Date... - Page 18 Time Digital Display Heartbeat Symbol Hypertension Indicator Irregular Heart Beat Symbol Positioning Indicator “OK”...
-
Page 19: Battery Installation
Battery Installation Low battery warning: It is necessary to replace the batteries when the Low Battery symbol appears on the display, or when the display does not turn on after the POWER button is pressed. Replacing the Battery: - Slide the battery cover on the bottom of the monitor. - Insert or replace 2 x 1.5 V AAA batteries into the battery compartment, ensuring to match the indicated polarity symbols. -
Page 20: Setting The Date And Time
and heat. - It is recommended to remove the batteries if the unit will not be used for an extended period of time. - Batteries must be disposed of in accordance with local environmental and institutional policies. - Remove the battery during extended storage. - It is recommended not to use rechargeable, unqualified or different spec battery may damage the device or cause circuit shortcut. - Page 21 confirm the “Year”. (3) Next, the “Month” will blink. Repeat steps 2 to set the “Month” and “Day”, then “hour”, then “Minute”. (4) After setting the minute, the unit will automatically exit out or press power button the date/time setting mode and briefly show the word OFF before shutting down.
-
Page 22: Applying Your Cuff
Applying Your Cuff It is important to avoid smoking, eating, taking medication, alcohol consumption or physical activity 30 minutes prior to taking a reading. If for any reason you are unable to or should not use your left wrist, please modify the instructions for cuff application to your right wrist. Your physician can help you identify which wrist is best for you to take measurements from. - Page 23 of your wrist facing you. - Adjust the cuff approx. 1 cm from the edge of the head of the ulna bone. - The cuff should fit comfortably, yet snugly around your wrist. - Blood pressure naturally varies from one wrist to the other;...
-
Page 24: Measurement Of Pulse Rate And Blood Pressure
Measurement of Pulse Rate and Blood Pressure Please read the preceding portions of this manual prior to taking your first reading. Rest your elbow on a solid surface with your palm facing upward. Elevate your wrist so that the cuff is at the same level as your heart. - Page 25 The measurement starts automatically once the correct position has been obtained. Do not move or speak while the measurement is in progress. The cuff will automatically begin to inflate, with the display showing the increasing pressure in the cuff. As the pressure increases, an arrow pointing up will appear on the display.
-
Page 26: Hypertension Indicator
minutes. Hypertension Indicator This monitor comes equipped with a Hypertension Indicator that automatically compares each reading to defined levels established by the World Health Organization and provides a helpful cue if your reading falls into one of the stages that could potentially indicate increased risk. -
Page 28: Irregular Heartbeat Detector
Irregular Heartbeat Detector Your digital blood pressure monitor features an Irregular Heartbeat Detector. Irregular Heartbeats may influence the results of the measurement. If the monitor detects the Irregular Heartbeats during measurement, the symbol will appear on the display with the measurement values. - Page 29 INPORTANT INFORMATION: This blood pressure monitor is not designed for use by people with arrhythmias nor for diagnosing or treating an arrhythmia problem. As a safeguard, we recommend that if you have arrhythmias such as atrial or ventricular premature beats and atrial fibrillation or any other special conditions you should check with your physician before using your blood pressure monitor.
-
Page 30: Memory Function
Memory Function Recalling Measurements in Memory: Press and release the “M” button. The unit will first display the average of the last 3 stored measurements. Continue to press the “M” button to successively view the next previously stored measurements. Measurements will appear on the display from most current to oldest;... - Page 31 User memory: To select the relevant user memory, press the button “+” or “-“when the device is switched off. Average values: - A3 showed on the display. The average value of the last 3 stored measurements in this user memory is displayed. - Press the button M.
- Page 32 Clearing Measurements from Memory: From power display off, press and hold down the “M” button until the display shows CLr. This indicates that all measurements have been erased.
-
Page 33: Data Transferring
Data Transferring This product is a wrist type blood pressure monitor. Design without entering personal information. The device has a transmission function. During the transmission process, the measurement data is designed to be encrypted, and will not be tampered with unauthorized access nor retrieve user-related information. - Page 34 Bluetooth function. Set Up Process (1) Please determine your mobile phone or computer has BLE4.2. (2) Turn on the BPM32B, it means BPM32B is under broadcast condition. (3) Please check the connecting condition from your mobile phone or computer.
-
Page 35: Error Codes
2. Turn on the Bluetooth function of device to search the blood pressure monitor. Then the blood pressure monitor will be searched and connected the Bluetooth device. 3. After the connection is completed, you can press memory recall button to display the memory result on LCD. Each result showed on LCD, the result will be transmitted by Bluetooth immediately. - Page 36 Error Code Cause Corrective Action Err 02 Measured abnormal Take a rest for 3~5 minutes. Re-apply values. the cuff and take a measurement again. Err 03 Inflation fault. Re-apply the cuff and take a measurement again. Memory error. Take off batteries to reboot the device, then take another measurement.
-
Page 37: Troubleshooting
Troubleshooting Problem Cause Remedy The reading The wrist cuff is not at Measure while in the correct is extremely heart level. posture. low (or The cuff is not wrapped Wrap the cuff correctly. high). snugly around the wrist. The arms and Relax and try taking the shoulders are tense. - Page 38 Problem Cause Remedy The blood pressure is different each Blood pressure readings time. The reading is extremely low (or constantly vary with time of high). day and how relaxed you are. Take several deep breaths and try to remain relaxed before taking a measurement.
- Page 39 Problem Cause Remedy Errors with The machine must be wrist positional adjusted according to the instruction manual and with professional...
-
Page 40: Cleaning And Disinfecting
Cleaning and Disinfecting • Only use a soft, damp cloth to clean the monitor. Please do not use thinner, alcohol, detergents or solvents. • The cuff can be cleaned carefully using a slightly damp cloth and mild soap solution. Do not completely immerse the cuff in water. •... -
Page 41: Technical Specification
Technical Specification • Measuring range : Blood Pressure : 40~255 mmHg Pulse Rate : 40~199 beats/min • Calibration Accuracy : Pressure : ± 3 mmHg Pulse rate : ± 4% of reading • Operating environment : 10℃~40℃ (50℉~104℉) 15% to 85% relative humidity (non-condensing) Atmospheric Pressure: 700~1060 hPa •... - Page 42 • Weight : approx. 110g (exclude batteries) • Dimensions : approx. 85mm × 60mm × 24.4mm (L×W×H) • Cuff circumference : approx. 12.5~21 cm • Lifetime : 3 years • Battery life: above 300 times...
-
Page 43: Emc Tables
EMC Tables BPM32B is intended for use in the electromagnetic environment specified below. The customer or the user of BPM32B must make sure that it is used in such an environment. Guidance and manufacturer’s declaration - Electromagnetic emissions CISPR 11... - Page 44 Group 2 Class A (With BLE Function) a) The equipment is suitable for use in Home Health Environments and Professional Health Care Environments limited to patient rooms and respiratory treatment facilities in hospital or clinics. The more restrictive acceptance limits of Group 1 Class B (CISPR 11) have been considered and applied.
- Page 45 RF communications equipment (transmitters) and the BPM32B can be requested from supplier using the contact information provided in this manual. However, it is advisable to keep the electromechanical aerosol equipment at an adequate distance of, at least, 0.5 m from mobile phones...
- Page 46 frequency 50 Hz or 60 Hz magnetic fields. a) The equipment is suitable for use in Home Health Environments and Professional Health Care Environments limited to patient rooms and respiratory treatment facilities in hospital or clinics. The more restrictive IMMUNITY acceptance limits have been considered and applied. b) Before modulation is applied.
-
Page 47: Explanation Of Symbols
Explanation of Symbols Symbol Definition The CE marking with the Registration Number of the Notified Body. This denotes the compliance of Regulation (EU) 2017/745 Medical Device Manufacturer... - Page 48 Authorized representative in the European Community Date of manufacture (YYYY-MM-DD or YYYY-MM) Batch code (YYMMWWWW) Serial number (YYMWWWXXXXX)
- Page 49 Keep dry Temperature limit Humidity limitation Atmospheric pressure limitation...
- Page 50 Caution Consult the instruction for use Disposal information: Should you wish to dispose of the article, do so in accordance with current regulations. Details are available from your local authority. WEEE 2012/19/EU Directives This product fulfilling the requirements of the RoHS Directive RoHS 2011/65/EU.
- Page 51 This product fulfilling the requirements of the REACH Directive EC 1907/2006 and its amendments, do not contain Substances of Very High Concern in concentration above REACH the limit of 0.1 %. No substance(s) is/are present in the parts of the product above the concentration of 0.1 % weight by weight.
- Page 52 This product meets the basic safety and essential performance requirements indicated in the IP22 conditioning test (protection against solid foreign objects of 12.5mm ∅ and greater and against vertically falling water drops when enclosure tiled up to 15°) The empty, completely flat batteries must be disposed of through specially designated collection boxes, recycling points or electronics retailers.
- Page 53 Distributor Model Number Country of Manufacturer Unique Device Identifier...
- Page 54 Keep away from sunlight Electronic IFU available at http://www.avita.com.tw...
