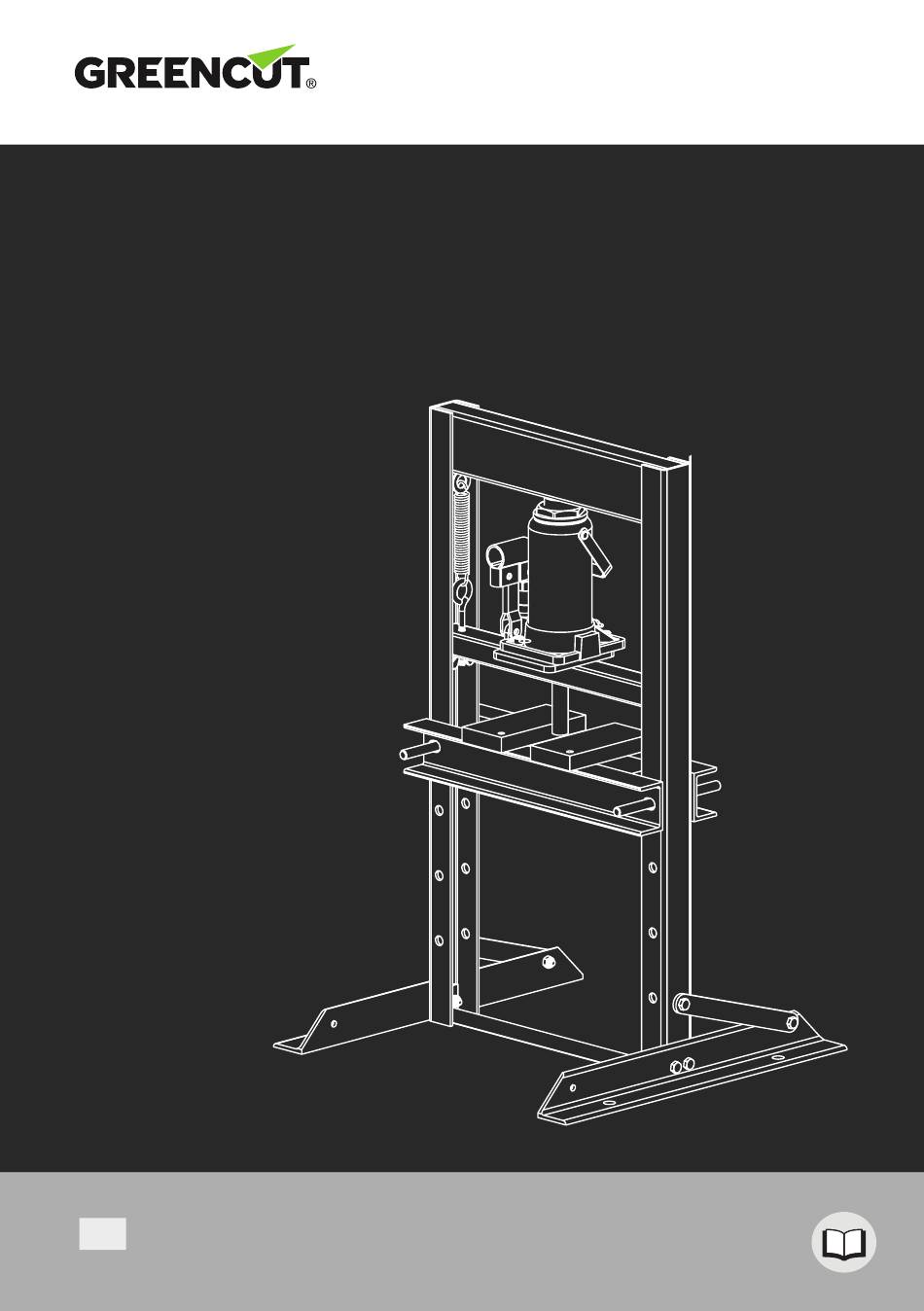

- Page 1 PRENSA PRE10000 Prensa Hidráulica de 10T Instruction manual...
-
Page 3: Table Of Contents
INDEX INTRODUCTION SAFETY RULES AND PRECAUTIONS WARNINGS GENERAL WORK AREA SAFETY PERSONAL SAFETY GENERAL USE AND CARE PRESS USE AND CARE GENERAL FUEL SAFETY GENERAL SERVICE INFORMATION DANGER WARNING SYMBOLS PRODUCT DESCRIPTION ABOUT YOUR PRODUCT DETAILED DESCRIPTION OF THE PRODUCT TECHNICAL DATA BOX CONTENTS ASSEMBLY... -
Page 4: Introduction
INTRODUCTION Thank you for choosing this GREENCUT product. We are sure you shall appreciate the quality and performance of this machine, which will facilitate your task for a long period of time. Remember that you can contact our Technical Support for any queries regarding assembly o maintenance, as well as for the resolution to any problems that may arise, and for the purchase of spare parts and/or accessories. -
Page 5: Warnings
WARNINGS • Read all safety warnings and all instructions. Failure to follow warnings and instructions may result in electric shock, fire and/or serious injury. • Never run a petrol engine in confined areas. • Do not operate the equipment in flammable or explosive environments, such as in the presence of flammable liquids, gases or dust. -
Page 6: General Use And Care
• If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards. GENERAL USE AND CARE • Do not force the equipment. Use the correct equipment for your application. The correct equipment will perform better and be safer within its design parameters. -
Page 7: General Service Information
• Do not smoke near fuel. • Always shut off the engine before refuelling. • Do not refuel a hot engine. • Open the fuel cap carefully to allow any pressure build-up in the tank to release slowly. • Always refuel in well ventilated areas. •... -
Page 8: Warning Symbols
WARNING SYMBOLS The warning icons on labels in this machine and/or in the manual indicate the necessary information for the safe use of the device. Warning: Danger Carefully read this manual before starting or using the machine. Danger! Danger of flying materials and objects. Beware of objects that can be discharged. - Page 9 Use protective non skid boots with protective steel. Use appropriate security gloves Wear head, eye and ear protection. Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice.
-
Page 10: Product Description
PRODUCT DESCRIPTION ABOUT YOUR PRODUCT This 10 ton hydraulic shop press has a heavy duty steel H-frame with support braces to prevent the frame from spreading under load. The shop press is engineered to be used for straightening, bending, holding, forming, pressing or other unique high pressure applications. Normal applications include installing bearings, bushings, gears, U joints, pulleys, ball joints, repairing engines &... -
Page 11: Technical Data
Maximum Load Capacity 10 Tonne Frame Powder Coated Steel Press Plates Powder Coated Steel Hydraulic Oil Type ISO VG 15 Piston Stroke 125mm Dimensions 500x500x800mm Wheigt 25,5Kg NOTE GREENCUT reserves the right to modify the specifications of the device without prior notice. -
Page 12: Box Contents
BOX CONTENTS Frame 10. Fasteners / Accessories / Tools: Foot (x2) Jack Plate Hook (x2) Frame Bottom Brace Jack Plate Spring (x2) Foot Brace (x2) Press Table Pin (x2) Hydraulic Jack M8 Wing Nut (x2) Jack Plate M8x25 Bolt (x4) Press Table M8x20 Bolt (x4) Work-Piece Support (2) -
Page 13: Assembly
ATTENTION Should there be any damaged or missing parts, please contact GREENCUT’s technical support. Do not use this product without having replaced the damaged or missing parts. Use of this product with either damaged or missing parts could result in serious personal injury to the operator. - Page 14 3. Attach the hydraulic jack (H) to the jack plate (I) using 2 M8x20 cap screws (J) and spring washers (K). Ensure that the jack is placed so that the handle is on he right-hand in relation to the arrow (AA) on the jack plate. Tighten the fasteners securely using the supplied Allen key.
- Page 15 6. Insert the press table pins (O) through a hole in the frame legs – one pin per frame leg and in the same hole so they are level. 7. Holding the press table (P) at an angle, place it between the frame legs, then rotate it so it is level and lower it onto the pins.
-
Page 16: Using The Product
USING THE PRODUCT ATTENTION Crush Hazard - Use extreme caution when operating the equipment. Keep hands and other body parts clear of the equipment and work pieces during operation. • Do NOT exceed the 10 tonne rated capacity. • Always use the press with the press table level. -
Page 17: Maintenance
MAINTENANCE ATTENTION Some maintenance activities described may be beyond the scope of some users. For procedures that you are no comfortable with or have the tools or experience for, have the unit serviced by a service centre or qualified technician. • Repair or replace non-serviceable components immediately –... -
Page 18: Troubleshooting
TROUBLESHOOTING ATTENTION Some maintenance activities described may be beyond the scope of some users. For procedures that you are not comfortable with or have the tools or experience for, or if problems persist after following all suggested actions, contact a service centre or qualified technician. -
Page 19: Recycling / Disposing
RECYCLING / DISPOSING When you decide to get rid of the machine, make sure to follow the local regulation. Protect the environment. Get rid of the machine taking care of the environment. Do not simply throw it away in the trash. Please separate plastic and steel to recycle. Petrol, used oil, oil/petrol mixtures, as well as objects stained with petrol (e.g.: cloths) must not be disposed of into the domestic waste, pipes, soil, rivers, lakes or the sea. - Page 20 Manual revisado en agosto de 2017...
