DIMENSIONI
CODICE
DESCRIZIONE / DESCRIPTION
/ CODE
SCD500193
STAFFA DONATELLO L. 440
SCD500197
SCD500194
STAFFA DONATELLO L. 500
SCD500198
SCD500195
STAFFA DONATELLO L. 560
SCD500199
SCD500196
STAFFA DONATELLO L. 650
SCD500200
MONTAGGIO
/ ASSEMBLY
2
/ DIMENSIONS
800
800
/ DONATELLO BRACKET L. 440
/ DONATELLO BRACKET L. 500
/ DONATELLO BRACKET L. 560
/ DONATELLO BRACKET L. 650

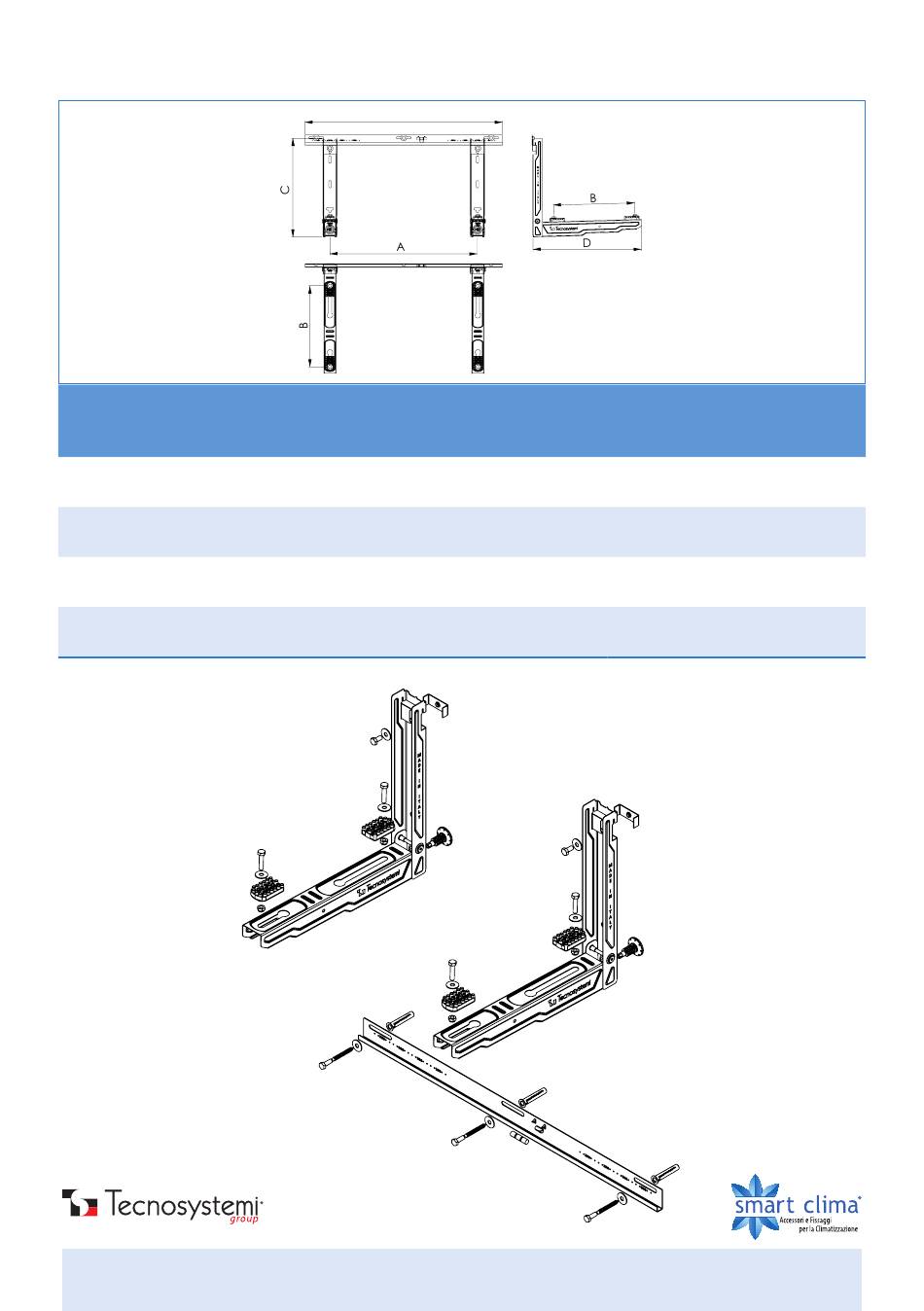

DIMENSIONI / DIMENSIONS
A B C
[mm] [mm] [mm]
350/750 180/330 400
350/750 230/390 400
350/750 270/450 400
350/750 340/540 400
PORTATA
D / LOAD
[mm] [kg]
440 110
500 130
560 130
650 130
