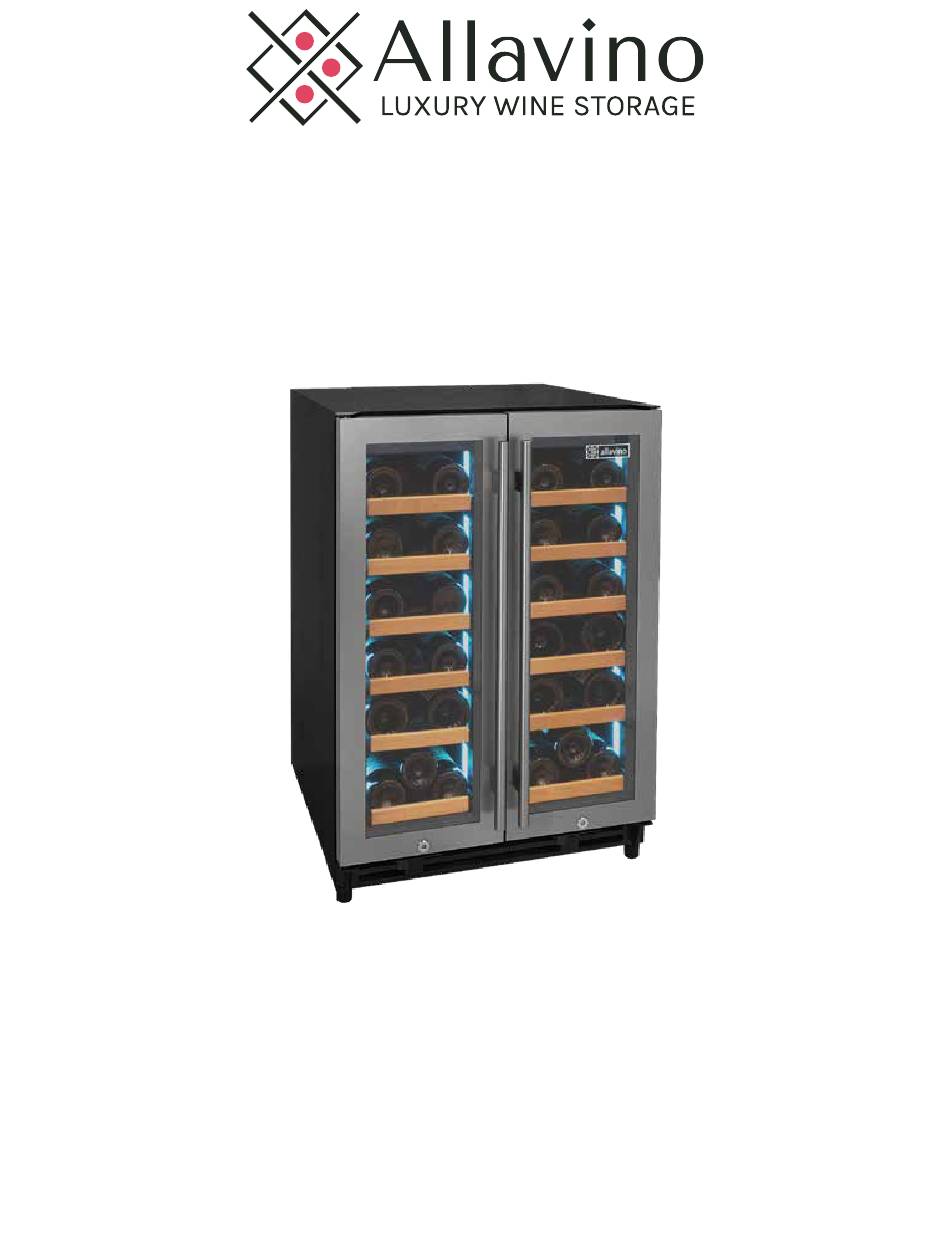

INSTRUCTION MANUAL

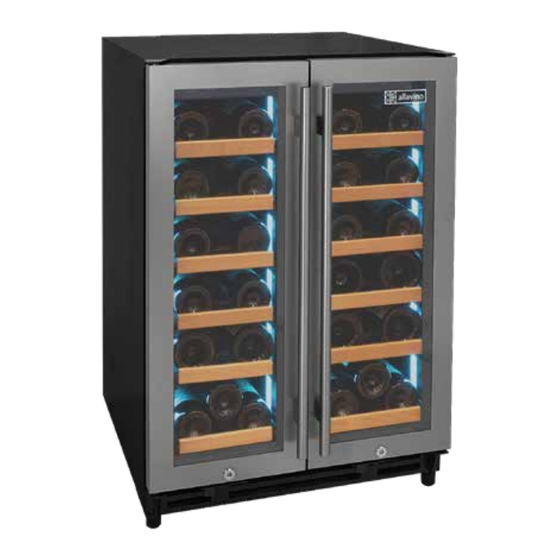

BUILT-IN WINE REFRIGERATOR WITH
STAINLESS STEEL FRENCH DOORS
MODEL: VSW3634FD-2S
BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS.
Allavino has a policy of continuous improvement on its products and
reserves the right to change materials and specifications without notice
ALLAVINO
8520 Miralani Dr., San Diego, CA 92126
www.allavino.com
1
1.888.980.4809
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Allavino VSW3634FD-2S
Summary of Contents for Allavino VSW3634FD-2S
- Page 1 STAINLESS STEEL FRENCH DOORS MODEL: VSW3634FD-2S BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS. Allavino has a policy of continuous improvement on its products and reserves the right to change materials and specifications without notice ALLAVINO 8520 Miralani Dr., San Diego, CA 92126...
-
Page 2: Table Of Contents
............................ Installation Instructions ............................ Handle Installation ............................ Operation Instructions ............................ Setting Temperature ......................................................Light Settings Induction of Opening the Door ............................ Racking Configuration ............................ 9-10 Care and Maintenance ............................ Troubleshooting ............................ Technical Specifications ............................ Warranty Information ............................ www.allavino.com 1.888.980.4809... -
Page 3: Diagram And Description
Diagram and Description • 1. Control Panel • 2. Wine shelves • 3. Front Ventilation Base • 4. Door hinge • 5. Adjustable feet • 6. Door handle • 7. Lock • 8. Door opening fan stop sensor www.allavino.com 1.888.980.4809... -
Page 4: Safety Tips
• California Proposition 65 Warning: This product may contain a substance known to the State of California to cause cancer, birth defects or other reproductive harm. Failure to heed these safety warnings may result in extensive product damage, serious personal injury, or death. www.allavino.com 1.888.980.4809... -
Page 5: Installation Instructions
• Step 1: Remove the box containg the handle and screws from the wine unit. • Step 2: Pull out a bit of the rubber gasket from the back side of the holes. • Step 3: Insert the screws through the holes and connect with the handle. www.allavino.com 1.888.980.4809... -
Page 6: Operation Instructions
LEFT RIGHT Your Allavino wine unit includes an operating panel on the front of the unit. The operating panel includes several features to operate and control the temperature of the wine refrigerator, including: ON/OFF – Turns the unit on or off, and it also works when shows the screen is locked –... -
Page 7: Setting Temperature
Setting Temperature This Allavino wine refrigerator has a wide enough temperature range to store red, white, or sparkling wine. Different varietals of wine require different temperature settings. Red wine is generally stored between 50 and 65 degrees Fahrenheit, while white wines are stored between 40 and 50 degrees Fahrenheit. White wine can be stored at red wine temperatures for a short period of time (less than three months), and flash chilled before serving. -
Page 8: Light Settings
Light Settings The Allavino wine refrigerator has 9 different color options and 5 different brightness levels to choose from. Color Options: C1=Red, C2=Orange, C3=Yellow, C4=Green, C5=Cyan, C6=Blue, C7=Purple, C8=White, and C9=Rotate All Colors Light Brightness: b1=20%, b2=40%, b3=60%, b4=80%, and b5=100% Factory default setting: Color: C9=All color rotation;... -
Page 9: Induction Of Opening The Door
Each zone has 6 shelves that can hold up to 3 standard size bottles for a maximum capacity of 36 wine bottles. The shelving was intelligently designed to accommodate various bottle sizes without affecting the overall capacity, and even large Pinot and Champagne bottles can be stored on the bottom shelf, making this ideal for any collection. www.allavino.com 1.888.980.4809... - Page 10 2 on the bottom shelf. They measure 12-1/4” tall with a 3-3/4” diameter and the shoulder tapers up from 5-1/2” to 7-3/4”. Most wine refrigerators this size would not be able to store any Cham- pagne bottles without removing a shelf. www.allavino.com 1.888.980.4809...
-
Page 11: Care And Maintenance
• Turn the adjustable leg up to the base to avoid damage. • Be sure the appliance stays secure in the upright position during transportation. • Protect the outside of the appliance with a blanket or similar item. www.allavino.com 1.888.980.4809... -
Page 12: Troubleshooting
ERROR CODE HH on left and right screen High-temperature alarm ERROR CODE LL on left and right screen Low-temperature alarm ERROR CODE DO on left and right screen Shows when door is open for 3 minutes and alarms www.allavino.com 1.888.980.4809... -
Page 13: Technical Specifications
Up to 36 Wine Bottles Dimensions 34.2” H x 23.4” W x 23.3” D (25.4 “ w/ handle) Weight 127 lbs. Voltage / Frequency 115v / 60 Hz Running Amps 1.20A Operating Temperature 39°F - 64°F Ambient Temperature 32°-100°F www.allavino.com 1.888.980.4809... -
Page 14: Warranty Information
WHAT IS COVERED LIMITED ONE-YEAR WARRANTY: For one year from the date of purchase by the original owner, Allavino will, at its option, repair or replace any part of the unit, which proves to be defective in material or workmanship under normal use. During this period Allavino will provide all parts and labor necessary to correct such defects free of charge, so long as the unit has been installed and operated in accordance with the written instructions in this manual. - Page 16 ALLAVINO 8520 Miralani Dr., San Diego, CA 92126 www.allavino.com 1.888.980.4809...
