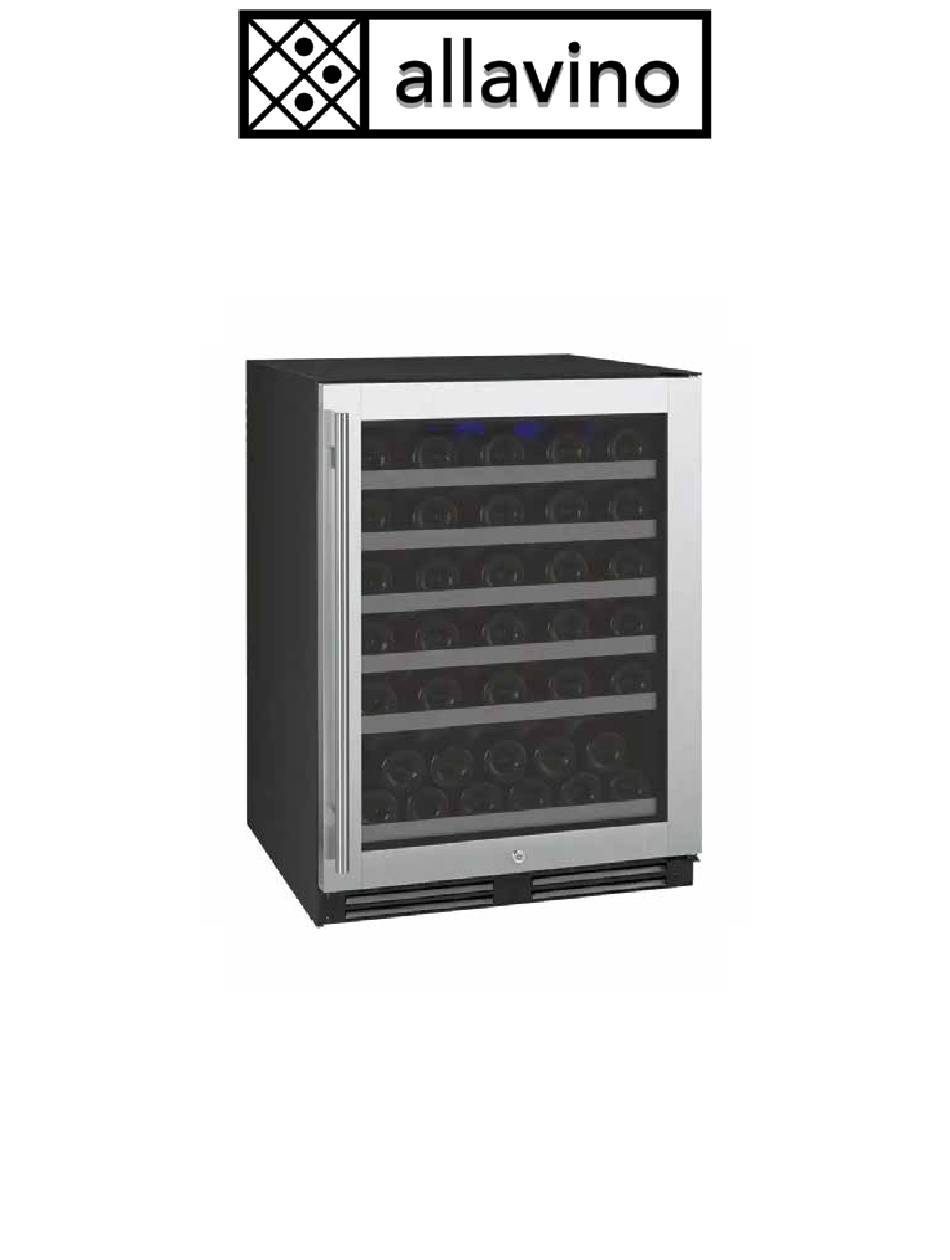

INSTRUCTION MANUAL
FLEXCOUNT II TRU-VINO BUILT-IN WINE COOLER
MODEL：VSWR56-1
BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS.
Allavino has a policy of continuous improvement on its products and
reserves the right to change materials and specifications without notice
ALLAVINO
8520 Miralani Dr., San Diego, CA 92126
www.allavino.com
1
1-888-980-4809
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Allavino FLEXCOUNT II
Summary of Contents for Allavino FLEXCOUNT II
- Page 1 FLEXCOUNT II TRU-VINO BUILT-IN WINE COOLER MODEL：VSWR56-1 BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS. Allavino has a policy of continuous improvement on its products and reserves the right to change materials and specifications without notice ALLAVINO 8520 Miralani Dr., San Diego, CA 92126...
-
Page 2: Table Of Contents
Diagram and Description ............................ Safety Tips ............................ Installation Instructions ............................ Handle Installation ............................ Operation Instructions ............................ Setting Temperature ............................ Racking Configuration ............................ Care and Maintenance ............................ Troubleshooting ............................ Technical Specifications ............................ 9-11 Energy Guide ............................ Warranty Information ............................ www.allavino.com 1-888-980-4809... -
Page 3: Diagram And Description
Diagram and Description 1. Control Panel 2. Sliding Shelves 3. Front Ventilation Base 4. Door Hinge 5. Adjustable Feet 6. Door Handle 7. Security Lock www.allavino.com 1-888-980-4809... -
Page 4: Safety Tips
California Proposition 65 Warning: This product contains a chemical or chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Failure to heed these safety warnings may result in extensive product damage, serious personal injury, or death. www.allavino.com 1-888-980-4809... -
Page 5: Installation Instructions
Step 1: Remove the box containing the handle and screws from the wine cellar. Step 2: Pull out a bit of the rubber gasket from the back side of the holes. Step 3: Insert the screws through the holes and connect with the handle. www.allavino.com 1-888-980-4809... -
Page 6: Operation Instructions
To prevent mold growth, leave the door open slightly, blocking it open if necessary. Setting Temperature This Allavino Wine Cellar has a wide enough temperature range to store red, white, or sparkling wine, depending on your preference. Different varietals of wine require different temperature settings. Red wine is generally stored between 50 and 65 degrees Fahrenheit, while white wines are stored between 40 and 50 degrees Fahrenheit. -
Page 7: Racking Configuration
The Allavino Wine Cellar has 5 shelves that can hold up to 9 bottles each and a bottom shelf that can hold 11 bottles for a maximum bottle capacity of 56 bottles. The maximum capacity can be reached with many different bottle sizes and is only affected when adding in larger Pinot or Champagne bottles. -
Page 8: Troubleshooting
The wine cellar is not on a level surface. The door will not close properly The wine cellar is not on a level surface. The gasket is dirty. The shelves are out of position. www.allavino.com 1-888-980-4809... -
Page 9: Technical Specifications
Up to 56 Bottles Dimensions 33.9" H x 23.4" W x 23.6" D (25.6" w/ handle) Weight 123.5 lbs. Voltage / Frequency 115v / 60 Hz Running Amps 0.9 A Operating Temperature 41°F - 64°F Maximum Ambient Temperature 90°F www.allavino.com 1-888-980-4809... - Page 10 1-888-980-4809...
- Page 11 1-888-980-4809...
-
Page 12: Energy Guide
1-888-980-4809... -
Page 13: Warranty Information
WHAT IS COVERED LIMITED ONE-YEAR WARRANTY: For one year from the date of purchase by the original owner, Allavino will, at its option, repair or replace any part of the unit, which proves to be defective in material or workmanship under normal use. During this period Allavino will provide all parts and labor necessary to correct such defects free of charge, so long as the unit has been installed and operated in accordance with the written instructions in this manual.
