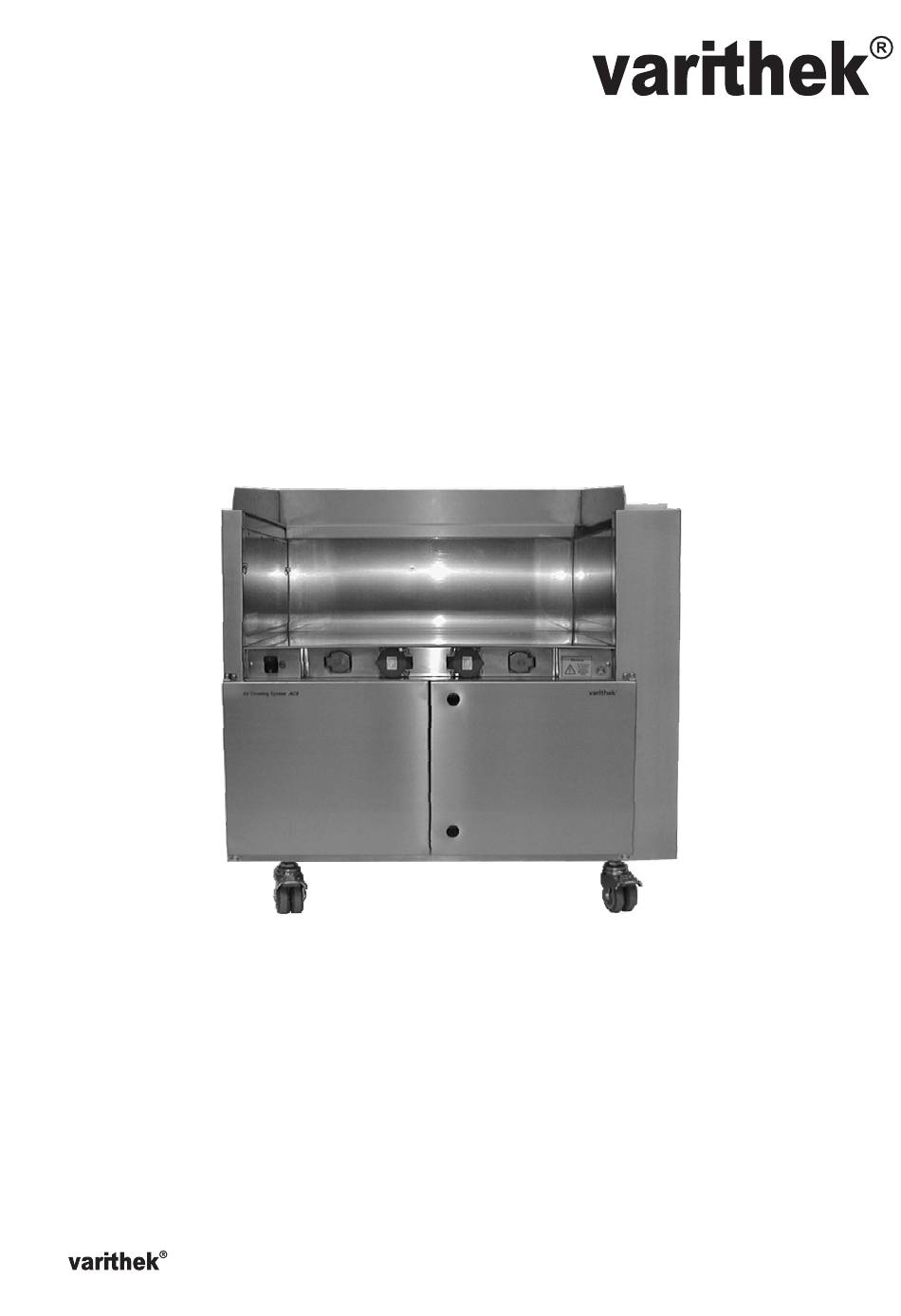

- Page 1 Operating Instructions Air Cleaning System ACS Type: acs 600 EasyClean, 800 EasyClean, 1000 EasyClean Please read carefully before use ® Fig.: varithek acs 1000 EasyClean The product innovation from Eisfink and Rieber...
- Page 2 73/23/EWG, Low-Voltage. The respective documents are on file with the manufacturer. Technical modifications reserved! Due to constant development, illustrations, functional steps and technical specifications may differ slightly. Manufacturer’s address EISFINK MAX MAIER GMBH & CO.KG Im Werkzentrum Weststadt Rheinlandstr. 11 D 71636 Ludwigsburg Fon: +49/7141/479-0 Fax: +49/7141/479-299 http://www.eisfink.de...
-
Page 3: Table Of Contents
Page 3 Air Cleaning System ACS Table of contents General Preliminary remarks Symbols for user instructions Laws, norms and guidelines Contents of delivery Instructions for the operator Guaranty Safety Proper use Improper use Product description Basic measurements and technical specifications General equipment Electrical equipment ®... -
Page 4: General
Page 4 Air Cleaning System ACS General Preliminary remarks The operating instructions were devised specifically for the Air Cleaning System ACS operating personnel. They contain important instructions for assembling, installing, operating and cleaning the system. The operating instructions are valid for all available ACS modules and their variants. The model type of the ACS module can be found in the delivery and ordering documents as well as on the type plate. -
Page 5: Contents Of Delivery
· suitable operating conditions. · Guaranty As a general principle, EISFINK’s “terms of business” are effective. Details of the guaranty are regulated therein. The guaranty only covers appliances used as directed (see following chapter “Safety”). -
Page 6: Safety
Page 6 Air Cleaning System ACS Safety Proper use The Air Cleaning System ACS is an extractor system, which, in combination with adequate and fitting ® cooking appliances (e.g. varithek functional cooking components), serves to remove cooking fumes and vapours wherever it is set up. For proper use of the fitted cooking elements, consult the respective operating instructions. -
Page 7: Product Description
Page 7 Air Cleaning System ACS Product description The Air Cleaning System ACS is an extractor system, which, in combination with adequate and fitting ® cooking appliances (e.g. varithek functional cooking components), serves to remove cooking fumes and vapours wherever it is set up. For proper use of the fitted cooking elements, see the respective operating instructions. -
Page 8: Electrical Equipment
Page 8 Air Cleaning System ACS Electrical equipment Model Number of sockets ACS 1000ec 2 x 230 V earthing-contact plugs 2 x 400 V CEE-plugs ACS 600ec, 800ec 1 x 230 V earthing-contact plugs 1 x 400 V CEE-plugs Power consumers Power input Fan motor unit max. -
Page 9: Transport / Installation / Assembly
Page 9 Air Cleaning System ACS Transport / Installation / Assembly The valid electrotechnical, fire prevention and local Surveyor’s Office regulations are to be observed during assembly and installation. Competent installation, operation and maintenance in compliance with these instructions are necessary in order to provide a trouble-free function and operating safety of the appliance. -
Page 10: Operation
Page 10 Air Cleaning System ACS Operation General safety instructions Caution! Danger of rolling over and tipping! When rolling the ACS module over uneven surfaces, you should be prepared for uncontrolled drifting. Do not let go of the module or let it roll by itself. Caution! Danger of being crushed! When changing the location it is important that no body parts come between the ACS module and any surrounding furniture, especially when rolling it into a recess. -
Page 11: Putting The Varithek ® Functional Cooking Components Into Operation
Page 11 Air Cleaning System ACS ® Putting the varithek functional cooking components into operation Make sure that the left interior side of the bay has been properly locked to the sides of the housing using the turning knobs. ® When using varithek functional cooking components, first fit the basic unit into the bay of the extractor module. - Page 12 Page 11a Air Cleaning System ACS ® Use the enclosed holding clamps to prevent varithek grills and deep grills from sliding out of the basic unit. Deep fryer in the ACS Air Cleaning System If a deep fryer FT 6 is to be used in the ACS 1000, the deep fryer must be inserted into a ®...
-
Page 13: Cleaning And Maintenance
Page 12 Air Cleaning System ACS Cleaning and Maintenance General Cleaning is especially important for facilities and appliances in which food is prepared or offered for sale. In order to maintain hygienic conditions, the operating personnel must master the chapter “Cleaning and Maintenance”. - Page 14 Page 13 Air Cleaning System ACS ® The left side wall of the bay can be opened for cleaning. For this purpose, the varithek basic units and respective functional elements must be removed from the bay and securely stowed. The left side panel is opened by turning the knobs counterclockwise and folding the side panel toward the middle of the appliance.
- Page 15 Page 14 Air Cleaning System ACS The deodorising filter cassettes are cleaned or desorbed in an oven or hot-air steamer. Remove the deodorising filter cassettes and place them in an oven or hot-air steamer. Desorption occurs using only hot air (not steam) at approx. 220°C over a period of about one hour. After desorption has occurred, the odorous substances are released from the filter and are contained in the hot-air steamer / oven.
-
Page 16: Routine Cleaning And Maintenance Of The Varithek
Page 15 Air Cleaning System ACS ® Routine cleaning and maintenance of the varithek functional cooking components The respective operating instructions must be followed, in particular the instructions about cleaning and maintenance. Caution! Danger of burns, cuts, and being crushed! When cleaning the system, use gloves that are appropriate for cleaning;... -
Page 17: Switching Off And Taking Breaks
Page 16 Air Cleaning System ACS Switching off and taking breaks Before turning off the ACS module for a longer period of time, pull the power supply cable out of the socket. This disconnects all the electrically connected functional elements from the power supply. The ACS module is switched off. -
Page 18: Troubleshooting
Manufacturer’s address EISFINK MAX MAIER GMBH & CO.KG Im Werkzentrum Weststadt Rheinlandstr. 11 D 71636 Ludwigsburg Fon: +49/7141/479-0 Fax: +49/7141/479-299... - Page 19 Seite 18 Air Cleaning System ACS line diagram ACS 600ec, 800ec, 1000ec...
-
Page 20: Wiring Diagram
Seite 19 Air Cleaning System ACS wiring diagram ACS 600ec, 800ec, 1000ec...
