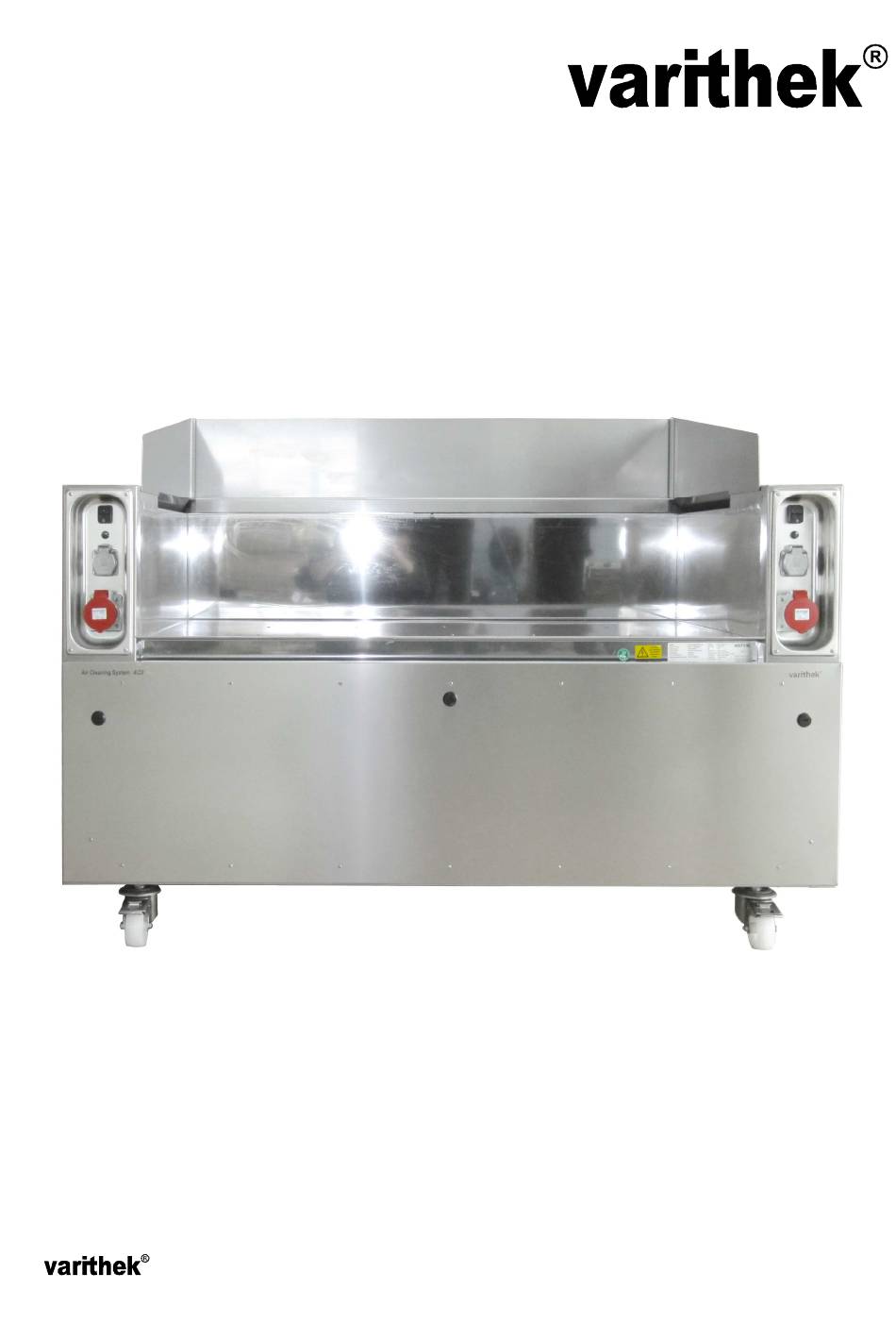

- Page 1 Bedienungsanleitung Preliminary Draft Air Cleaning System ACS Type: acs 1500d3 – 32A Please read instructions carefully before use Image acs 1500d3 Varithek acs 1500 d3 - The product innovation by Eisfink and Rieber...
- Page 2 We reserve the right to make technical changes! Due to continuous further development, illustrations, functional steps and technical data may deviate slightly. Manufacturer's address EISFINK MAX MAIER GMBH & CO.KG Im Werkzentrum Weststadt Rheinlandstr. 10 D 71636 Ludwigsburg, Germany Phone: +49/7141/479-0 Fax: +49/7141/479-299 http://www.eisfink.de...
-
Page 3: Table Of Contents
Page 3 Air Cleaning System ACS Contents General Preliminary remarks Symbols for user instructions Laws, standards, directives Scope of supply Instructions for operator Warranty Safety Use as per specifications Misuse Description of product Basic dimensions and technical data General equipment Electrical equipment ®... -
Page 4: General
Page 4 Air Cleaning System ACS General Preliminary remarks These operating instructions were specifically prepared for the staff operating the Air Cleaning System ACS. They contain important information on installation, assembly, operation, safety and cleaning of the system. These operating instructions are valid for all available ACS modules with edge extraction. For the relevant design of the ACS modules, refer to the shipping and order documentation or the specifications on the rating plate. -
Page 5: Laws, Standards, Directives
Warranty Generally, the "General Terms and Conditions" of EISFINK MAX MAIER GmbH & CO.KG shall apply. In these terms and conditions, the conditions of warranty claims are specified in detail. Warranty claims will only be accepted if the unit is used as per specifications (see following section... -
Page 6: Safety
Page 6 Air Cleaning System ACS Safety Use as per specifications The Air Cleaning System ACS is an extraction system which, in combination with adequate and ® dimensionally matching cooking units, e.g. varithek cooking components, is used for removing fumes and vapours at any location. -
Page 7: Description Of Product
Page 7 Air Cleaning System ACS Description of product The Air Cleaning System ACS is an extraction system which, in combination with adequate and ® dimensionally matching cooking units, e.g. varithek cooking components, is used for removing fumes and vapours at any location. For proper use of the installed cooking units, refer to the relevant operating instructions. - Page 8 Page 7a Air Cleaning System ACS body of CNS 18/10 with built-in control panel left + right Inspection cover, removable 2 fan motor units with connection cable 4 activated carbon filters 4 smell filter double cartridges -optionally- fabric filter 2 grease collection pans (2 parts) 2 cyclone filters (E-cyclone, 2 parts) Rear wall installation niche, removable Splash protection middle part, removable...
-
Page 9: Electrical Equipment
Page 8 Air Cleaning System ACS Electrical equipment Model Number of sockets ACS 1500 d3 2 x 230 V sockets with earthing contact 2 x 400 V-CEE sockets Electrical consumers Power consumption Fan motor unit max. 230 V ACS 1100 d3: 2 x 440 W ®... -
Page 10: Transport / Assembly / Installation
Page 9 Air Cleaning System ACS Transport / Assembly / Installation During assembly and installation, the applicable electro-technical, fire protection and local building control regulations shall be complied with. For a perfect function of the unit and operational safety, proper installation, operation and maintenance in accordance with these operating instructions are required. -
Page 11: Operation
Page 10 Air Cleaning System ACS Operation General safety instructions Warning! Risk of tilting and falling over! When moving the ACS module across uneven surfaces, uncontrolled movements must be expected. Do not let go of the unit while transporting it. Warning! Danger of jamming! When moving the unit to another location, ensure that no body parts are caught between the ACS module and adjacent furniture, in particular when pushing the unit into a niche. -
Page 12: Commissioning Varithek ® Cooking Components 11 + 11A
Page 11 Air Cleaning System ACS ® Commissioning of varithek cooking components Ensure that the exhaust air ducts at the inner front of the installation niche are fixed properly. ® If varithek cooking components are used, first place the system carriers in the installation niche of the extraction module. - Page 13 Page 11a ® In case of varithek grill plates and grill-roasters in system carrier, use the supplied fixing clamp which prevents the grill plate from slipping out of the system carrier. Deep-fryer in ACS Air Cleaning System ® If a deep-fryer FT 6 is used in ACS 1500 d3, it must be installed in a varithek tabletop system carrier AST 255 and fixed with an insertion mask EM AST FT 6.
-
Page 14: Cleaning And Maintenance
Page 12 Air Cleaning System ACS Cleaning and maintenance General Cleaning is particularly important for equipment and units used for preparing and/or serving food. For this reason, the operating staff must be familiar with the section "Cleaning and maintenance" in order to ensure hygienic conditions. - Page 15 Page 13 Air Cleaning System ACS Cleaning of filter area Ensure that the ACS module is disconnected from power supply. To clean the filter area, open the inspection flap using a wide flat-blade screwdriver by turning the locking buttons by 90° in clockwise direction. Warning! Risk of injury! Never open the flap of the extraction module while the unit is switched on! Risk of injury from extraction unit fan.
- Page 16 Page 14 Air Cleaning System ACS Smell filter double cartridge (zeolite filter) The zeolite filter inserted in the lower floor is used for smell absorption. Its effect depends on the type of vapours and their grease contents. In order to obtain optimum smell absorption at all times, we recommend cleaning (technically: desorbing) the filter after approx.
-
Page 17: Regular Cleaning And Maintenance Of Varithek
Page 15 Air Cleaning System ACS ® Regular cleaning and maintenance of varithek cooking components Always comply with the relevant operating instructions, in particular with the instructions on cleaning and maintenance given in such operating instructions. Warning! Risk of burns, cutting and jamming! When cleaning the system, use gloves suitable for cleaning;... -
Page 18: End Of Operation And Interruption Of Operation
Page 16 Air Cleaning System ACS End of operation and interruption of operation Before decommissioning the ACS module for an extended period of time, unplug the connection cable. This ensures that all electrical elements are disconnected from the power supply. The ACS module is switched off. -
Page 19: Faults And Possible Causes
Filter components clogged Clean filters Module can only be moved Casters locked Release locks with difficulty Manufacturer's address EISFINK MAX MAIER GMBH & CO.KG Im Werkzentrum Weststadt Rheinlandstr. 10 D 71636 Ludwigsburg, Germany Phone: +49/7141/479-0 Fax: +49/7141/479-299... - Page 20 Page 18 Air Cleaning System ACS ® varithek Circuit diagram ACS 1100 d3...
-
