Selection Operation
SERIES CRA112
Setpoint Temperature Controller
24V
—
+
A
+
B
C
+
Series CRA112
LVD 2006/95/EC
EMC 2004/108/EC
RoHS 2002/95/EEC
Ambient temp:
23°F to 131°F (-5°C to 55°C)
Flow temp. range:
41°F to 200°F (5°C to 95°C)
Power supply:
24 ± 10%, 60 Hz
Power consumption:
3VA
Max run time at max speed:
30 seconds
Weight:
2 lbs (0,9 kg)
Torque:
53.1 in.lbs (6 Nm)
Enclosure rating:
NEMA 2 (IP41)
Mountable to ESBE 3MG, 4MG, Type G and VRG valves up to 2"
Start up
1. Set the required rotation
of the controller by pushing
the rocker to the right for
clockwise opening or left for
counter clockwise opening (A).
2. Keep the rocker in the
desired direction and connect
power (B).
3. Wait 2 seconds before
releasing the rocker (C), the
desired controller rotation
is now set.
Temperature Sensor Installation
Wrap the sensor
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ESBE CRA112 Series
Summary of Contents for ESBE CRA112 Series

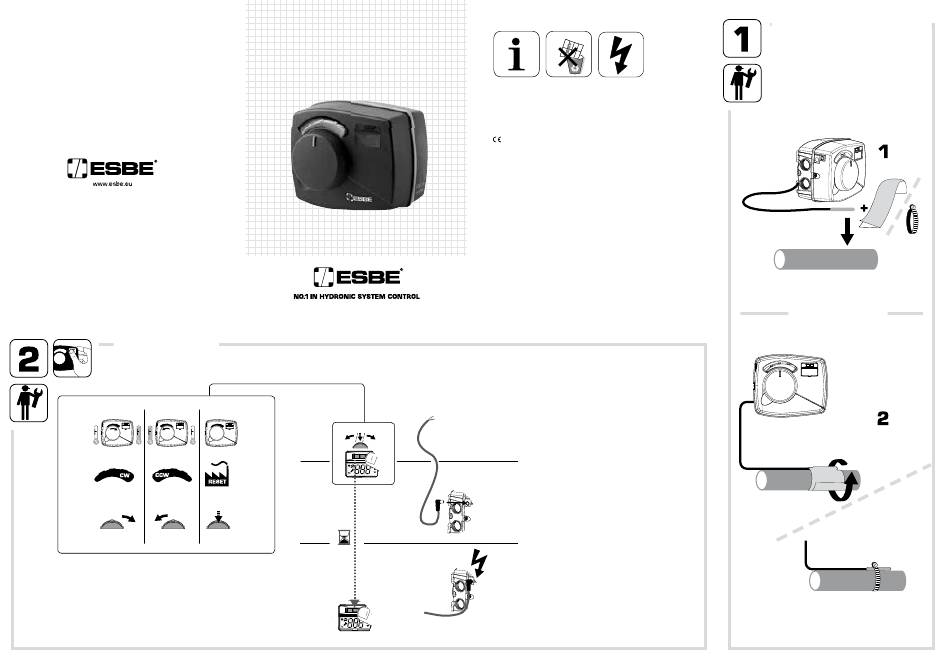

- Page 1 Torque: 53.1 in.lbs (6 Nm) Enclosure rating: NEMA 2 (IP41) Mountable to ESBE 3MG, 4MG, Type G and VRG valves up to 2" Wrap the sensor Mtrl.nr. 9814 09 32 Ritn.nr. 8419 utg. A • Rev. 1506 Selection Operation Start up 1.
- Page 2 Maximum Temperature Limitation Default: 1200F (490C) °F ° = M A X Maximum temperature Max°F setting: 2000F (950C) Return to Setpoint Display — 4 seconds M AX 20 seconds 4 seconds — — — — — Wait Press and hold Press Adjust Press...
- Page 3 Changing of Setpoint, Primary T °F — — — Adjust Press Wait °F / °C Temperature Unit Display 10 seconds — — — — — — — Press Press and hold Wait Scroll Press Adjust...
- Page 4 Secondary Temperature Setpoint (activated by external signal) Remove power to the actuator! Externally Wired Relay Changing of Setpoint Secondary Temperature — — — Max 100 Ω Adjust Press Wait Changing of Setpoint Primary Temperature — — — Adjust Press Wait...
